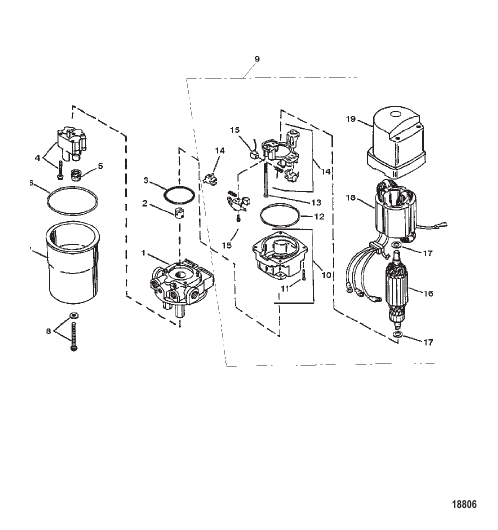

HYDRAULIC PUMP ASSEMBLY (III-IV-V) (OILDYNE)
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 818161A4 |
НАСОС В СБОРЕ Гидравлический (OILDYNE) PUMP ASSEMBLY Hydraulic (OILDYNE) |
1 | superseded |
| 1 | 811491 |
ADAPTER |
1 | superseded |
| 10 | 17632 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ (With Bearing) END CAP ASSEMBLY (With Bearing) |
1 | superseded |
| 11 | 17626 |
ВИНТ SCREW |
4 | discontinued |
| 12 | 17625 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 13 | 17621 |
ВИНТ SCREW |
2 | discontinued |
| 14 | 17633 |
КОМПЛЕКТ ДЕРЖАТЕЛЯ Brush HOLDER KIT Brush |
1 | discontinued |
| 15 | 17631A1 |
КОМПЛЕКТ ЩЕТКИ BRUSH KIT |
1 | discontinued |
| 16 | 17623 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 17 | 17653 |
ШАЙБА Thrust WASHER Thrust |
2 | discontinued |
| 18 | 17624 |
СТАНИНА В СБОРЕ FIELD AND FRAME ASSEMBLY |
1 | discontinued |
| 19 | 17622 |
КРЫШКА В СБОРЕ (With Bearing) COVER ASSEMBLY (With Bearing) |
1 | discontinued |
| 2 | 89493 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | superseded |
| 3 | 89498 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Motor End O-RING Motor End |
1 | |
| 4 | 811492 |
НАСОС (Includes Screws) PUMP (Includes Screws) |
1 | superseded |
| 5 | 89496 |
ФИЛЬТР FILTER |
2 | |
| 6 | 89497 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Reservoir End O-RING Reservoir End |
1 | |
| 7 | 41219 |
РЕЗЕРВУАР RESERVOIR |
1 | superseded |
| 8 | 811493 |
КОМПЛЕКТ ВИНТОВ SCREW KIT |
1 | |
| 9 | 17649 |
СТАРТЕР MOTOR |
1 | superseded |
| NS | 812498A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка Pressure Relief VALVE KIT Relief Pressure Relief |
1 |
