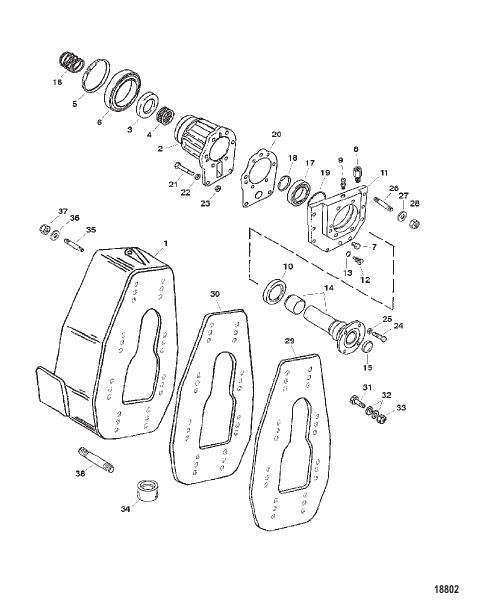

STANDOFF BOX KIT
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 43460A1 |
КОМПЛЕКТ ПРОСТАВОЧНОГО БЛОКА (CONVERSION) STANDOFF KIT (CONVERSION) |
1 | superseded |
| - | 43463A4 |
КОМПЛЕКТ ПРОСТАВОЧНОГО БЛОКА (COMPLETE) STANDOFF KIT (COMPLETE) |
1 | discontinued |
| 1 | 43463A1 |
ПРОСТАВОЧНЫЙ БЛОК В СБОРЕ STANDOFF BOX ASSEMBLY |
1 | discontinued |
| 10 | 52499 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | discontinued |
| 11 | 434581 |
ПЛАСТИНА Driveshaft Extension PLATE Driveshaft Extension |
1 | discontinued |
| 12 | 67892A1 |
КОМПЛЕКТ ФИТИНГОВ Магнитный, пробка горловины для заполнения/слива (Magnetic) FITTING KIT Magnetic, Plug Fill/Drain (Magnetic) |
1 | superseded |
| 13 | 19183 |
ШАЙБА Волокна Drain Plug WASHER Fiber Drain Plug |
1 | superseded |
| 14 | 52505A2 |
ВАЛ В СБОРЕ Driveshaft Extension SHAFT ASSEMBLY Driveshaft Extension |
1 | discontinued |
| 15 | 47463 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА Expansion EXPANSION PLUG Expansion |
1 | |
| 16 | 47755 |
ПРУЖИНА SPRING |
1 | |
| 17 | 47470 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 18 | 52502 |
КОЛЬЦО Snap RING Snap |
1 | |
| 19 | 49264A1 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | discontinued |
| 2 | 817388A1 |
КОРПУС В СБОРЕ Bearing Support HOUSING ASSEMBLY Bearing Support |
1 | discontinued |
| 20 | 52501 |
ПРОКЛАДКА GASKET |
1 | |
| 21 | 56393 |
ВИНТ (0.437-20 x 1.75) SCREW (.437-20 x 1.75) |
2 | |
| 21 | 32515 |
ВИНТ (0.437-20 x 2.50) SCREW (.437-20 x 2.50) |
6 | superseded |
| 22 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
16 | |
| 23 | 35053 |
ГАЙКА (0.437-20) NUT (.437-20) |
8 | superseded |
| 24 | 60106 |
ВИНТ (1.25") (.437-20 x 1.250) SCREW (1.25 In) (.437-20 x 1.250) |
4 | discontinued |
| 25 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
4 | |
| 26 | 97008 |
ШПИЛЬКА (.375-24 x 2.065) STUD (.375-24 x 2.065) |
6 | superseded |
| 27 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
6 | superseded |
| 28 | 34932 |
ГАЙКА (.375-24) NUT (.375-24) |
6 | superseded |
| 29 | 43460 |
ПЛАСТИНА Transom PLATE Transom |
1 | superseded |
| 3 | 817392 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | |
| 30 | 43527 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 31 | 677551 |
ВИНТ (0.500-20 x 4.500) SCREW (.500-20 x 4.500) |
8 | superseded |
| 32 | 54012 |
ШАЙБА (0.530 x 0.870 x 0.105), нержавеющая сталь WASHER (.530 x .870 x .105) Stainless Steel |
16 | superseded |
| 33 | 816670 |
ГАЙКА (.500-20) NUT (.500-20) |
8 | superseded |
| 34 | 43489 |
ПРОСТАВКА Steering Lever Replace SPACER Steering Lever Replace |
1 | discontinued |
| 35 | 43449 |
ШПИЛЬКА Gimbal Housing STUD Gimbal Housing |
8 | discontinued |
| 36 | 54012 |
ШАЙБА (0.530 x 0.870 x 0.105), нержавеющая сталь WASHER (.530 x .870 x .105) Stainless Steel |
8 | superseded |
| 37 | 816670 |
ГАЙКА (.500-20) NUT (.500-20) |
8 | superseded |
| 38 | 434701 |
ШПИЛЬКА Bell Housing To Steering Bracket STUD Bell Housing To Steering Bracket |
1 | discontinued |
| 4 | 814653 |
БЛОК ПОДШИПНИКА Игольчатые ролики BEARING ASSEMBLY Needle Rollers |
1 | superseded |
| 5 | 52503 |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 6 | 52507 |
КОЛЬЦО Positioning RING Positioning |
1 | discontinued |
| 7 | 36382 |
ФИТИНГ (0.250-18 x 0.62), латунь Pipe FITTING (.250-18 x .62) Brass Pipe |
1 | |
| 8 | 28586 |
ФИТИНГ Переходник FITTING Adapter |
1 | |
| 9 | 47902 |
ФИТИНГ Breather FITTING Breather |
1 |
