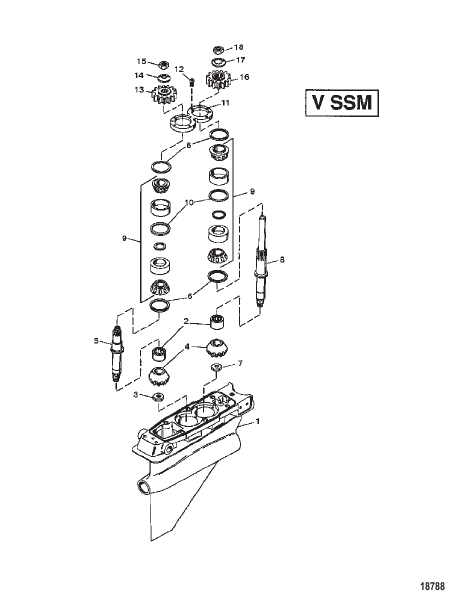

GEAR HOUSING ASSEMBLY (DRIVESHAFT) (V SSM)
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9849A9 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | discontinued |
| 10 | 39816 |
ПРОСТАВКА SPACER |
2 | |
| 11 | 19326 |
ФИКСАТОР RETAINER |
1 | superseded |
| 12 | 39826 |
ВИНТ (0.313-18 x 1.00) SCREW (.313-18 x 1.00) |
7 | discontinued |
| 13 | 18987 |
ПЕРЕДАЧА Spur (Rear) GEAR Spur (Rear) |
1 | discontinued |
| 14 | 19479 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 61315 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 16 | 18986 |
ПЕРЕДАЧА Spur (Front) GEAR Spur (Front) |
1 | discontinued |
| 17 | 19474 |
ШАЙБА WASHER |
1 | superseded |
| 18 | 19475 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 2 | 19480 |
ПОДШИПНИК Roller BEARING Roller |
2 | superseded |
| 3 | 19328 |
ГАЙКА (Special) NUT (Special) |
1 | |
| 4 | 19329A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 4 | 19330A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.00:1 RATIO) |
1 | discontinued |
| 4 | 19332A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.125:1 RATIO) |
1 | superseded |
| 4 | 19333A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.125:1 RATIO) |
1 | superseded |
| 5 | 19305 |
ВЕДУЩИЙ ВАЛ (Rear) DRIVESHAFT (Rear) |
1 | discontinued |
| 6 | 39808A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 7 | 19327 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 8 | 19304 |
ВЕДУЩИЙ ВАЛ (Front) (POLYGON) DRIVESHAFT (Front) (POLYGON) |
1 | discontinued |
| 8 | 822111 |
ВЕДУЩИЙ ВАЛ (Front) (SPLINED) DRIVESHAFT (Front) (SPLINED) |
1 | discontinued |
| 9 | 35990A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
2 | discontinued |
