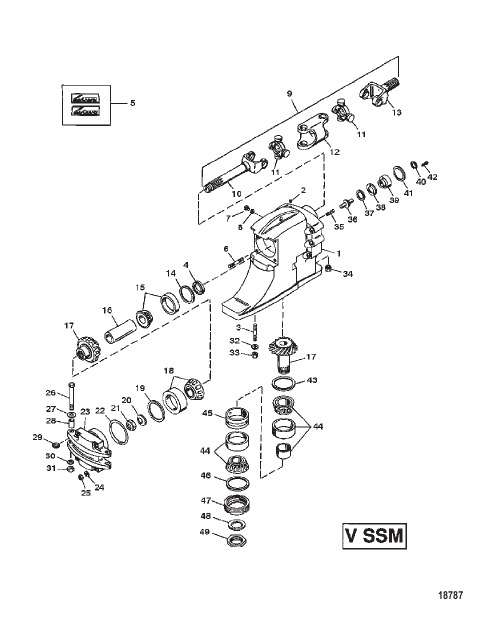

DRIVESHAFT HOUSING AND GEAR ASSY (V SSM)
Parts (63)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9806A2 |
КОРПУС В СБОРЕ Карданный вал HOUSING ASSEMBLY Driveshaft |
1 | discontinued |
| 10 | 44271 |
ВИЛКА (Driven End) YOKE (Driven End) |
1 | discontinued |
| 11 | 48153 |
КРЕСТОВИНА И ПОДШИПНИК В СБОРЕ CROSS AND BEARING ASSEMBLY |
2 | superseded |
| 12 | 63575 |
ГНЕЗДО SOCKET |
1 | superseded |
| 13 | 44253 |
ВИЛКА (Driving End) YOKE (Driving End) |
1 | discontinued |
| 14 | 36178A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | superseded |
| 15 | 39908A1 |
ПОДШИПНИК В СБОРЕ Конический ролик BEARING ASSEBMLY Tapered Roller |
1 | superseded |
| 16 | 47305 |
ПРОСТАВКА SPACER |
1 | superseded |
| 17 | 18166A2 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.00:1 RATIO) (POLYGON DRIVESHAFT) GEAR SET (Pinion and Drive) (1.00:1 RATIO) (POLYGON DRIVESHAFT) |
1 | superseded |
| 17 | 18878A2 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.18:1 RATIO) (POLYGON DRIVESHAFT) GEAR SET (Pinion and Drive) (1.18:1 RATIO) (POLYGON DRIVESHAFT) |
1 | superseded |
| 17 | 18880A2 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.25:1 RATIO) (POLYGON DRIVESHAFT) GEAR SET (Pinion and Drive) (1.25:1 RATIO) (POLYGON DRIVESHAFT) |
1 | superseded |
| 17 | 18882A2 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.33:1 RATIO) (POLYGON DRIVESHAFT) GEAR SET (Pinion and Drive) (1.33:1 RATIO) (POLYGON DRIVESHAFT) |
1 | superseded |
| 17 | 18884A2 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.40:1 RATIO) (POLYGON DRIVESHAFT) GEAR SET (Pinion and Drive) (1.40:1 RATIO) (POLYGON DRIVESHAFT) |
1 | superseded |
| 17 | 18886A2 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.50:1 RATIO) (POLYGON DRIVESHAFT) GEAR SET (Pinion and Drive) (1.50:1 RATIO) (POLYGON DRIVESHAFT) |
1 | superseded |
| 17 | 818653A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.00:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.00:1 RATIO) (SPLINED DRIVESHAFT) |
1 | discontinued |
| 17 | 818654A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.18:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.18:1 RATIO) (SPLINED DRIVESHAFT) |
1 | discontinued |
| 17 | 818655A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.25:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.25:1 RATIO) (SPLINED DRIVESHAFT) |
1 | discontinued |
| 17 | 847823A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.31:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.31:1 RATIO) (SPLINED DRIVESHAFT) |
1 | discontinued |
| 17 | 818656A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.33:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.33:1 RATIO) (SPLINED DRIVESHAFT) |
1 | superseded |
| 17 | 818657A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.40:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.40:1 RATIO) (SPLINED DRIVESHAFT) |
1 | discontinued |
| 17 | 847825A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.44:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.44:1 RATIO) (SPLINED DRIVESHAFT) |
1 | discontinued |
| 17 | 848150A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.50:1 RATIO) (SPLINED DRIVESHAFT) GEAR SET (Pinion and Drive) (1.50:1 RATIO) (SPLINED DRIVESHAFT) |
1 | superseded |
| 18 | 34804A3 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Tapered Roller |
1 | superseded |
| 19 | 34822A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 2 | 56800 |
ПРОБКА Труба (0.0625-27) PLUG Pipe (.0625-27) |
1 | |
| 20 | 53212 |
ШАЙБА WASHER |
1 | discontinued |
| 21 | 90068T |
ГАЙКА (1.00-14) NUT (1.00-14) |
1 | superseded |
| 22 | 47291 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 23 | 12702 |
КРЫШКА (Rear) COVER (Rear) |
1 | superseded |
| 24 | 540121 |
ШАЙБА (0.530 x 0.880 x 0.104) 630, нержавеющая сталь WASHER (.530 x .880 x .104) 630 Stainless Steel |
4 | superseded |
| 25 | 816670 |
ГАЙКА (.500-20) NUT (.500-20) |
4 | superseded |
| 26 | 677551 |
ВИНТ (0.500-20 x 4.500) SCREW (.500-20 x 4.500) |
2 | superseded |
| 27 | 540121 |
ШАЙБА (0.530 x 0.880 x 0.104) 630, нержавеющая сталь WASHER (.530 x .880 x .104) 630 Stainless Steel |
2 | superseded |
| 28 | 85322 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 29 | 85321 |
ПРОСТАВКА SPACER |
2 | superseded |
| 3 | 57985 |
ШПИЛЬКА (2.810) STUD (2.810) |
6 | |
| 30 | 24501 |
ШАЙБА WASHER |
2 | discontinued |
| 31 | 816670 |
ГАЙКА (.500-20) NUT (.500-20) |
2 | superseded |
| 32 | 18045 |
ШАЙБА WASHER |
6 | superseded |
| 33 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
6 | |
| 34 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
1 | |
| 35 | 48442 |
ПРУЖИНА SPRING |
1 | discontinued |
| 36 | 48219 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 37 | 48452 |
СЧЕТВЕРЕННОЕ КОЛЬЦО QUAD RING |
1 | |
| 38 | 669251 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 39 | 12701A1 |
НАПРАВЛЯЮЩАЯ КЛАПАНА В СБОРЕ VALVE GUIDE ASSEMBLY |
1 | discontinued |
| 4 | 38105 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 40 | 66301 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 41 | 33145 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.984 x 0.139) O-RING (1.984 x .139) |
1 | superseded |
| 42 | 56786 |
ВИНТ (№8-32 x .750) SCREW (#8-32 x .750) |
2 | discontinued |
| 43 | 19032A1 |
НАБОР ПРОКЛАДОК (.002 THRU .035 THICK) SHIM SET (.002 THRU .035 THICK) |
AR | |
| 43 | 19032A2 |
НАБОР ПРОКЛАДОК (.036 THRU .048 THICK) SHIM SET (.036 THRU .048 THICK) |
AR | |
| 44 | 19182A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | superseded |
| 45 | 18998 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 46 | 18997 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 47 | 816230 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 48 | 19066 |
ШАЙБА WASHER |
1 | superseded |
| 49 | 19039 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 5 | 14489A87 |
НАБОР НАКЛЕЕК DECAL SET |
1 | superseded |
| 6 | 13208 |
ШПИЛЬКА STUD |
4 | discontinued |
| 7 | 14834 |
ВИНТ (0.735-16) Vent (Magnetic) SCREW (.735-16) Vent (Magnetic) |
1 | superseded |
| 8 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 9 | 44253A1 |
УНИВЕРСАЛЬНЫЙ ШАРНИР В СБОРЕ UNIVERSAL JOINT ASSEMBLY |
1 | superseded |
