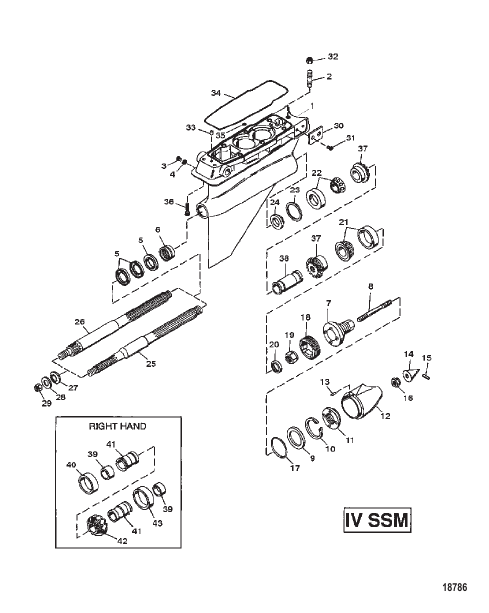

GEAR HOUSING ASSEMBLY (PROPSHAFT) (IV SSM)
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8509A13 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | discontinued |
| 1 | 9295A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | superseded |
| 10 | 35128 |
КОЛЬЦО Retaining RING Retaining |
1 | |
| 11 | 39803 |
КРЫШКА COVER |
1 | discontinued |
| 12 | 11353 |
НОСОВОЙ ОБТЕКАТЕЛЬ NOSE CONE |
1 | discontinued |
| 13 | 30282 |
ШТИФТ PIN |
1 | discontinued |
| 14 | 98036 |
ПРОБКА Nose Cone CAP Nose Cone |
1 | discontinued |
| 15 | 65700 |
ПРОБКА PLUG |
1 | |
| 16 | 22339 |
ГАЙКА (.625-18) NUT (.625-18) |
1 | superseded |
| 17 | 39828 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 18 | 53060 |
ГАЙКА NUT |
1 | discontinued |
| 19 | 39825 |
ГАЙКА (1.250-12) NUT (1.250-12) |
1 | |
| 2 | 579861 |
ШПИЛЬКА (2.810) STUD (2.810) |
1 | superseded |
| 20 | 42262 |
ШАЙБА WASHER |
1 | superseded |
| 21 | 39772A1 |
ПОДШИПНИК Roller BEARING Roller |
1 | superseded |
| 22 | 39770A1 |
ПОДШИПНИК Roller BEARING Roller |
1 | superseded |
| 23 | 39809A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 24 | 39818 |
ШАЙБА WASHER |
1 | discontinued |
| 25 | 85187 |
ВАЛ ГРЕБНОГО ВИНТА (1.370 OD) PROPELLER SHAFT (1.370 OD) |
1 | superseded |
| 26 | 12049 |
ВАЛ ГРЕБНОГО ВИНТА (1.750 OD) PROPELLER SHAFT (1.750 OD) |
1 | discontinued |
| 27 | 39820 |
ШАЙБА WASHER |
1 | |
| 28 | 39817 |
ШАЙБА Особое – нержавеющая сталь WASHER Special - Stainless Steel |
1 | |
| 29 | 39907 |
ГАЙКА (1.00-14) NUT (1.00-14) |
1 | superseded |
| 3 | 79953 |
ВИНТ (0.375-16 x 0.250) Vent SCREW (.375-16 x .250) Vent |
1 | superseded |
| 30 | 113931 |
ИЗНОСОСТОЙКАЯ НАКЛАДКА WEAR PAD |
2 | discontinued |
| 31 | 11601 |
ВИНТ (0.312-18 x 0.750), нержавеющая сталь SCREW (.312-18 x .750) Stainless Steel |
4 | |
| 32 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
1 | |
| 33 | 20033 |
ШТИФТ Штифт Locating PIN Dowel Locating |
2 | superseded |
| 34 | 120001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 35 | 36390 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
6 | |
| 36 | 873702 |
ВИНТ (0.500-13 x 3.00) SCREW (.500-13 x 3.00) |
2 | discontinued |
| 37 | 16768A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.00:1 RATIO) |
1 | discontinued |
| 37 | 78095A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.125:1 RATIO) |
1 | discontinued |
| 38 | 53070 |
ПРОСТАВКА (LH GEAR SET) SPACER (LH GEAR SET) |
1 | discontinued |
| 39 | 53067 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
2 | discontinued |
| 4 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 40 | 53068 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
1 | discontinued |
| 41 | 91846 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
2 | discontinued |
| 42 | 16769A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 42 | 78096A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.125:1 RATIO) |
1 | discontinued |
| 43 | 53066 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
1 | discontinued |
| 5 | 19473 |
УПЛОТНЕНИЕ Oil SEAL Oil |
3 | |
| 6 | 39832 |
ПОДШИПНИК Roller BEARING Roller |
1 | superseded |
| 7 | 53061 |
АНКЕР Stud ANCHOR Stud |
1 | discontinued |
| 8 | 530641 |
ШПИЛЬКА (7.280) STUD (7.280) |
1 | discontinued |
| 9 | 39821 |
ШАЙБА WASHER |
1 | discontinued |
