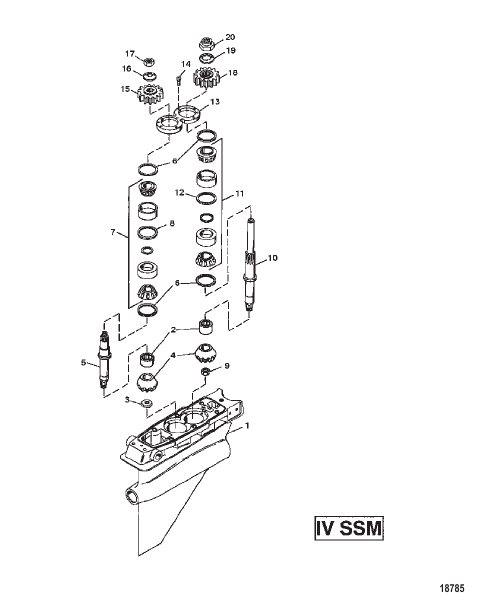

GEAR HOUSING ASSEMBLY (DRIVESHAFT) (IV SSM)
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8509A13 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | discontinued |
| 1 | 9295A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | superseded |
| 10 | 11352 |
ВЕДУЩИЙ ВАЛ (Front) DRIVESHAFT (Front) |
1 | discontinued |
| 11 | 35990A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | discontinued |
| 12 | 39816 |
ПРОСТАВКА SPACER |
1 | |
| 13 | 39804 |
ФИКСАТОР RETAINER |
1 | superseded |
| 14 | 39826 |
ВИНТ (0.313-18 x 1.00) SCREW (.313-18 x 1.00) |
7 | discontinued |
| 15 | 12352 |
ПЕРЕДАЧА Spur (Driven End) GEAR Spur (Driven End) |
1 | superseded |
| 16 | 39820 |
ШАЙБА WASHER |
1 | |
| 17 | 53062 |
ГАЙКА (32 THREADS PER INCH) NUT (32 THREADS PER INCH) |
1 | discontinued |
| 17 | 61315 |
ГАЙКА (16 THREADS PER INCH) NUT (16 THREADS PER INCH) |
1 | discontinued |
| 18 | 12351 |
ПЕРЕДАЧА Spur (Driving End) GEAR Spur (Driving End) |
1 | discontinued |
| 19 | 56042 |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 68290A1 |
ПОДШИПНИК Roller BEARING Roller |
2 | |
| 20 | 85361 |
ГАЙКА (1.375-16) NUT (1.375-16) |
1 | discontinued |
| 3 | 31538 |
ГАЙКА (.750-16) NUT (.750-16) |
1 | discontinued |
| 4 | 16769A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 4 | 16768A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.00:1 RATIO) |
1 | discontinued |
| 4 | 78096A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.125:1 RATIO) |
1 | discontinued |
| 4 | 78095A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.125:1 RATIO) |
1 | discontinued |
| 5 | 11380A1 |
ВЕДУЩИЙ ВАЛ (Rear) DRIVESHAFT (Rear) |
1 | discontinued |
| 6 | 39808A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 7 | 39775A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | superseded |
| 8 | 39816 |
ПРОСТАВКА SPACER |
1 | |
| 9 | 39831 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
