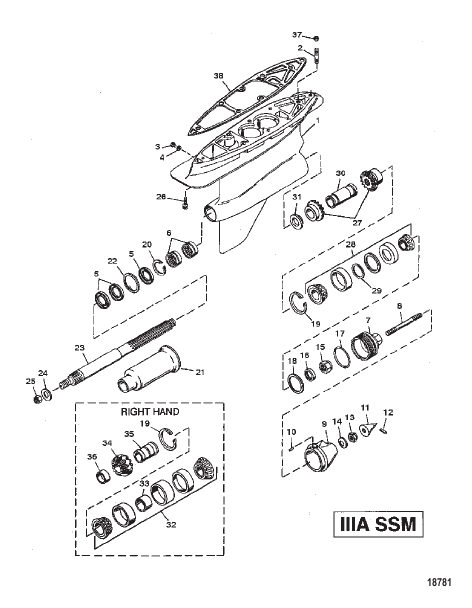

GEAR HOUSING ASSEMBLY (PROPSHAFT) (IIIA SSM)
Parts (54)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 817090A13 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | discontinued |
| 10 | 30282 |
ШТИФТ PIN |
1 | discontinued |
| 11 | 98036 |
ПРОБКА Nose Cone CAP Nose Cone |
1 | discontinued |
| 12 | 65700 |
ПРОБКА PLUG |
1 | |
| 13 | 33002 |
ГАЙКА (.625-18) NUT (.625-18) |
1 | superseded |
| 14 | 34961 |
ШАЙБА WASHER |
1 | |
| 15 | 39825 |
ГАЙКА (1.250-12) NUT (1.250-12) |
1 | |
| 16 | 42262 |
ШАЙБА WASHER |
1 | superseded |
| 17 | 32507 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.359 x 0.139) O-RING (3.359 x .139) |
1 | |
| 18 | 18995 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 19 | 18994099 |
КОЛЬЦО Snap (.099 Thick) RING Snap (.099 Thick) |
AR | discontinued |
| 19 | 18994100 |
КОЛЬЦО Snap (.100 Thick) RING Snap (.100 Thick) |
AR | discontinued |
| 19 | 18994101 |
КОЛЬЦО Snap (.101 Thick) RING Snap (.101 Thick) |
AR | discontinued |
| 19 | 18994102 |
КОЛЬЦО Snap (.102 Thick) RING Snap (.102 Thick) |
AR | discontinued |
| 19 | 18994103 |
КОЛЬЦО Snap (.103 Thick) RING Snap (.103 Thick) |
AR | discontinued |
| 19 | 18994104 |
КОЛЬЦО Snap (.104 Thick) RING Snap (.104 Thick) |
AR | discontinued |
| 19 | 18994105 |
КОЛЬЦО Snap (.105 Thick) RING Snap (.105 Thick) |
AR | discontinued |
| 19 | 18994106 |
КОЛЬЦО Snap (.106 Thick) RING Snap (.106 Thick) |
AR | discontinued |
| 19 | 18994107 |
КОЛЬЦО Snap (.107 Thick) RING Snap (.107 Thick) |
AR | discontinued |
| 19 | 18994108 |
КОЛЬЦО Snap (.108 Thick) RING Snap (.108 Thick) |
AR | discontinued |
| 19 | 18994109 |
КОЛЬЦО Snap (.109 Thick) RING Snap (.109 Thick) |
AR | discontinued |
| 19 | 18994110 |
КОЛЬЦО Snap (.110 Thick) RING Snap (.110 Thick) |
AR | discontinued |
| 19 | 18994111 |
КОЛЬЦО Snap (.111 Thick) RING Snap (.111 Thick) |
AR | discontinued |
| 19 | 18994112 |
КОЛЬЦО Snap (.112 Thick) RING Snap (.112 Thick) |
AR | discontinued |
| 2 | 579861 |
ШПИЛЬКА (2.810) STUD (2.810) |
1 | superseded |
| 20 | 815353 |
КОЛЬЦО Retaining RING Retaining |
1 | discontinued |
| 21 | 848061 |
КРЫШКА Направляющая гребного вала COVER Propshaft Guard |
1 | |
| 22 | 66672010 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
3 | discontinued |
| 23 | 18989 |
ВАЛ ГРЕБНОГО ВИНТА (RH) PROPELLER SHAFT (RH) |
1 | superseded |
| 23 | 18988 |
ВАЛ ГРЕБНОГО ВИНТА (LH) PROPELLER SHAFT (LH) |
1 | superseded |
| 24 | 39817 |
ШАЙБА Особое – нержавеющая сталь WASHER Special - Stainless Steel |
1 | |
| 25 | 54034 |
ГАЙКА (1.0-14) NUT (1.0-14) |
1 | superseded |
| 26 | 873702 |
ВИНТ (0.500-13 x 3.00) SCREW (.500-13 x 3.00) |
1 | discontinued |
| 27 | 19330A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.00:1 RATIO) |
2 | discontinued |
| 27 | 19333A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (LH - 1.125:1 RATIO) |
2 | superseded |
| 28 | 39772A2 |
БЛОК ПОДШИПНИКА Roller (LH GEAR SET) BEARING ASSEMBLY Roller (LH GEAR SET) |
1 | discontinued |
| 29 | 18993 |
ПРОСТАВКА (LH GEAR SET) SPACER (LH GEAR SET) |
1 | discontinued |
| 3 | 67892 |
ВИНТ Магнитный (.375-16) SCREW Magnetic (.375-16) |
1 | superseded |
| 30 | 53070 |
ПРОСТАВКА (LH GEAR SET) SPACER (LH GEAR SET) |
1 | discontinued |
| 31 | 39818 |
ШАЙБА (LH GEAR SET) WASHER (LH GEAR SET) |
1 | discontinued |
| 32 | 39772A3 |
БЛОК ПОДШИПНИКА Roller (RH GEAR SET) BEARING ASSEMBLY Roller (RH GEAR SET) |
1 | discontinued |
| 33 | 19296 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
1 | discontinued |
| 34 | 19329A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.00:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 34 | 19332A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.125:1 RATIO) GEAR SET (Pinion and Drive) (RH - 1.125:1 RATIO) |
1 | superseded |
| 35 | 18990 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
1 | superseded |
| 36 | 19180 |
ШАЙБА (RH GEAR SET) WASHER (RH GEAR SET) |
1 | discontinued |
| 37 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
1 | |
| 38 | 47317 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 4 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 5 | 19473 |
УПЛОТНЕНИЕ Oil SEAL Oil |
3 | |
| 6 | 39832 |
ПОДШИПНИК Roller BEARING Roller |
2 | superseded |
| 7 | 18991 |
АНКЕР Stud ANCHOR Stud |
1 | discontinued |
| 8 | 530642 |
ШПИЛЬКА Nose Cone STUD Nose Cone |
1 | discontinued |
| 9 | 11353 |
НОСОВОЙ ОБТЕКАТЕЛЬ NOSE CONE |
1 | discontinued |
