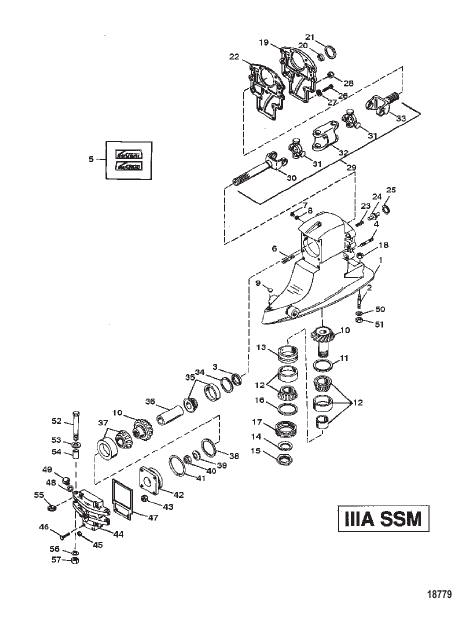

DRIVESHAFT HOUSING AND GEAR ASSY (IIIA SSM)
Parts (67)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 817092A11 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | superseded |
| 1 | 817092A12 |
КОРПУС В СБОРЕ Карданный вал HOUSING ASSEMBLY Driveshaft |
1 | discontinued |
| 10 | 818653A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.00:1 RATIO) GEAR SET (Pinion and Drive) (1.00:1 RATIO) |
1 | discontinued |
| 10 | 818654A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.18:1 RATIO) GEAR SET (Pinion and Drive) (1.18:1 RATIO) |
1 | discontinued |
| 10 | 818655A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.25:1 RATIO) GEAR SET (Pinion and Drive) (1.25:1 RATIO) |
1 | discontinued |
| 10 | 847823A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.31:1 RATIO) GEAR SET (Pinion and Drive) (1.31:1 RATIO) |
1 | discontinued |
| 10 | 818656A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.33:1 RATIO) GEAR SET (Pinion and Drive) (1.33:1 RATIO) |
1 | superseded |
| 10 | 818657A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.40:1 RATIO) GEAR SET (Pinion and Drive) (1.40:1 RATIO) |
1 | discontinued |
| 10 | 847825A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.44:1 RATIO) GEAR SET (Pinion and Drive) (1.44:1 RATIO) |
1 | discontinued |
| 10 | 848150A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (1.50:1 RATIO) GEAR SET (Pinion and Drive) (1.50:1 RATIO) |
1 | superseded |
| 11 | 19032A1 |
НАБОР ПРОКЛАДОК (.002 THRU .035 THICK) SHIM SET (.002 THRU .035 THICK) |
AR | |
| 11 | 19032A2 |
НАБОР ПРОКЛАДОК (.036 THRU .048 THICK) SHIM SET (.036 THRU .048 THICK) |
AR | |
| 12 | 19182A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | superseded |
| 13 | 18998 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 14 | 817303 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 19039 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 16 | 18997 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 17 | 816230 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 18 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
1 | |
| 19 | 58619A1 |
КРЫШКА В СБОРЕ (Front) COVER ASSEMBLY (Front) |
1 | discontinued |
| 2 | 57985 |
ШПИЛЬКА (2.810) STUD (2.810) |
6 | |
| 20 | 48443 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 21 | 26722 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 22 | 48407 |
ПРОКЛАДКА GASKET |
1 | |
| 23 | 48442 |
ПРУЖИНА SPRING |
1 | discontinued |
| 24 | 48219 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 25 | 48452 |
СЧЕТВЕРЕННОЕ КОЛЬЦО QUAD RING |
1 | |
| 26 | 90042 |
ВИНТ (0.437-14 x 1.500), нержавеющая сталь SCREW (.437-14 x 1.500) Stainless Steel |
2 | discontinued |
| 27 | 47659 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 28 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
7 | superseded |
| 29 | 44253A1 |
УНИВЕРСАЛЬНЫЙ ШАРНИР В СБОРЕ UNIVERSAL JOINT ASSEMBLY |
1 | superseded |
| 3 | 38105 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 30 | 44271 |
ВИЛКА (Gear End) YOKE (Gear End) |
1 | discontinued |
| 31 | 48153 |
КРЕСТОВИНА И ПОДШИПНИК В СБОРЕ CROSS AND BEARING ASSEMBLY |
2 | superseded |
| 32 | 63575 |
ГНЕЗДО SOCKET |
1 | superseded |
| 33 | 44253 |
ВИЛКА (Coupling End) YOKE (Coupling End) |
1 | discontinued |
| 34 | 36178A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | superseded |
| 35 | 39908A1 |
ПОДШИПНИК В СБОРЕ Конический ролик BEARING ASSEBMLY Tapered Roller |
1 | superseded |
| 36 | 47305 |
ПРОСТАВКА SPACER |
1 | superseded |
| 37 | 34804A3 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Tapered Roller |
1 | superseded |
| 38 | 34822A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 39 | 53212 |
ШАЙБА WASHER |
1 | discontinued |
| 4 | 57932 |
ШПИЛЬКА (0.375-16/0.375-24 x 1.750) STUD (.375-16/.375-24 x 1.750) |
7 | superseded |
| 40 | 90068T |
ГАЙКА (1.00-14) NUT (1.00-14) |
1 | superseded |
| 41 | 47291 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 42 | 47314 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 43 | 35053 |
ГАЙКА (0.437-20) NUT (.437-20) |
4 | superseded |
| 44 | 951061 |
КРОНШТЕЙН Back Cover BRACKET Back Cover |
1 | discontinued |
| 45 | 35053 |
ГАЙКА (0.437-20) NUT (.437-20) |
4 | superseded |
| 46 | 47432 |
ВИНТ (0.375-16 x 2.00) SCREW (.375-16 x 2.00) |
2 | superseded |
| 47 | 53058 |
ПРОКЛАДКА GASKET |
1 | |
| 48 | 90196 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.921 x 0.139) O-RING (.921 x .139) |
1 | superseded |
| 49 | 32018 |
ПРОБКА PLUG |
1 | superseded |
| 5 | 14489A90 |
НАБОР НАКЛЕЕК DECAL SET |
1 | discontinued |
| 50 | 180451 |
ШАЙБА WASHER |
6 | |
| 51 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
6 | |
| 52 | 677551 |
ВИНТ (0.500-20 x 4.500) SCREW (.500-20 x 4.500) |
2 | superseded |
| 53 | 540121 |
ШАЙБА (0.530 x 0.880 x 0.104) 630, нержавеющая сталь WASHER (.530 x .880 x .104) 630 Stainless Steel |
2 | superseded |
| 54 | 85322 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 55 | 85321 |
ПРОСТАВКА SPACER |
2 | superseded |
| 56 | 24501 |
ШАЙБА WASHER |
2 | discontinued |
| 57 | 35000 |
ГАЙКА (0.500-20), нержавеющая сталь NUT (.500-20) Stainless Steel |
2 | |
| 6 | 57984 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.380) STUD (.437-14/.437-20 x 2.380) |
2 | |
| 6 | 57983 |
ШПИЛЬКА (.437-14 x 2.875) STUD (.437-14 x 2.875) |
2 | discontinued |
| 7 | 67892 |
ВИНТ Магнитный Vent (.375-16) SCREW Magnetic Vent (.375-16) |
1 | superseded |
| 8 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 9 | 47579 |
ПРОБКА PLUG |
1 |
