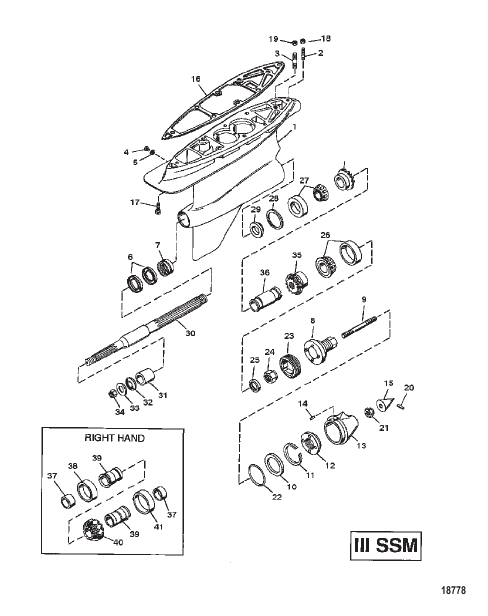

GEAR HOUSING ASSEMBLY (PROPSHAFT) (III SSM)
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8509A10 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | superseded |
| 1 | 8509A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ (Basic) GEAR HOUSING ASSEMBLY (Basic) |
1 | discontinued |
| 10 | 39821 |
ШАЙБА WASHER |
1 | discontinued |
| 11 | 35128 |
КОЛЬЦО Retaining RING Retaining |
1 | |
| 12 | 39803 |
КРЫШКА COVER |
1 | discontinued |
| 13 | 98023 |
НОСОВОЙ ОБТЕКАТЕЛЬ NOSE CONE |
1 | discontinued |
| 14 | 30282 |
ШТИФТ PIN |
1 | discontinued |
| 15 | 98036 |
ПРОБКА Nose Cone CAP Nose Cone |
1 | discontinued |
| 16 | 47317 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 17 | 47557 |
ВИНТ (0.500-13 x 1.500) SCREW (.500-13 x 1.500) |
1 | discontinued |
| 18 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
1 | superseded |
| 19 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
1 | |
| 2 | 57982 |
ШПИЛЬКА (0.437-14/0.437-20 x 1.875) STUD (.437-14/.437-20 x 1.875) |
1 | superseded |
| 20 | 65700 |
ПРОБКА PLUG |
1 | |
| 21 | 47379 |
ГАЙКА (0.625-18), нержавеющая сталь NUT (.625-18) Stainless Steel |
1 | |
| 22 | 39828 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 23 | 53060 |
ГАЙКА NUT |
1 | discontinued |
| 24 | 39825 |
ГАЙКА (1.250-12) NUT (1.250-12) |
1 | |
| 25 | 42262 |
ШАЙБА WASHER |
1 | superseded |
| 26 | 39772A1 |
ПОДШИПНИК Roller BEARING Roller |
1 | superseded |
| 27 | 39770A1 |
ПОДШИПНИК Roller BEARING Roller |
1 | superseded |
| 28 | 39809A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 29 | 39818 |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 57986 |
ШПИЛЬКА (2.810) STUD (2.810) |
1 | superseded |
| 30 | 85187 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | superseded |
| 31 | 87753 |
ПРОСТАВКА (LONG PROPELLER HUB ONLY) SPACER (LONG PROPELLER HUB ONLY) |
AR | superseded |
| 32 | 39820 |
ШАЙБА WASHER |
1 | |
| 33 | 39817 |
ШАЙБА Особое – нержавеющая сталь WASHER Special - Stainless Steel |
1 | |
| 34 | 39907 |
ГАЙКА (1.00-14) NUT (1.00-14) |
1 | superseded |
| 35 | 16768A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.00:1) GEAR SET (Pinion and Drive) (LH - 1.00:1) |
1 | discontinued |
| 35 | 78095A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (LH - 1.125:1) GEAR SET (Pinion and Drive) (LH - 1.125:1) |
1 | discontinued |
| 36 | 53070 |
ПРОСТАВКА (LH GEAR SET) SPACER (LH GEAR SET) |
1 | discontinued |
| 37 | 53067 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
2 | discontinued |
| 38 | 53068 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
1 | discontinued |
| 39 | 91846 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
2 | discontinued |
| 4 | 79953 |
ВИНТ (0.375-16 x 0.250) SCREW (.375-16 x .250) |
1 | superseded |
| 40 | 16769A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.00:1) GEAR SET (Pinion and Drive) (RH - 1.00:1) |
1 | discontinued |
| 40 | 78096A1 |
НАБОР ШЕСТЕРЕН (Pinion and Drive) (RH - 1.125:1) GEAR SET (Pinion and Drive) (RH - 1.125:1) |
1 | discontinued |
| 41 | 53066 |
ПРОСТАВКА (RH GEAR SET) SPACER (RH GEAR SET) |
1 | discontinued |
| 5 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 6 | 19473 |
УПЛОТНЕНИЕ Oil SEAL Oil |
3 | |
| 7 | 39832 |
ПОДШИПНИК Roller BEARING Roller |
1 | superseded |
| 8 | 53061 |
АНКЕР Stud ANCHOR Stud |
1 | discontinued |
| 9 | 53064 |
ШПИЛЬКА Nose Cone STUD Nose Cone |
1 | discontinued |
