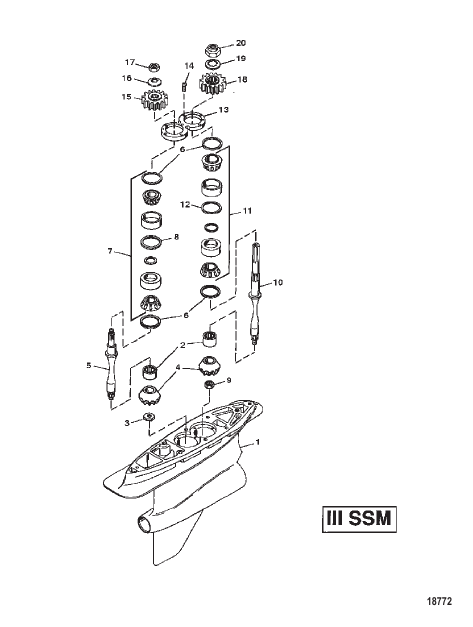

GEAR HOUSING ASSEMBLY (DRIVESHAFT) (III SSM)
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8509A10 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | superseded |
| 1 | 8509A1 |
КАРТЕР РЕДУКТОРА В СБОРЕ (Basic) GEAR HOUSING ASSEMBLY (Basic) |
1 | discontinued |
| 10 | 95783 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 11 | 35990A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | discontinued |
| 12 | 39816 |
ПРОСТАВКА SPACER |
1 | |
| 13 | 39804 |
ФИКСАТОР RETAINER |
1 | superseded |
| 14 | 39826 |
ВИНТ (0.313-18 x 1.00) SCREW (.313-18 x 1.00) |
7 | discontinued |
| 15 | 12352 |
ПЕРЕДАЧА Spur (Driven) GEAR Spur (Driven) |
1 | superseded |
| 16 | 39820 |
ШАЙБА WASHER |
1 | |
| 17 | 53062 |
ГАЙКА (32 THREADS PER INCH) NUT (32 THREADS PER INCH) |
1 | discontinued |
| 17 | 61315 |
ГАЙКА (16 THREADS PER INCH) NUT (16 THREADS PER INCH) |
1 | discontinued |
| 18 | 12351 |
ПЕРЕДАЧА Spur (Driving) GEAR Spur (Driving) |
1 | discontinued |
| 19 | 56042 |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 49920 |
ПОДШИПНИК Roller (1.870 OD) BEARING Roller (1.870 OD) |
AR | discontinued |
| 2 | 68290A1 |
ПОДШИПНИК Roller (1.930 OD) BEARING Roller (1.930 OD) |
2 | |
| 20 | 85361 |
ГАЙКА (1.375-16) NUT (1.375-16) |
1 | discontinued |
| 3 | 31538 |
ГАЙКА (.750-16) NUT (.750-16) |
1 | discontinued |
| 4 | 16769A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (RH - 1.00:1 RATIO) GEAR SET (PINION AND DRIVE) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 4 | 16768A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (LH - 1.00:1 RATIO) GEAR SET (PINION AND DRIVE) (LH - 1.00:1 RATIO) |
1 | discontinued |
| 4 | 78096A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (RH - 1.125:1 RATIO) GEAR SET (PINION AND DRIVE) (RH - 1.125:1 RATIO) |
1 | discontinued |
| 4 | 78095A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (LH - 1.125:1 RATIO) GEAR SET (PINION AND DRIVE) (LH - 1.125:1 RATIO) |
1 | discontinued |
| 5 | 95782A1 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 6 | 39808A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 7 | 39775A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | superseded |
| 8 | 39816 |
ПРОСТАВКА SPACER |
1 | |
| 9 | 39831 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
