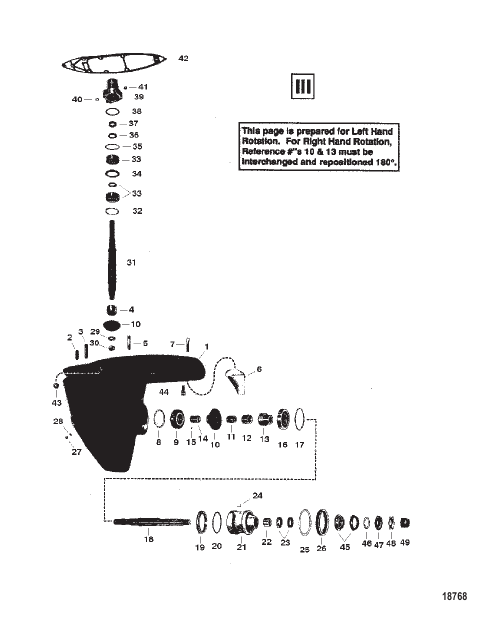

GEAR HOUSING ASSY (DRIVESHAFT & PROPSHAFT) (III)
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 4354A3 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | discontinued |
| 10 | 53572A2 |
РЕДУКТОР В СБОРЕ (Pinion and Drive) GEAR ASSEMBLY (Pinion and Drive) |
1 | discontinued |
| 11 | 48016 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 12 | 48015 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 13 | 53516 |
ПЕРЕХОДНИК ADAPTER |
1 | discontinued |
| 14 | 48011 |
РУКАВ SLEEVE |
1 | discontinued |
| 15 | 53308 |
ШТИФТ Dowel PIN Dowel |
1 | discontinued |
| 16 | 47484A1 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Tapered Roller |
1 | discontinued |
| 17 | 47297A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 18 | 53185A1 |
ВАЛ ГРЕБНОГО ВИНТА В СБОРЕ (1.250-12) PROPELLER SHAFT ASSEMBLY (1.250-12) |
1 | discontinued |
| 19 | 47307 |
КОЛЬЦО Thrust RING Thrust |
1 | discontinued |
| 2 | 57982 |
ШПИЛЬКА (0.437-14/0.437-20 x 1.875) STUD (.437-14/.437-20 x 1.875) |
1 | superseded |
| 20 | 47298 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 21 | 52623A2 |
СТАКАН В СБОРЕ Подшипник Bearing CARRIER ASSEMBLY Bearing Bearing |
1 | discontinued |
| 22 | 47946 |
ПОДШИПНИК Roller BEARING Roller |
1 | discontinued |
| 23 | 19473 |
УПЛОТНЕНИЕ Oil SEAL Oil |
2 | |
| 24 | 30281 |
КЛЮЧ KEY |
1 | |
| 25 | 52553 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | discontinued |
| 26 | 52622 |
КРЫШКА COVER |
1 | discontinued |
| 27 | 79953 |
ВИНТ (0.375-16 x 0.250) SCREW (.375-16 x .250) |
1 | superseded |
| 28 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 29 | 32073 |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 57986 |
ШПИЛЬКА (2.810) STUD (2.810) |
1 | superseded |
| 30 | 56041 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | superseded |
| 31 | 47323 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 32 | 39808A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 33 | 47669A2 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Tapered Roller |
1 | discontinued |
| 34 | 47603 |
КОЛЕНЧАТЫЙ ELBOW |
1 | discontinued |
| 35 | 39808A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 36 | 56042 |
ШАЙБА WASHER |
1 | discontinued |
| 37 | 34826 |
ГАЙКА (1.250-16) NUT (1.250-16) |
1 | discontinued |
| 38 | 20081 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Large) O-RING (Large) |
1 | |
| 39 | 47315 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 4 | 35246 |
ПОДШИПНИК Ролик BEARING Roller |
1 | discontinued |
| 40 | 45711 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.612 x 0.103) (Small) O-RING (.612 x .103) (Small) |
1 | |
| 41 | 34932 |
ГАЙКА (.375-24) NUT (.375-24) |
4 | superseded |
| 42 | 47317 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 43 | 47302 |
ГАЙКА (0.562-18), нержавеющая сталь NUT (.562-18) Stainless Steel |
6 | |
| 44 | 47557 |
ВИНТ (0.500-13 x 1.500) SCREW (.500-13 x 1.500) |
1 | discontinued |
| 45 | 48018A1 |
УПОРНАЯ ВТУЛКА И ШАЙБА В СБОРЕ THRUST HUB AND WASHER ASSEMBLY |
1 | discontinued |
| 46 | 37763 |
ШАЙБА Thrust WASHER Thrust |
1 | discontinued |
| 47 | 48014 |
ШАЙБА WASHER |
1 | discontinued |
| 48 | 48012 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | discontinued |
| 49 | 17844 |
ГАЙКА (1.250-12) NUT (1.250-12) |
1 | discontinued |
| 5 | 57981 |
ШПИЛЬКА (.375-16 x 3.00) STUD (.375-16 x 3.00) |
4 | discontinued |
| 6 | 31640A1 |
ТРАНЦЕВАЯ ПЛИТА В СБОРЕ TRIM TAB ASSEMBLY |
1 | superseded |
| 7 | 41350 |
ВИНТ (0.437-14 x 2.50), нержавеющая сталь SCREW (.437-14 x 2.50) Stainless Steel |
1 | |
| 8 | 47295A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 9 | 47484A1 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Tapered Roller |
1 | discontinued |
