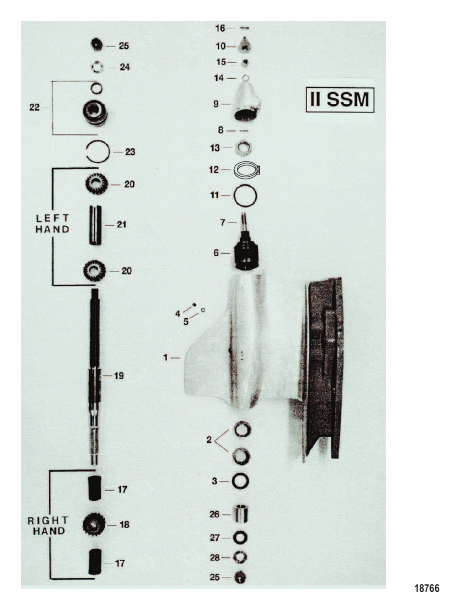

GEAR HOUSING ASSEMBLY (PROPSHAFT) (II SSM)
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 5455A13 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | superseded |
| 1 | 5455A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | discontinued |
| 10 | 980361 |
ПРОБКА Nose Cone CAP Nose Cone |
1 | discontinued |
| 11 | 68068 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 12 | 68069 |
СТОПОРНОЕ КОЛЬЦО LOCK RING |
1 | discontinued |
| 13 | 68519 |
ГАЙКА NUT |
1 | discontinued |
| 14 | 49539 |
ВТУЛКА BUSHING |
1 | discontinued |
| 15 | 47379 |
ГАЙКА (0.625-18), нержавеющая сталь NUT (.625-18) Stainless Steel |
1 | |
| 16 | 65700 |
ПРОБКА Nose Cone Screw PLUG Nose Cone Screw |
1 | |
| 17 | 68065 |
ПРОСТАВКА (Short) SPACER (Short) |
2 | discontinued |
| 18 | 68066A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (RH - 1.00:1 RATIO) GEAR SET (PINION AND DRIVE) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 18 | 95041A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (RH - 1.125:1 RATIO) GEAR SET (PINION AND DRIVE) (RH - 1.125:1 RATIO) |
1 | discontinued |
| 19 | 96985 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | discontinued |
| 2 | 39832 |
ПОДШИПНИК Roller BEARING Roller |
2 | superseded |
| 20 | 68060A2 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (LH - 1.00:1 RATIO) GEAR SET (PINION AND DRIVE) (LH - 1.00:1 RATIO) |
1 | discontinued |
| 20 | 95040A2 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (LH - 1.125:1 RATIO) GEAR SET (PINION AND DRIVE) (LH - 1.125:1 RATIO) |
1 | discontinued |
| 21 | 68061 |
ПРОСТАВКА (Long) SPACER (Long) |
1 | discontinued |
| 22 | 70838A2 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | discontinued |
| 23 | 68063108 |
КОЛЬЦО Snap (.108 THICK) RING Snap (.108 THICK) |
AR | discontinued |
| 23 | 68063109 |
КОЛЬЦО Snap (.109 THICK) RING Snap (.109 THICK) |
AR | discontinued |
| 23 | 68063110 |
КОЛЬЦО Snap (.110 THICK) RING Snap (.110 THICK) |
AR | discontinued |
| 23 | 68063111 |
КОЛЬЦО Snap (.111 THICK) RING Snap (.111 THICK) |
AR | discontinued |
| 23 | 68063112 |
КОЛЬЦО Snap (.112 THICK) RING Snap (.112 THICK) |
AR | discontinued |
| 23 | 68063113 |
КОЛЬЦО Snap (.113 THICK) RING Snap (.113 THICK) |
AR | discontinued |
| 23 | 68063114 |
КОЛЬЦО Snap (.114 THICK) RING Snap (.114 THICK) |
AR | discontinued |
| 23 | 68063115 |
КОЛЬЦО Snap (.115 THICK) RING Snap (.115 THICK) |
AR | discontinued |
| 23 | 68063116 |
КОЛЬЦО Snap (.116 THICK) RING Snap (.116 THICK) |
AR | discontinued |
| 23 | 68063117 |
КОЛЬЦО Snap (.117 THICK) RING Snap (.117 THICK) |
AR | discontinued |
| 23 | 68063118 |
КОЛЬЦО Snap (.118 THICK) RING Snap (.118 THICK) |
AR | discontinued |
| 24 | 68064 |
ШАЙБА WASHER |
1 | discontinued |
| 25 | 39907 |
ГАЙКА (1.00-14) NUT (1.00-14) |
2 | superseded |
| 26 | 87753 |
ПРОСТАВКА SPACER |
AR | superseded |
| 27 | 39820 |
ШАЙБА Splined WASHER Splined |
1 | |
| 28 | 39817 |
ШАЙБА Особое – нержавеющая сталь WASHER Special - Stainless Steel |
1 | |
| 3 | 19473 |
УПЛОТНЕНИЕ Oil SEAL Oil |
3 | |
| 4 | 79953 |
ВИНТ (0.375-16 x 0.250) SCREW (.375-16 x .250) |
1 | superseded |
| 5 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 6 | 68067 |
ОПОРА Bearing SUPPORT Bearing |
1 | discontinued |
| 7 | 97156 |
ШПИЛЬКА STUD |
1 | discontinued |
| 8 | 58998 |
ШТИФТ Roll PIN Roll |
1 | discontinued |
| 9 | 97155 |
НОСОВОЙ ОБТЕКАТЕЛЬ NOSE CONE |
1 | discontinued |
