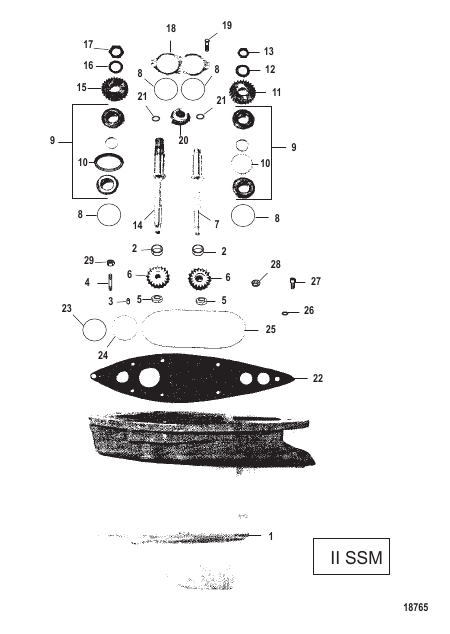

GEAR HOUSING ASSEMBLY (DRIVESHAFT) (II SSM)
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 5455A13 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | superseded |
| 1 | 5455A5 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) GEAR HOUSING ASSEMBLY (BASIC) |
1 | discontinued |
| 10 | 39816 |
ПРОСТАВКА SPACER |
2 | |
| 11 | 68081 |
ПЕРЕДАЧА Spur (Rear) GEAR Spur (Rear) |
1 | discontinued |
| 12 | 56042 |
ШАЙБА WASHER |
1 | discontinued |
| 13 | 53062 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 14 | 99158 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 15 | 68079 |
ПЕРЕДАЧА Spur (Front) GEAR Spur (Front) |
1 | discontinued |
| 16 | 39820 |
ШАЙБА WASHER |
1 | |
| 17 | 53063 |
ГАЙКА (Special) NUT (Special) |
1 | discontinued |
| 18 | 68077 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 19 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
4 | |
| 2 | 68460 |
ПОДШИПНИК Needle BEARING Needle |
2 | discontinued |
| 20 | 68075A1 |
СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ COUPLING ASSEMBLY |
1 | discontinued |
| 21 | 68076 |
КОЛЬЦО Retaining RING Retaining |
2 | discontinued |
| 22 | 68072 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 23 | 54029 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.800 x 0.103) O-RING (2.800 x .103) |
1 | |
| 24 | 54030 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.987 x 0.103) O-RING (2.987 x .103) |
1 | |
| 25 | 68073 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 26 | 68074 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 27 | 47557 |
ВИНТ (0.500-13 x 1.500) SCREW (.500-13 x 1.500) |
1 | discontinued |
| 28 | 35053 |
ГАЙКА (0.437-20) NUT (.437-20) |
2 | superseded |
| 29 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
5 | superseded |
| 3 | 25104 |
ШТИФТ Dowel PIN Dowel |
2 | discontinued |
| 4 | 54674 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.250) STUD (.437-14/.437-20 x 2.250) |
1 | discontinued |
| 5 | 35921 |
ГАЙКА (.625-18) NUT (.625-18) |
2 | |
| 6 | 68066A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (RH - 1.00:1 RATIO) GEAR SET (PINION AND DRIVE) (RH - 1.00:1 RATIO) |
1 | discontinued |
| 6 | 68060A2 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (LH - 1.00:1 RATIO) GEAR SET (PINION AND DRIVE) (LH - 1.00:1 RATIO) |
1 | discontinued |
| 6 | 95041A1 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (RH - 1.125:1 RATIO) GEAR SET (PINION AND DRIVE) (RH - 1.125:1 RATIO) |
1 | discontinued |
| 6 | 95040A2 |
НАБОР ШЕСТЕРЕН (PINION AND DRIVE) (LH - 1.125:1 RATIO) GEAR SET (PINION AND DRIVE) (LH - 1.125:1 RATIO) |
1 | discontinued |
| 7 | 99159 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 8 | 39808A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | discontinued |
| 9 | 35990A2 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
2 | discontinued |
