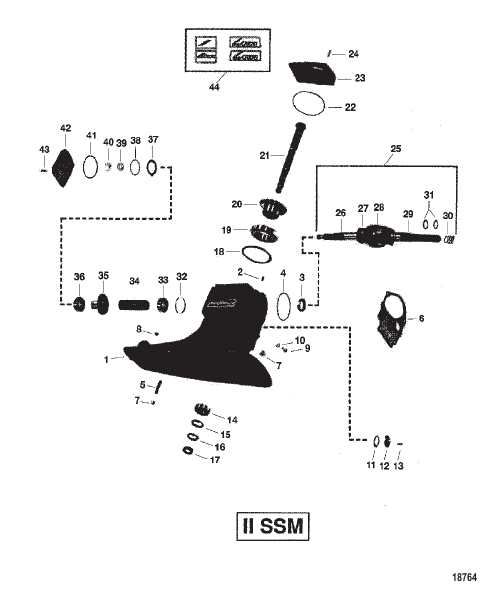

DRIVESHAFT HOUSING AND GEAR ASSEMBLY (II SSM)
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8945A2 |
РЕМОНТНЫЙ КОМПЛЕКТ REBUILD KIT |
1 | discontinued |
| 1 | 4847A5 |
КОРПУС В СБОРЕ Карданный вал HOUSING ASSEMBLY Driveshaft |
1 | discontinued |
| 10 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 11 | 669251 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 12 | 89818 |
КРЫШКА COVER |
1 | discontinued |
| 13 | 55515 |
ВИНТ (№10-32 x 0.750) SCREW (#10-32 x .750) |
3 | discontinued |
| 14 | 38356A1 |
НАБОР ПОДШИПНИКОВ Driveshaft BEARING SET Driveshaft |
1 | |
| 15 | 62795 |
ШАЙБА Tab WASHER Tab |
1 | discontinued |
| 16 | 62788 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 17 | 41527T |
ГАЙКА NUT |
1 | discontinued |
| 18 | 32061A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 19 | 62799A1 |
НАБОР ПОДШИПНИКОВ Drive Gear BEARING SET Drive Gear |
1 | |
| 2 | 21934 |
ВИНТ (0.375-16 x 0.500) SCREW (.375-16 x .500) |
1 | discontinued |
| 20 | 62879T |
ПЕРЕДАЧА Ведомый Driven (2:1 Ratio) GEAR Driven Driven (2:1 Ratio) |
1 | superseded |
| 21 | 62793T |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 22 | 67202 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 23 | 62911T |
КРЫШКА COVER |
1 | discontinued |
| 24 | 35047 |
ВИНТ (0.375-16 x 1.250), нержавеющая сталь SCREW (.375-16 x 1.250) Stainless Steel |
4 | |
| 25 | 62782A8 |
УНИВЕРСАЛЬНЫЙ ШАРНИР В СБОРЕ (FEMALE YOKE) UNIVERSAL JOINT ASSEMBLY (FEMALE YOKE) |
1 | discontinued |
| 25 | 62782A4 |
УНИВЕРСАЛЬНЫЙ ШАРНИР В СБОРЕ (MALE YOKE) UNIVERSAL JOINT ASSEMBLY (MALE YOKE) |
1 | discontinued |
| 26 | 62782A6 |
ШИП В СБОРЕ (Gear End) STUB ASSEMBLY (Gear End) |
1 | discontinued |
| 27 | 75832A2 |
КРЕСТОВИНА И ПОДШИПНИК CROSS AND BEARING |
2 | superseded |
| 28 | 39383T |
ГНЕЗДО Центральный Double SOCKET Center Double |
1 | superseded |
| 29 | 62784A1 |
ШИП В СБОРЕ (COUPLING END-FEMALE YOKE) STUB ASSEMBLY (COUPLING END-FEMALE YOKE) |
1 | |
| 29 | 57749A1 |
ВИЛКА В СБОРЕ (COUPLING END-MALE YOKE) YOKE ASSEMBLY (COUPLING END-MALE YOKE) |
1 | |
| 3 | 62818 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | |
| 30 | 62727 |
ПРУЖИНА (COUPLING END-FEMALE YOKE) SPRING (COUPLING END-FEMALE YOKE) |
1 | |
| 31 | 25439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.862 x 0.103) (COUPLING END-MALE YOKE) O-RING (.862 x .103) (COUPLING END-MALE YOKE) |
2 | |
| 32 | 62833A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 33 | 38356A1 |
НАБОР ПОДШИПНИКОВ Universal Joint BEARING SET Universal Joint |
1 | |
| 34 | 62789 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 35 | 62878T |
ПЕРЕДАЧА Pinion (2:1 Ratio) GEAR Pinion (2:1 Ratio) |
1 | superseded |
| 36 | 54038A1 |
БЛОК ПОДШИПНИКА Конический ролик Pinion Gear BEARING ASSEMBLY Tapered Roller Pinion Gear |
1 | superseded |
| 37 | 62786 |
ШАЙБА Thrust WASHER Thrust |
1 | discontinued |
| 38 | 55499A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
AR | |
| 39 | 48912 |
ШАЙБА WASHER |
1 | discontinued |
| 4 | 62817 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 40 | 90068T |
ГАЙКА (1.00-14) NUT (1.00-14) |
1 | superseded |
| 41 | 39695 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 42 | 62785T |
КРЫШКА COVER |
1 | discontinued |
| 43 | 35047 |
ВИНТ (0.375-16 x 1.250), нержавеющая сталь SCREW (.375-16 x 1.250) Stainless Steel |
4 | |
| 44 | 14489A87 |
НАБОР НАКЛЕЕК DECAL SET |
1 | superseded |
| 5 | 34816 |
ШПИЛЬКА (.437-20 x 2.500) STUD (.437-20 x 2.500) |
2 | superseded |
| 5 | 57921 |
ШПИЛЬКА (0.437-14/0.437-20 x 4.00) STUD (.437-14/.437-20 x 4.00) |
4 | |
| 6 | 71945 |
ПЛАСТИНА Bell Housing To Driveshaft Housing PLATE Bell Housing To Driveshaft Housing |
1 | discontinued |
| 7 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
6 | superseded |
| 8 | 47579 |
ПРОБКА PLUG |
1 | |
| 9 | 79953 |
ВИНТ (0.375-16 x 0.250) SCREW (.375-16 x .250) |
1 | superseded |
