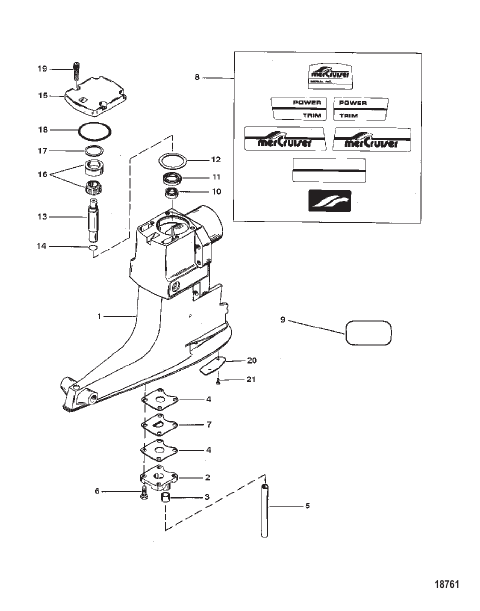

DRIVESHAFT HOUSING ASSEMBLY (ALPHA ONE-SS)
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 32511A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 1 | 9552A5 |
КОРПУС В СБОРЕ Карданный вал HOUSING ASSEMBLY Driveshaft |
1 | discontinued |
| 10 | 96503 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 11 | 32511 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 12 | 36178A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | superseded |
| 13 | 55796 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | |
| 14 | 55801 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 15 | 94998A2 |
КРЫШКА В СБОРЕ Top COVER ASSEMBLY Top |
1 | superseded |
| 16 | 61100A1 |
БЛОК ПОДШИПНИКА Roller BEARING ASSEMBLY Roller |
1 | |
| 17 | 45691A1 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
AR | |
| 18 | 32546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 19 | 98794 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
4 | superseded |
| 2 | 42724A4 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | discontinued |
| 20 | 14860 |
ИЗНОСОСТОЙКАЯ НАКЛАДКА (PORT) WEAR PAD (PORT) |
1 | discontinued |
| 20 | 14861 |
ИЗНОСОСТОЙКАЯ НАКЛАДКА (STARBOARD) WEAR PAD (STARBOARD) |
1 | discontinued |
| 21 | 14862 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
4 | discontinued |
| 3 | 36557 |
УПЛОТНЕНИЕ Water Inlet Tube SEAL Water Inlet Tube |
1 | |
| 4 | 55810 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 5 | 759146 |
ТРУБА Water TUBE Water |
1 | discontinued |
| 6 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
4 | |
| 7 | 12774 |
ПЛАСТИНА Water Restrictor PLATE Water Restrictor |
1 | discontinued |
| 8 | 13682A90 |
НАБОР НАКЛЕЕК DECAL SET |
1 | |
| 9 | 13722A10 |
НАБОР НАКЛЕЕК (454 MAGNUM) (ALPHA ONE) DECAL SET (454 MAGNUM) (ALPHA ONE) |
1 | discontinued |
| 9 | 16416A87 |
НАКЛЕЙКА (320) (ALPHA ONE) DECAL (320) (ALPHA ONE) |
1 | discontinued |
