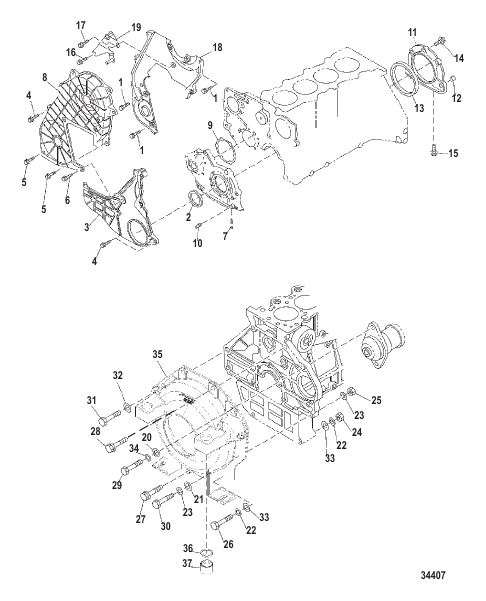

TIMING COVER AND FLYWHEEL HOUSING
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 882313 |
ВИНТ (M6 x 16) Крышка (M6 x 16) SCREW (M6 x 16) Cover (M6 x 16) |
4 | discontinued |
| 10 | 882370 |
СТРЕЛКА Распределение POINTER Timing |
1 | discontinued |
| 11 | 882602 |
ФИКСАТОР Коленчатый вал RETAINER Crankshaft |
1 | discontinued |
| 12 | 882394 |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 13 | 882402 |
УПЛОТНЕНИЕ Масло, коленчатый вал SEAL Oil, Crankshaft |
1 | discontinued |
| 14 | 882379 |
ВИНТ (M6 x 22) Фланец (M6 x 22) SCREW (M6 x 22) Flange (M6 x 22) |
5 | discontinued |
| 15 | 882629 |
ВИНТ (M6 x 20) С внутренним шестигранником (M6 x 20) SCREW (M6 x 20) Allen (M6 x 20) |
2 | superseded |
| 16 | 882291 |
ВИНТ (M6 x 12) Фланец (M6 x 12) SCREW (M6 x 12) Flange (M6 x 12) |
1 | discontinued |
| 17 | 882313 |
ВИНТ (M6 x 16) Фланец (M6 x 16) SCREW (M6 x 16) Flange (M6 x 16) |
1 | discontinued |
| 18 | 882512 |
КРЫШКА Пыль COVER Dust |
1 | discontinued |
| 19 | 882444 |
КРОНШТЕЙН Пружина натяжного устройства BRACKET Tensioner Spring |
1 | discontinued |
| 2 | 882714 |
УПЛОТНЕНИЕ Масло, коленчатый вал, передний SEAL Oil, Crankshaft, Front |
1 | |
| 20 | 882344 |
ШАЙБА WASHER |
5 | discontinued |
| 21 | 882643 |
ШАЙБА WASHER |
2 | discontinued |
| 22 | 882636 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | superseded |
| 23 | 882637 |
СТОПОРНАЯ ШАЙБА Замок LOCKWASHER Lock |
4 | discontinued |
| 24 | 882725 |
ГАЙКА (M10) (M10) NUT (M10) (M10) |
2 | discontinued |
| 25 | 882664 |
ГАЙКА (M12) (M12) NUT (M12) (M12) |
3 | discontinued |
| 26 | 882665 |
ВИНТ (M10 x 60) (M10 x 60) SCREW (M10 x 60) (M10 x 60) |
1 | discontinued |
| 27 | 882328 |
ВИНТ (M10 x 30) (M10 x 30) SCREW (M10 x 30) (M10 x 30) |
1 | superseded |
| 28 | 882726 |
ВИНТ (M12 x 55) (M12 x 55) SCREW (M12 x 55) (M12 x 55) |
2 | discontinued |
| 29 | 882622 |
ВИНТ (M12 x 55) (M12 x 55) SCREW (M12 x 55) (M12 x 55) |
1 | discontinued |
| 3 | 882458 |
КРЫШКА Распределение, нижняя часть COVER Timing, Lower |
1 | discontinued |
| 30 | 882622 |
ВИНТ (M12 x 55) (M12 x 55) SCREW (M12 x 55) (M12 x 55) |
2 | discontinued |
| 31 | 882666 |
ВИНТ (M12 x 35) (M12 x 35) SCREW (M12 x 35) (M12 x 35) |
1 | discontinued |
| 32 | 882344 |
ШАЙБА WASHER |
1 | discontinued |
| 33 | 882624 |
ВИНТ (M10 x 28) SCREW (M10 x 28) |
2 | discontinued |
| 34 | 882637 |
СТОПОРНАЯ ШАЙБА Замок LOCKWASHER Lock |
3 | discontinued |
| 35 | 862815T1 |
КОРПУС Маховик HOUSING Flywheel |
1 | superseded |
| 36 | 99322 |
ПРОСТАВКА SPACER |
2 | |
| 37 | 99297A1 |
ОПОРА В СБОРЕ Резина MOUNT ASSEMBLY Rubber |
2 | discontinued |
| 4 | 882292 |
ВИНТ (M6 x 18) Фланец, распределительная крышка (M6 x 18) SCREW (M6 x 18) Flange, Timing Cover (M6 x 18) |
1 | discontinued |
| 5 | 882374 |
ВИНТ (M6 x 40) Распределительная крышка (M6 x 40) SCREW (M6 x 40) Timing Cover (M6 x 40) |
2 | discontinued |
| 6 | 882296 |
ВИНТ (M6 x 45) Фланец, распределительная крышка (M6 x 45) SCREW (M6 x 45) Flange, Timing Cover (M6 x 45) |
1 | |
| 7 | 882715 |
ШПИЛЬКА STUD |
2 | discontinued |
| 8 | 882459 |
КРЫШКА Распределение, верхняя часть COVER Timing, Upper |
1 | discontinued |
| 9 | 882382 |
ПРОКЛАДКА Масляный насос GASKET Oil Pump |
1 | superseded |
