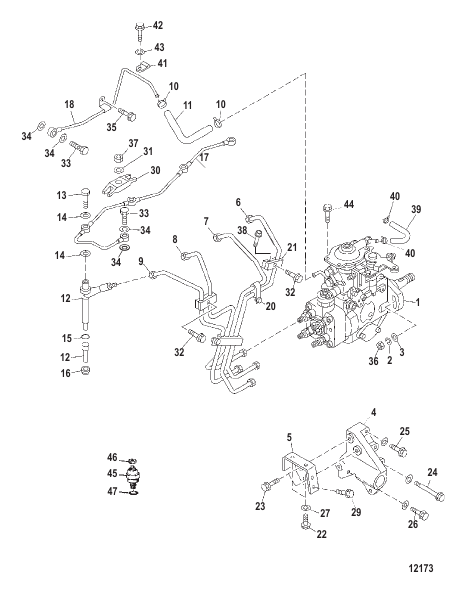

FUEL INJECTION SYSTEM
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 882554 |
НАСОС В СБОРЕ Впрыск топлива PUMP ASSEMBLY Fuel Injection |
1 | discontinued |
| 10 | 882660 |
ЗАЖИМ Шланг CLIP Hose |
2 | discontinued |
| 11 | 882600 |
РУКАВ Резиновый, утечка топлива HOSE Rubber, Fuel Leak |
1 | discontinued |
| 12 | 882555 |
ФОРСУНКА В СБОРЕ Инжекторный NOZZLE ASSEMBLY Inection |
4 | discontinued |
| 13 | 882498 |
ВИНТ SCREW |
4 | |
| 14 | 882497 |
ПРОКЛАДКА Перепускная труба GASKET Leak Off Pipe |
8 | discontinued |
| 15 | 882488 |
ПРОКЛАДКА Инжекторная форсунка GASKET Injection Nozzle |
4 | discontinued |
| 16 | 882418 |
ПРОКЛАДКА Инжекторная форсунка GASKET Injection Nozzle |
4 | |
| 17 | 882437 |
ТРУБА Топливо, протечка форсунки PIPE Fuel, Nozzle Leak Off |
1 | |
| 18 | 882568 |
ТРУБА Топливо, протечка форсунки PIPE Fuel, Nozzle Leak Off |
1 | |
| 19 | 882737 |
ЗАЖИМ Инжекторный трубопровод CLIP Injection Pipe |
1 | superseded |
| 2 | 882641 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 20 | 882738 |
ЗАЖИМ Инжекторный трубопровод CLIP Injection Pipe |
2 | discontinued |
| 21 | 882661 |
ЗАЖИМ Инжекторный трубопровод CLIP Injection Pipe |
4 | superseded |
| 22 | 882309 |
ВИНТ (M10 x 16) (M10 x 16) SCREW (M10 x 16) (M10 x 16) |
2 | discontinued |
| 23 | 882320 |
ВИНТ (M8 x 18) (M8 x 18) SCREW (M8 x 18) (M8 x 18) |
2 | superseded |
| 24 | 882333 |
БОЛТ И СТОПОРНАЯ ШАЙБА (M10 x 16) BOLT AND LOCKWASHER (M10 x 16) |
1 | discontinued |
| 25 | 882621 |
ВИНТ (M10 x 50) (M10 x 50) SCREW (M10 x 50) (M10 x 50) |
2 | discontinued |
| 26 | 882624 |
ВИНТ (M10 x 28) (M10 x 28) SCREW (M10 x 28) (M10 x 28) |
1 | discontinued |
| 27 | 882646 |
ШАЙБА WASHER |
2 | discontinued |
| 28 | 882640 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 29 | 882319 |
ВИНТ (M8 x 16) (M8 x 16) SCREW (M8 x 16) (M8 x 16) |
2 | discontinued |
| 3 | 882645 |
ШАЙБА WASHER |
2 | superseded |
| 30 | 882438 |
КРОНШТЕЙН Инжекторная форсунка BRACKET Injection Nozzle |
2 | superseded |
| 31 | 882345 |
ШАЙБА WASHER |
2 | discontinued |
| 32 | 882434 |
ВИНТ (M5 x 22) (M5 x 22) SCREW (M5 x 22) (M5 x 22) |
2 | discontinued |
| 33 | 882659 |
ВИНТ SCREW |
2 | discontinued |
| 34 | 882651 |
ПРОКЛАДКА Перепускная труба GASKET Leak Off Pipe |
4 | discontinued |
| 35 | 882290 |
ВИНТ (M6 x 10) Фланец (M6 x 10) SCREW (M6 x 10) Flange (M6 x 10) |
1 | discontinued |
| 36 | 882632 |
ГАЙКА (M8) (M8) NUT (M8) (M8) |
2 | discontinued |
| 37 | 882633 |
ГАЙКА (M10) (M10) NUT (M10) (M10) |
2 | discontinued |
| 38 | 882740 |
ШТИФТ PIN |
1 | discontinued |
| 39 | 882577 |
РУКАВ Наддув HOSE Boost |
1 | discontinued |
| 4 | 882557 |
КРОНШТЕЙН Инжекторный насос BRACKET Injection Pump |
1 | discontinued |
| 40 | 882660 |
ЗАЖИМ Шланг CLIP Hose |
2 | discontinued |
| 41 | 882352 |
ЗАЖИМ Топливопровод CLIP Fuel Pipe |
1 | discontinued |
| 42 | 882306 |
ВИНТ (M10 x 12) (M10 x 12) SCREW (M10 x 12) (M10 x 12) |
1 | discontinued |
| 43 | 882642 |
ШАЙБА WASHER |
1 | discontinued |
| 44 | 882629 |
ВИНТ (M6 x 20) Фланец (M6 x 12) SCREW (M6 x 20) Flange (M6 x 12) |
2 | superseded |
| 45 | 811406 |
КЛАПАН Выключение подачи топлива VALVE Fuel Shut Off |
1 | |
| 46 | 809922038 |
ГАЙКА NUT |
1 | discontinued |
| 47 | 811407 |
ШАЙБА WASHER |
1 | discontinued |
| 5 | 882618 |
КРОНШТЕЙН Инжекторный насос BRACKET Injection Pump |
1 | |
| 6 | 882733 |
ТРУБА Инжекторный PIPE Injection |
1 | discontinued |
| 7 | 882734 |
ТРУБА Инжекторный PIPE Injection |
1 | discontinued |
| 8 | 882735 |
ТРУБА Инжекторный PIPE Injection |
1 | discontinued |
| 9 | 882736 |
ТРУБА Инжекторный PIPE Injection |
1 | discontinued |
