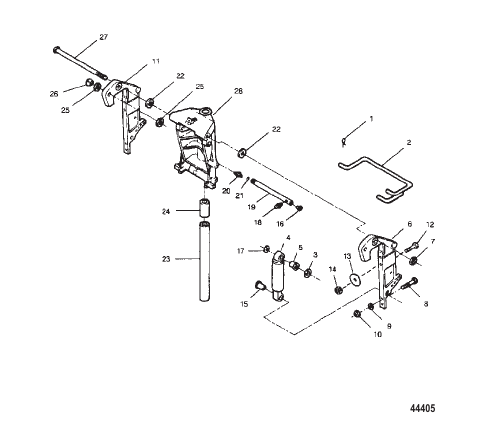

Swivel Bracket and Transom Bracket (Power Trim Models)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FA500019 |
ШКВОРЕНЬ В СБОРЕ (25" МОДЕЛИ) KINGPIN ASSEMBLY (25 INCH MODELS) |
1 | discontinued |
| 1 | F525629 |
ШТИФТ PIN |
1 | discontinued |
| 10 | F1346 |
ГАЙКА (0.375-16) SS NUT (.375-16) SS |
2 | superseded |
| 11 | F685032-1 |
КРОНШТЕЙН Корма ПРАВЫЙ БОРТ BRACKET Stern STARBOARD |
1 | superseded |
| 12 | F685632 |
БОЛТ (0.50-20 x 7.00), нержавеющая сталь BOLT (.50-20 x 7.00) Stainless Steel |
2 | discontinued |
| 13 | F684201 |
ШАЙБА WASHER |
2 | superseded |
| 14 | F7056 |
ГАЙКА (0.50-20) NUT (.50-20) |
2 | superseded |
| 15 | F449362 |
ВТУЛКА BUSHING |
2 | |
| 16 | F9052 |
ПРОБКА Пластик PLUG Plastic |
1 | discontinued |
| 17 | F1711 |
ШАЙБА WASHER |
2 | discontinued |
| 18 | F523274 |
ФИТИНГ Смазка FITTING Grease |
1 | discontinued |
| 19 | 818066A3 |
ТРУБА В СБОРЕ ОПОРА РУЛЕВОГО МЕХАНИЗМА TUBE ASSEMBLY STEERING SUPPORT |
1 | discontinued |
| 2 | F5H179 |
КОМПЛЕКТ КРОНШТЕЙНА BRACKET KIT |
1 | superseded |
| 20 | F213274 |
ФИТИНГ FITTING |
3 | discontinued |
| 21 | F316599 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 22 | F84286-1 |
ШАЙБА WASHER |
4 | discontinued |
| 23 | FS85019 |
ШКВОРЕНЬ (20" МОДЕЛИ) KINGPIN (20 INCH MODELS) |
1 | discontinued |
| 24 | F438169 |
ПОДШИПНИК BEARING |
2 | superseded |
| 25 | F523280 |
ГАЙКА NUT |
2 | discontinued |
| 26 | F9018 |
ПРОБКА Пластик CAP Plastic |
1 | discontinued |
| 27 | F85037-1 |
БОЛТ Шарнир кормового кронштейна BOLT Stern Bracket Pivot |
1 | discontinued |
| 28 | 817783A5 |
ПОВОРОТНЫЙ КРОНШТЕЙН С подшипниками и масленкой SWIVEL BRACKET With Bearings And Grease Fitting |
1 | discontinued |
| 3 | F1710 |
ШАЙБА WASHER |
4 | discontinued |
| 4 | FS631962 |
АМОРТИЗАТОР В СБОРЕ SHOCK ABSORBER ASSEMBLY |
1 | superseded |
| 5 | F178344 |
ВТУЛКА BUSHING |
1 | discontinued |
| 6 | F685532-1 |
КРОНШТЕЙН Корма ЛЕВЫЙ БОРТ BRACKET Stern PORT |
1 | superseded |
| 7 | F7012 |
КОНТРГАЙКА (0.50-20) LOCKNUT (.50-20) |
1 | superseded |
| 8 | F2185 |
ВИНТ Шестигранный (0.375-16 x 3.50), нерж. сталь SCREW Hex Head (.375-16 x 3.50) SS |
2 | discontinued |
| 9 | FK684201 |
ШАЙБА WASHER |
2 | discontinued |
