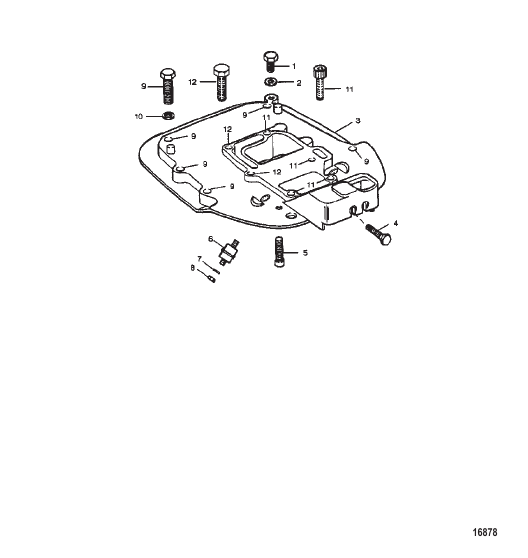

Spacer Plate
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | F1857 |
ВИНТ (0.312-18 x 0.625) НЕРЖ SCREW (.312-18 x .625) SS |
1 | superseded |
| 10 | F1703 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
5 | superseded |
| 11 | F1257 |
ВИНТ Головка под торцевой ключ (0.312-18 x 1.25), НЕРЖ SCREW Socket Head (.312-18 x 1.25) SS |
4 | discontinued |
| 12 | F1696 |
ВИНТ (0.312-18 x 1.750) (0.3125-18 x 1.75) SCREW (.312 - 18 x 1.750) (.3125-18 x 1.75) |
2 | superseded |
| 2 | F8096 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
2 | superseded |
| 3 | F683680 |
ПЛАСТИНА Проставка PLATE Spacer |
1 | discontinued |
| 4 | F1211 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-28 x 0.625) (0.25-28 x 0.625) SCREW AND LOCKWASHER (.250 - 28 x .625) (.25-28 x .625) |
2 | discontinued |
| 5 | F430732 |
ВИНТ (0.312-18 x 1.250), нержавеющая сталь SCREW (.312-18 x 1.250) Stainless Steel |
2 | |
| 6 | F307962 |
КРЕПЛЕНИЕ АМОРТИЗАТОРА Верхняя часть боковой стороны SHOCK MOUNT Side Upper |
2 | discontinued |
| 7 | F8038 |
ШАЙБА WASHER |
2 | superseded |
| 8 | F1346 |
ГАЙКА (0.375-16) SS (0.375-16) NUT (.375-16) SS (.375-16) |
2 | superseded |
| 9 | F1005 |
ВИНТ (0.375-16 x 1.500) (0.375-16 x 1.500) SCREW (.375 - 16 x 1.500) (.375-16 x 1.500) |
5 | superseded |
