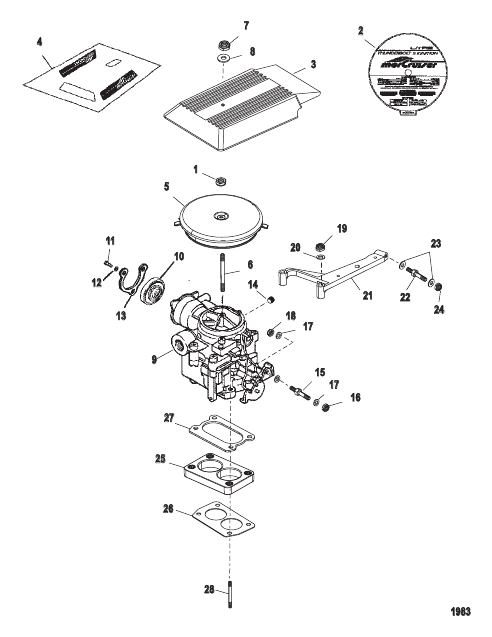

Carburetor and Throttle Linkage
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A98 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 863001 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | discontinued |
| 10 | 70125A1 |
КРЫШКА Обогатитель COVER Choke |
1 | superseded |
| 11 | 33047 |
ВИНТ SCREW |
3 | discontinued |
| 12 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь LOCKWASHER (#8) Stainless Steel |
3 | |
| 13 | 805140 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 14 | 56800 |
ПРОБКА Труба (0.0625-27) PLUG Pipe (.0625-27) |
1 | |
| 15 | 96112 |
ШПИЛЬКА (0.250-28 x 2.00) Якорь троса газа STUD (.250-28 x 2.00) Throttle Cable Anchor |
1 | superseded |
| 16 | 8267089 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | |
| 17 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 18 | 8267139 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | |
| 19 | 862902 |
ГАЙКА (0.312-24) NUT (.312-24) |
4 | |
| 2 | 8615081 |
НАБОР НАКЛЕЕК (5.0L Alpha) DECAL SET (5.0L Alpha) |
1 | discontinued |
| 2 | 865020 |
НАКЛЕЙКА (5.7L Alpha) DECAL (5.7L Alpha) |
1 | discontinued |
| 20 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
2 | |
| 20 | 26825 |
ШАЙБА (0.328 x 0.750 x 0.06) WASHER (.328 x .750 x .06) |
2 | |
| 21 | 805489T |
КРОНШТЕЙН BRACKET |
1 | |
| 22 | 38525 |
ШПИЛЬКА STUD |
1 | |
| 23 | 24664 |
ШАЙБА (M4 x 20) WASHER (M4 x 20) |
2 | |
| 24 | 8267139 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | |
| 25 | 807726A2 |
АДАПТЕР ADAPTER |
1 | |
| 26 | 8079821 |
ПРОКЛАДКА GASKET |
1 | |
| 27 | 861246 |
ПРОКЛАДКА GASKET |
1 | |
| 28 | 807849 |
ШПИЛЬКА (0.312-18/0.312-24 x 3.380) STUD (.312-18/.312-24 x 3.380) |
2 | |
| 28 | 65868 |
ШПИЛЬКА (0.312-18/0.312-24 x 2.120) STUD (.312-18/.312-24 x 2.120) |
2 | discontinued |
| 3 | 18484A3 |
КРЫШКА (5.0L Bravo и 5.7L Aalpha/Bravo) COVER (5.0L Bravo and 5.7L Aalpha/Bravo) |
1 | discontinued |
| 4 | 861314A10 |
НАБОР НАКЛЕЕК (5.0L Bravo) DECAL SET (5.0L Bravo) |
1 | discontinued |
| 4 | 861314A12 |
НАБОР НАКЛЕЕК (5.7L Alpha/Bravo) DECAL SET (5.7L Alpha/Bravo) |
1 | discontinued |
| 5 | 863200 |
ПЛАМЕГАСИТЕЛЬ FLAME ARRESTOR |
1 | |
| 6 | 805295 |
ШПИЛЬКА (0.250-20/0.250-28 x специальный) (3") STUD (.250-20/.250-28 x Special) (3 Inch) |
1 | superseded |
| 7 | 8267139 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | |
| 8 | 86400 |
ШАЙБА WASHER |
1 | |
| 9 | 861448A1 |
КАРБЮРАТОР В СБОРЕ (5.0L Alpha/Bravo) [0M623982] & Below CARBURETOR ASSEMBLY (5.0L Alpha/Bravo) [0M623982] & Below |
1 | superseded |
| 9 | 864942A01 |
КАРБЮРАТОР В СБОРЕ (5.0L Alpha/Bravo) [0M623983] & Up CARBURETOR ASSEMBLY (5.0L Alpha/Bravo) [0M623983] & Up |
1 | |
| 9 | 861245A1 |
КАРБЮРАТОР В СБОРЕ (5.7L Alpha/Bravo) [0M625179] & Below CARBURETOR ASSEMBLY (5.7L Alpha/Bravo) [0M625179] & Below |
1 | superseded |
| 9 | 864943A01 |
КАРБЮРАТОР В СБОРЕ (5.7L Alpha/Bravo) [0M625180] & Up CARBURETOR ASSEMBLY (5.7L Alpha/Bravo) [0M625180] & Up |
1 |
