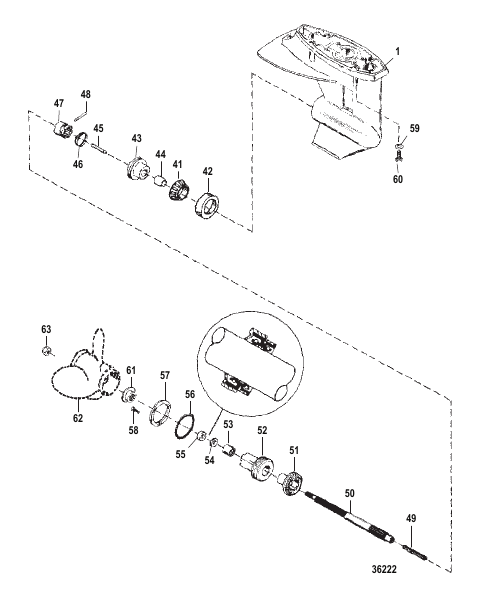

Gear Housing Assembly (Propeller Shaft)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85090A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 1 | 8669A40 |
GEAR HOUSING ASSEMBLY (PAINTED) (15 INCH SHORT)(COMPLETE) GEAR HOUSING ASSEMBLY (PAINTED) (15 INCH SHORT)(COMPLETE) |
1 | discontinued |
| 1 | 8669A41 |
GEAR HOUSING ASSEMBLY (PAINTED) (20 INCH LONG) (COMPLETE) GEAR HOUSING ASSEMBLY (PAINTED) (20 INCH LONG) (COMPLETE) |
1 | discontinued |
| 1 | 8669A39 |
GEAR HOUSING ASSEMBLY (PAINTED) (BASIC) GEAR HOUSING ASSEMBLY (PAINTED) (BASIC) |
1 | discontinued |
| 41 | 99328A1 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 | superseded |
| 42 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО CUP, ROLLER BEARING NOT SOLD SEPARATE CUP, ROLLER BEARING |
1 | |
| 43 | 44213A1 |
РЕДУКТОР В СБОРЕ Передняя GEAR ASSEMBLY Forward |
1 | superseded |
| 44 | 85557 |
ВТУЛКА BUSHING |
1 | |
| 45 | 85094 |
ТОЛКАТЕЛЬ Кулачок FOLLOWER Cam |
1 | |
| 46 | 38114 |
ПРУЖИНА SPRING |
1 | |
| 47 | 410401 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | superseded |
| 48 | 85093 |
ШТИФТ PIN |
1 | superseded |
| 49 | 88680 |
ПРУЖИНА SPRING |
1 | discontinued |
| 50 | 8166231 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | |
| 51 | 99542 |
ПЕРЕДАЧА Задняя GEAR Reverse |
1 | superseded |
| 52 | 99906A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 53 | 21739 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 54 | 41132 |
УПЛОТНЕНИЕ Масло (INNER) SEAL Oil (INNER) |
1 | |
| 55 | 41131 |
УПЛОТНЕНИЕ Масло (OUTER) SEAL Oil (OUTER) |
1 | |
| 56 | 85549 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 57 | 87293 |
ПЛАСТИНА PLATE |
1 | |
| 58 | 90883 |
ВИНТ (M5 x 16) SPECIAL SCREW (M5 x 16) SPECIAL |
3 | |
| 59 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
4 | superseded |
| 60 | 65210 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
4 | |
| 61 | 8M0027793 |
ВТУЛКА HUB |
1 | superseded |
| 62 | 19640A40 |
ГРЕБНОЙ ВИНТ (ALUM-10.375 X 13.0 RH) (BLACK MAX) BLACK MAX PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX) |
1 | |
| 62 | 19642A40 |
ГРЕБНОЙ ВИНТ (ALUM-10.250 X 14.5 RH) (BLACK MAX) PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX) |
OPT | |
| 62 | 19639A40 |
ГРЕБНОЙ ВИНТ (ALUM-10.375 X 12.0 RH) (BLACK MAX) BLACK MAX PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX) |
OPT | |
| 62 | 19638A40 |
ГРЕБНОЙ ВИНТ (ALUM-10.375 X 11.0 RH) (BLACK MAX) BLACK MAX PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX) |
OPT | |
| 62 | 19636A10 |
ГРЕБНОЙ ВИНТ BLACK MAX (ALUM-10.375 X 9.50 RH) (BLACK MAX) BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX) |
OPT | |
| 62 | 43592A5 |
ГРЕБНОЙ ВИНТ (SS-10.375 X 18.0 RH) (CHOPPER) PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER) |
OPT | superseded |
| 62 | 19644A5 |
ГРЕБНОЙ ВИНТ (SS-10.375 X 13.0 RH) (VENGEANCE) VENGEANCE PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE) |
OPT | discontinued |
| 63 | 4011912 |
ГАЙКА ГРЕБНОГО ВИНТА (M12) Stainless Steel Application PROP NUT (M12) Stainless Steel Application |
OPT | discontinued |
| 63 | 88228 |
ГАЙКА ГРЕБНОГО ВИНТА (M12) Aluminum Application PROP NUT (M12) Aluminum Application |
1 |
