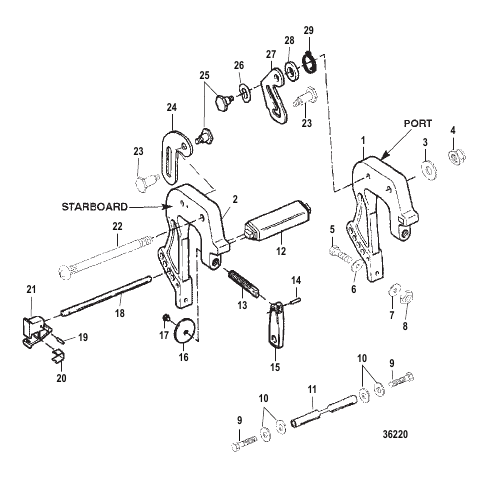

Clamp Brackets
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 850073T6 |
КРОНШТЕЙН Корма (PAINTED) (PORT) BRACKET Stern (PAINTED) (PORT) |
1 | discontinued |
| 10 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
| 11 | 852963 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 12 | 830564 |
РУКОЯТКА Для переноски HANDLE Carrying |
1 | discontinued |
| 13 | 826248 |
ВИНТ Кормовой кронштейн SCREW Stern Bracket |
2 | discontinued |
| 14 | 24198 |
ШТИФТ Ролик PIN Roll |
2 | discontinued |
| 15 | F424075T3 |
РУКОЯТКА Прижимной винт (PAINTED) HANDLE Clamp Screw (PAINTED) |
2 | discontinued |
| 16 | F24074 |
ПЕДАЛЬ Винт кормового кронштейна FOOT Stern Bracket Screw |
2 | discontinued |
| 17 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь SCREW (#10-32 x .500) Stainless Steel |
2 | |
| 18 | 851924A2 |
ПАЛЕЦ В СБОРЕ Наклон – кормовой кронштейн PIN ASSEMBLY Tilt - Stern Bracket |
1 | discontinued |
| 19 | 38489 |
ШТИФТ Ролик PIN Roll |
1 | |
| 2 | 850073T7 |
КРОНШТЕЙН Корма (PAINTED) (STARBOARD) BRACKET Stern (PAINTED) (STARBOARD) |
1 | discontinued |
| 20 | F286461 |
ПРУЖИНА SPRING |
1 | discontinued |
| 21 | 851929 |
РУКОЯТКА Стопорная пластина HANDLE Lock Bar |
1 | discontinued |
| 22 | 850185 |
БОЛТ Шарнир – кормовой кронштейн (.375-16 X 7.375) BOLT Pivot - Stern Bracket (.375-16 X 7.375) |
1 | |
| 23 | 819707 |
ШТИФТ Штифт запирания наклона (.250-20) PIN Tilt Lock (.250-20) |
2 | discontinued |
| 24 | 826251 |
РЫЧАГ Штифт запирания наклона LEVER Tilt Lock |
1 | discontinued |
| 25 | F286422-1 |
ВИНТ (0.312-18, специальный) SCREW (.312-18 Special) |
2 | discontinued |
| 26 | 69150 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 27 | F429541 |
ЗАМОК Наклон LOCK Tilt |
1 | |
| 28 | 819226 |
ПРОСТАВКА Штифт запирания наклона SPACER Tilt Lock |
1 | discontinued |
| 29 | F286544-1 |
ПРУЖИНА Штифт запирания наклона SPRING Tilt Lock |
1 | discontinued |
| 3 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
1 | |
| 4 | F7026 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | discontinued |
| 5 | 832820 |
ВИНТ (.250-20 X 3.00)-MOUNTING SCREW (.250-20 X 3.00)-MOUNTING |
2 | discontinued |
| 6 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь (THIN)-MOUNTING WASHER (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING |
2 | superseded |
| 7 | 67983 |
ШАЙБА WASHER |
2 | |
| 8 | 13855 |
ГАЙКА (0.250-20) MOUNTING NUT (.250-20) MOUNTING |
2 | superseded |
| 9 | 4000332 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
2 |
