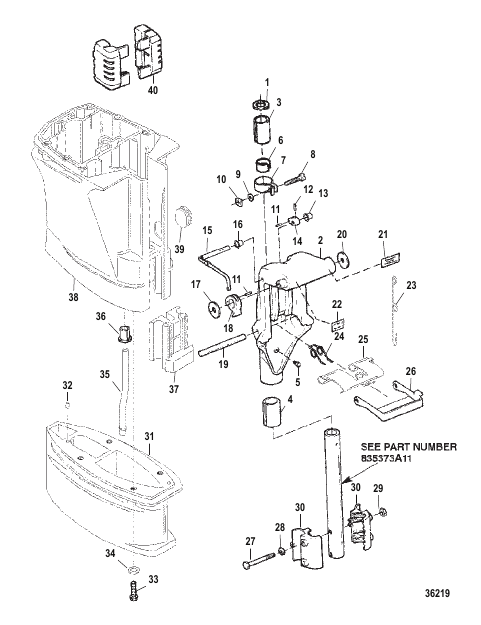

Swivel Bracket and Driveshft Housing
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | F286011 |
ШАЙБА Поворотный кронштейн WASHER Swivel Bracket |
1 | discontinued |
| 10 | F1608 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | discontinued |
| 11 | F1794 |
ШТИФТ Пружина PIN Spring |
2 | discontinued |
| 12 | F8538 |
ШТИФТ Пружина PIN Spring |
1 | discontinued |
| 13 | 26856 |
ВТУЛКА BUSHING |
1 | |
| 14 | 833156 |
РЫЧАГ Фиксатор реверса LEVER Reverse Lock |
1 | discontinued |
| 15 | 820095A2 |
РЫЧАГ В СБОРЕ Промежуточный фиксатор реверса LEVER ASSEMBLY Reverse Lock Intermediate |
1 | discontinued |
| 16 | F536813 |
ВТУЛКА BUSHING |
1 | discontinued |
| 17 | F2037 |
ШАЙБА WASHER |
1 | discontinued |
| 18 | F286827 |
РЫЧАГ Разблокировка фиксатора реверса LEVER Reverse Lock Release |
1 | discontinued |
| 19 | F1806 |
ШТИФТ Желоб PIN Groove |
1 | discontinued |
| 2 | 850049A8 |
SWIVEL BRACKET KIT (PAINTED) SWIVEL BRACKET KIT (PAINTED) |
1 | discontinued |
| 20 | F2037 |
ШАЙБА WASHER |
1 | discontinued |
| 21 | 8180291 |
НАКЛЕЙКА Топливный баланс DECAL Fuel Mix |
1 | discontinued |
| 22 | 8302531 |
НАКЛЕЙКА Разблокировка наклона DECAL Tilt Release |
1 | discontinued |
| 23 | 852528 |
СОЕДИНИТЕЛЬ Рукоятка фиксатора реверса LINK Reverse Lock Lever |
1 | discontinued |
| 24 | F286300 |
ПРУЖИНА Фиксатор реверса SPRING Reverse Lock |
1 | discontinued |
| 25 | 850259 |
ЗАМОК Задняя LOCK Reverse |
1 | discontinued |
| 26 | 8301111 |
КРОНШТЕЙН Привод для плавания на мелководье BRACKET Shallow Water Drive |
1 | discontinued |
| 27 | FA1844 |
КОМПЛЕКТ ВИНТОВ (0.250-20 x 2.375) SCREW KIT (.250-20 x 2.375) |
2 | discontinued |
| 28 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 29 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| 3 | F681169 |
ПОДШИПНИК (1.125 INCHES) (TOP) BEARING (1.125 INCHES) (TOP) |
1 | discontinued |
| 30 | 819320T3 |
BRACKET Shock Mount Lower (PAINTED) BRACKET Shock Mount Lower (PAINTED) |
2 | discontinued |
| 31 | 826361T4 |
SPACER ASSEMBLY (PAINTED) 20 INCH LONG MODELS SPACER ASSEMBLY (PAINTED) 20 INCH LONG MODELS |
1 | discontinued |
| 32 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) 20 INCH LONG MODELS PIN Dowel (.187 x .530) 20 INCH LONG MODELS |
1 | superseded |
| 33 | 65210 |
ВИНТ (0.375-16 x 1.00) 20 INCH LONG MODELS TORQUE 23 LB. FT. 30.5 N-M SCREW (.375-16 x 1.00) 20 INCH LONG MODELS TORQUE 23 LB. FT. 30.5 N-M |
4 | |
| 34 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) 20 INCH LONG MODELS WASHER (.406 x .750 x .104) 20 INCH LONG MODELS |
4 | superseded |
| 35 | 819149 |
ТРУБОПРОВОД Впуск воды (15 INCH SHORT MODELS) LINE Water Inlet (15 INCH SHORT MODELS) |
1 | discontinued |
| 35 | 8191491 |
ТРУБОПРОВОД Впуск воды (20 INCH LONG MODELS) LINE Water Inlet (20 INCH LONG MODELS) |
1 | discontinued |
| 36 | F286914-1 |
РУКАВ Впускной трубопровод воды SLEEVE Water Inlet Line |
1 | discontinued |
| 37 | 8193192 |
КРЕПЛЕНИЕ АМОРТИЗАТОРА Нижняя часть SHOCK MOUNT Lower |
1 | discontinued |
| 38 | 819215T5 |
HOUSING ASSEMBLY Driveshaft (PAINTED) HOUSING ASSEMBLY Driveshaft (PAINTED) |
1 | discontinued |
| 39 | F46899-1 |
КРЫШКА COVER |
1 | discontinued |
| 4 | F286169 |
ПОДШИПНИК (1.750 INCHES) (BOTTOM) BEARING (1.750 INCHES) (BOTTOM) |
1 | discontinued |
| 40 | F517347 |
КРЕПЛЕНИЕ АМОРТИЗАТОРА Верхняя часть SHOCK MOUNT Upper |
2 | discontinued |
| 5 | F213274 |
ФИТИНГ FITTING |
2 | discontinued |
| 6 | F681631 |
НАКОНЕЧНИК Трение SHOE Friction |
1 | discontinued |
| 7 | F286573-1 |
ЗАЖИМ Трение рулевого механизма CLAMP Steering Friction |
1 | discontinued |
| 8 | F1820 |
ВИНТ (0.250-20 x 1.375) SCREW (.250-20 x 1.375) |
1 | discontinued |
| 9 | 12038 |
ШАЙБА WASHER |
1 | superseded |
