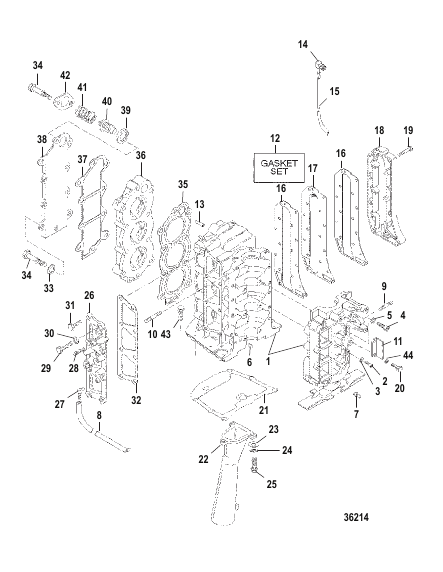

Cylinder Block Assembly
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 809516A1 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| - | 819240A6 |
POWERHEAD ASSEMBLY POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 819240A6 |
POWERHEAD ASSEMBLY (PAINTED) (COMPLETE) POWERHEAD ASSEMBLY (PAINTED) (COMPLETE) |
1 | discontinued |
| 1 | 819240A2 |
ЦИЛИНДР В СБОРЕ (PAINTED) CYLINDER ASSEMBLY (PAINTED) |
1 | superseded |
| 10 | 826590 |
ШПИЛЬКА (0.250-20 x 1.690) (.250-20 X 1.690) WITH DRI LOK STUD (.250-20 x 1.690) (.250-20 X 1.690) WITH DRI LOK |
1 | discontinued |
| 11 | 834753 |
КРОНШТЕЙН Упор дроссельной заслонки BRACKET Throttle Stop |
1 | discontinued |
| 12 | 809516A1 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 13 | 819243 |
ТРУБА Водяная рубашка TUBE Water Jacket |
1 | discontinued |
| 14 | 88780 |
КОЛЕНЧАТЫЙ Трубопровод контрольного устройства ELBOW Tell-Tale Tubing |
1 | superseded |
| 15 | 549507 |
РУКАВ (7.00 INCHES)-TELL TALE HOSE (7.00 INCHES)-TELL TALE |
1 | discontinued |
| 16 | 819140 |
ПРОКЛАДКА Крышка выхлопного отверстия GASKET Exhaust Cover |
2 | discontinued |
| 17 | 819152 |
ПЛАСТИНА Выхлоп PLATE Exhaust |
1 | discontinued |
| 18 | 819136T |
КРЫШКА Выхлоп (PAINTED) COVER Exhaust (PAINTED) |
1 | superseded |
| 19 | F1581 |
ВИНТ (0.250-20 x 1.250) (.250-20 X 1.250) SCREW (.250-20 X 1.250) (.250-20 X 1.250) |
14 | superseded |
| 2 | 92160 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
11 | |
| 20 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь GROUND WIRE SCREW (.250-20 x .750) Stainless Steel GROUND WIRE |
1 | |
| 21 | 819498 |
ПРОКЛАДКА Крепление цилиндра GASKET Cylinder Mount |
1 | discontinued |
| 22 | 819157T1 |
ТРУБА Выхлоп TUBE Exhaust |
1 | discontinued |
| 23 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
3 | superseded |
| 24 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
3 | |
| 25 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
3 | |
| 26 | 819137T |
КРЫШКА В СБОРЕ Перепускное отверстие (PAINTED) COVER ASSEMBLY Transfer Port (PAINTED) |
1 | superseded |
| 27 | 15133 |
ФИТИНГ FITTING |
3 | |
| 28 | F681134 |
ШПИЛЬКА Взаимная блокировка рычага STUD Interlock Lever |
1 | discontinued |
| 29 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь WASHER HEAD SCREW (.250-20 x .750) Stainless Steel WASHER HEAD |
1 | |
| 3 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
11 | superseded |
| 30 | 28927 |
ШАЙБА WASHER |
1 | superseded |
| 31 | F1535 |
ВИНТ (0.250-20 x 0.750) HEX HEAD SCREW (.250-20 x .750) HEX HEAD |
7 | discontinued |
| 32 | 819143 |
ПРОКЛАДКА Крышка перепускного отверстия GASKET Transfer Port Cover |
1 | discontinued |
| 33 | 814806 |
ШАЙБА (0.344 x 0.688 x 0.065), нержавеющая сталь WASHER (.344 x .688 x .065) Stainless Steel |
8 | superseded |
| 34 | F1882 |
ВИНТ (0.312-18 x 2.125) SCREW (.312-18 x 2.125) |
10 | discontinued |
| 35 | 8191382 |
ПРОКЛАДКА Головка цилиндра GASKET Cylinder Head |
1 | discontinued |
| 36 | 819145T1 |
ГОЛОВКА ЦИЛИНДРА (PAINTED) CYLINDER HEAD (PAINTED) |
1 | superseded |
| 37 | 8191391 |
ПРОКЛАДКА Крышка головки цилиндра GASKET Cylinder Head Cover |
1 | discontinued |
| 38 | 819134T |
КРЫШКА Головка цилиндра (PAINTED) COVER Cylinder Head (PAINTED) |
1 | discontinued |
| 39 | F658504 |
ШАЙБА WASHER |
1 | |
| 4 | 54523 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
6 | discontinued |
| 40 | F97068-2 |
ТЕРМОСТАТ 54°C (130°F) THERMOSTAT 54°C (130°F) |
1 | superseded |
| 41 | 819161 |
ПРУЖИНА Термостат SPRING Thermostat |
1 | discontinued |
| 42 | 819439T |
КРЫШКА Термостат (PAINTED) COVER Thermostat (PAINTED) |
1 | discontinued |
| 43 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
6 | |
| 44 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) GROUND SCREW LOCKWASHER Internal (.250) GROUND SCREW |
1 | |
| 5 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
6 | |
| 6 | F8559 |
ШТИФТ PIN |
1 | discontinued |
| 7 | 426582 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 8 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (CUT 2 PIECES - 15.00 INCHES) (CUT 1 PIECE - 12.058 INCHES) TUBING (20.00 Feet Bulk) (CUT 2 PIECES - 15.00 INCHES) (CUT 1 PIECE - 12.058 INCHES) |
1 | superseded |
| 9 | 834759 |
ШПИЛЬКА (0.312-24 x 1.14), специальный (.312-24 X 1.14) STUD (.312-24 X 1.14) Special (.312-24 X 1.14) |
1 | discontinued |
