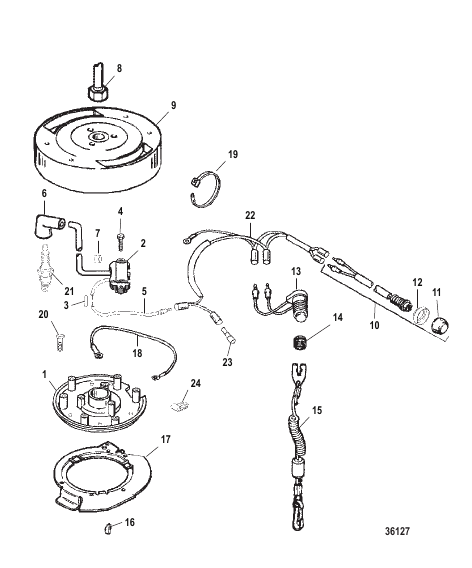

Ignition System
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 819155A2 |
СТАТОР В СБОРЕ (COMPLETE) STATOR ASSEMBLY (COMPLETE) |
1 | discontinued |
| 1 | 819155T |
ПЛАСТИНА Статор PLATE Stator |
1 | discontinued |
| 10 | 824440A14 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | discontinued |
| 11 | 824466A3 |
КРЫШКА В СБОРЕ Переключатель останова COVER ASSEMBLY Stop Switch |
1 | discontinued |
| 12 | 824915 |
ОБОДОК Крышка переключателя останова BEZEL Stop Switch Cover |
1 | discontinued |
| 13 | 826214A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Аварийная остановка SWITCH ASSEMBLY Emergency Stop |
1 | discontinued |
| 14 | 855594 |
ГАЙКА (Special)-Stop Switch Sleeve NUT (Special)-Stop Switch Sleeve |
1 | discontinued |
| 15 | 819399A1 |
ТАЛРЕП В СБОРЕ LANYARD ASSEMBLY |
1 | superseded |
| 16 | F458498-1 |
КЛЮЧ Коленчатый вал/маховик KEY Crankshaft/Flywheel |
1 | discontinued |
| 17 | 8278961 |
КУЛАЧОК Дроссельная заслонка CAM Throttle |
1 | discontinued |
| 18 | 821375A44 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | discontinued |
| 19 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 19 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 2 | 850899T1 |
КОМПЛЕКТ МОДУЛЯ Зажигание MODULE KIT Ignition |
3 | discontinued |
| 20 | 824358 |
ВИНТ (№10-24 x 0.500) (#10-24 x .500)-Stator Plate SCREW (#10-24 x .500) (#10-24 x .500)-Stator Plate |
5 | discontinued |
| 21 | 811 |
СВЕЧА ЗАЖИГАНИЯ (CHAMPION # L82C) SPARK PLUG (CHAMPION # L82C) |
3 | superseded |
| 21 | 874 |
СВЕЧА ЗАЖИГАНИЯ (RFI) (CHAMPION # RL82C) SPARK PLUG (RFI) (CHAMPION # RL82C) |
OPT | superseded |
| 22 | 79138A93 |
ЖГУТ ПРОВОДОВ В СБОРЕ Останов двигателя HARNESS ASSEMBLY Engine Stop |
1 | discontinued |
| 23 | 13541 |
ПРОБКА Вилка PLUG Male |
1 | |
| 24 | 831275 |
ЗАЖИМ Ignition Module Wires CLAMP Ignition Module Wires |
1 | discontinued |
| 3 | 830865 |
СОЕДИНИТЕЛЬ Ignition Module Wire (SERVICE ONLY) CONNECTOR Ignition Module Wire (SERVICE ONLY) |
AR | superseded |
| 4 | 824353 |
ВИНТ (#8-32 x .750)-Ignition Module Mount SCREW (#8-32 x .750)-Ignition Module Mount |
9 | discontinued |
| 5 | 12479A60 |
КАБЕЛЬ В СБОРЕ Модули к жгуту проводов CABLE ASSEMBLY Modules To Harness |
1 | discontinued |
| 6 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ Spark Plug BOOT/TERMINAL KIT Spark Plug |
3 | |
| 7 | 20117A1 |
НАБОР МАРКЕРОВ Кабели зажигания (#1) (#2) (#3) MARKER SET Ignition Cables (#1) (#2) (#3) |
1 | discontinued |
| 8 | F681091 |
ГАЙКА Flywheel NUT Flywheel |
1 | discontinued |
| 9 | 824380T4 |
МАХОВИК (Painted) FLYWHEEL (Painted) |
1 | discontinued |
| NS | 830230T |
ИНСТРУМЕНТ ДЛЯ ИЗМЕРЕНИЯ ЗАЗОРА Восьмикамерн. Air Gap Setting-Coil to Flywheel AIR GAP TOOL Eight Chamber Air Gap Setting-Coil to Flywheel |
1 | discontinued |
