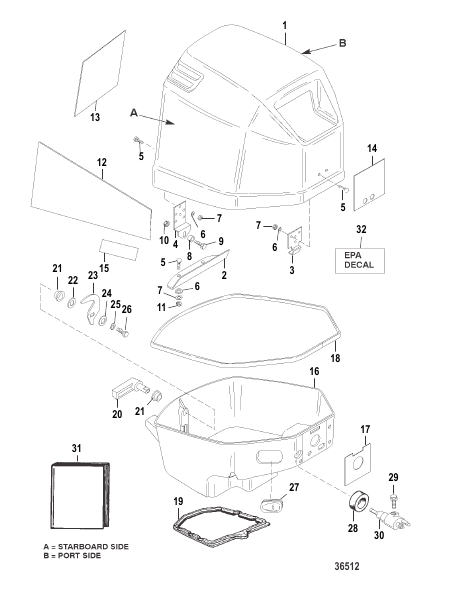

Cowl Assembly Top and Bottom
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 819135A8 |
TOP COWL ASSEMBLY (Painted) (WITH DECALS) TOP COWL ASSEMBLY (Painted) (WITH DECALS) |
1 | discontinued |
| 1 | 819135A7 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Painted) (WITHOUT DECALS) TOP COWL ASSEMBLY (Painted) (WITHOUT DECALS) |
1 | discontinued |
| 10 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
1 | superseded |
| 11 | F8155 |
ШАЙБА WASHER |
2 | discontinued |
| 12 | 8263439 |
DECAL (STARBOARD) DECAL (STARBOARD) |
1 | discontinued |
| 12 | 82634310 |
DECAL (PORT) DECAL (PORT) |
1 | discontinued |
| 13 | 82634311 |
DECAL (REAR) DECAL (REAR) |
1 | discontinued |
| 14 | 82634312 |
DECAL (FRONT)-Starting Instructions DECAL (FRONT)-Starting Instructions |
1 | discontinued |
| 15 | 82408812 |
НАКЛЕЙКА Переключение передач DECAL Shift |
1 | discontinued |
| 16 | 835495A3 |
НИЖНИЙ КОЖУХ В СБОРЕ (Painted) BOTTOM COWL ASSEMBLY (Painted) |
1 | discontinued |
| 17 | 8192814 |
ПЛАСТИНА Передний PLATE Front |
1 | discontinued |
| 18 | F392756 |
УПЛОТНЕНИЕ Верхняя часть нижнего кожуха (4.075 Ft. Bulk) (Cut 3.783 Ft.) SEAL Top Of Bottom Cowl (4.075 Ft. Bulk) (Cut 3.783 Ft.) |
1 | discontinued |
| 19 | 827895 |
УПЛОТНЕНИЕ Нижний кожух SEAL Bottom Cowl |
1 | discontinued |
| 2 | 819447 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК BAFFLE |
1 | discontinued |
| 20 | 854239A1 |
РУКОЯТКА В СБОРЕ Защелка кожуха (Painted) HANDLE ASSEMBLY Cowl Latch (Painted) |
1 | discontinued |
| 21 | 812707 |
ВТУЛКА BUSHING |
2 | |
| 22 | F2047 |
ШАЙБА Волна WASHER Wave |
1 | |
| 23 | F481777 |
КУЛАЧОК Вал фиксатора CAM Latch Shaft |
1 | superseded |
| 24 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
1 | |
| 25 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 26 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
1 | |
| 27 | 935271 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Трос управления GROMMET Control Cable |
1 | superseded |
| 28 | 18202 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Fuel Connector GROMMET Fuel Connector |
1 | |
| 29 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
1 | superseded |
| 3 | 819130 |
КРОНШТЕЙН Передний BRACKET Front |
1 | discontinued |
| 30 | 15781A5 |
СОЕДИНИТЕЛЬ Топливо – латунь CONNECTOR Fuel - Brass |
1 | superseded |
| 31 | 854731 |
PARTS MANUAL 25 Hp (1998) Sears PARTS MANUAL 25 Hp (1998) Sears |
1 | |
| 32 | 85557738 |
DECAL EPA Label Information (Applied To The Inside Of The Top Cowl) DECAL EPA Label Information (Applied To The Inside Of The Top Cowl) |
1 | discontinued |
| 4 | 819371 |
ФИКСАТОР Задний кожух RETAINER Rear Cowl |
1 | discontinued |
| 5 | 835499 |
ВИНТ (#8-32 x .440) SCREW (#8-32 x .440) |
7 | discontinued |
| 6 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь LOCKWASHER (#8) Stainless Steel |
7 | |
| 7 | 850042 |
ГАЙКА (#8-32) NUT (#8-32) |
7 | discontinued |
| 8 | F681759 |
РОЛИК Защелка ROLLER Latch |
1 | discontinued |
| 9 | F681026 |
ВИНТ Latch Roller SCREW Latch Roller |
1 | discontinued |
