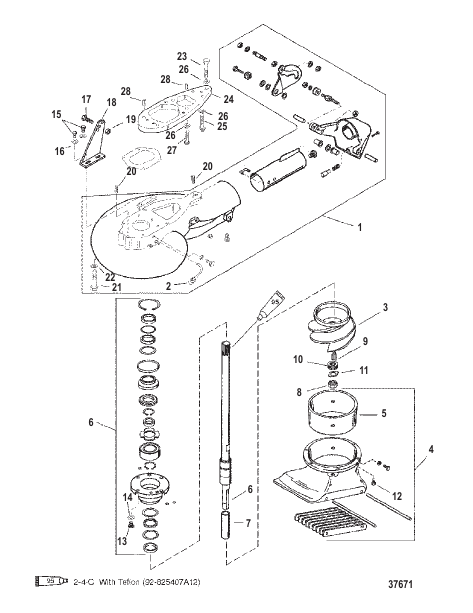

JET PUMP ASSEMBLY
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 801400401 |
ВОДОМЕТНЫЙ НАСОС В СБОРЕ JET PUMP ASSEMBLY |
1 | superseded |
| 1 | 801411401 |
КОРПУС Насос HOUSING Pump |
1 | discontinued |
| 10 | 801404625 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Крыльчатка SHIM Impeller |
8 | |
| 11 | 801403625 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 12 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
6 | |
| 13 | 19923088 |
ВИНТ (0.250-20 x 0.875) SCREW (.250-20 x .875) |
4 | |
| 14 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
4 | |
| 15 | 19923062 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
2 | |
| 16 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
2 | |
| 17 | 60411 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | |
| 18 | 801410 |
КРОНШТЕЙН Опора кабеля BRACKET Cable Support |
1 | |
| 19 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
1 | superseded |
| 2 | 827490 |
РУКАВ Смазка HOSE Lube |
1 | |
| 20 | 801406 |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 21 | 19924250 |
ВИНТ (0.312-18 x 2.50) SCREW (.312-18 x 2.50) |
2 | discontinued |
| 21 | 19924275 |
ВИНТ (0.312-18 x 2.75) SCREW (.312-18 x 2.75) |
2 | |
| 22 | 814806 |
ШАЙБА (0.344 x 0.688 x 0.065), нержавеющая сталь WASHER (.344 x .688 x .065) Stainless Steel |
4 | superseded |
| 23 | 19925125 |
ВИНТ (0.375-16 x 1.25) SCREW (.375-16 x 1.25) |
1 | |
| 24 | 853881 |
ПЕРЕХОДНИК ADAPTER |
1 | discontinued |
| 25 | 1993330 |
ВИНТ (M10 x 1.5 x 30) SCREW (M10 x 1.5 x 30) |
1 | discontinued |
| 26 | F8015 |
ШАЙБА WASHER |
6 | discontinued |
| 27 | 4000378 |
ВИНТ (M10 x 35), нержавеющая сталь SCREW (M10 x 35) Stainless Steel |
4 | superseded |
| 28 | 821327 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 3 | 80141440 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 4 | 80141240 |
КОРПУС Впуск HOUSING Intake |
1 | discontinued |
| 5 | 8271881 |
ОТДЕЛКА LINER |
1 | superseded |
| 6 | 801413401 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 7 | 827189 |
РУКАВ SLEEVE |
1 | |
| 8 | 827190 |
ГАЙКА NUT |
1 | |
| 9 | 801405625 |
КЛЮЧ Крыльчатка KEY Impeller |
1 |
