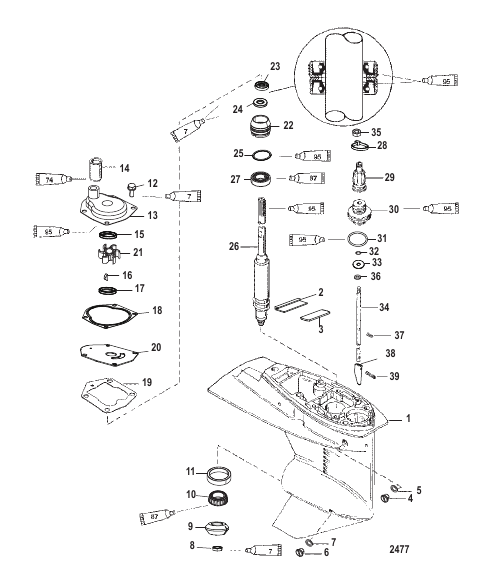

| # | Part Number | Description | Qty | Status |
|---|
| - |
821306A26 |
GEAR HOUSING ASSEMBLY (BLACK) SHORT
|
1 |
superseded
|
| - |
821306A27 |
GEAR HOUSING ASSEMBLY (GRAY) SHORT
|
1 |
superseded
|
| - |
821306A28 |
GEAR HOUSING ASSEMBLY (BLACK) LONG
|
1 |
superseded
|
| - |
821306A29 |
GEAR HOUSING ASSEMBLY (GRAY) LONG
|
1 |
superseded
|
| - |
828553A97 |
GASKET SET
|
1 |
|
| - |
823547A2 |
SEAL KIT
|
1 |
|
| - |
821354A2 |
REPAIR KIT Water Pump
|
1 |
|
| 1 |
821306A12 |
GEAR HOUSING ASSEMBLY (BASIC-BLACK)
|
1 |
superseded
|
| 1 |
821306A13 |
GEAR HOUSING ASSEMBLY (BASIC-GRAY
|
1 |
superseded
|
| 10 |
821321A2 |
BEARING ASSEMBLY
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 12 |
8248324 |
SCREW (M6 x 16)
|
4 |
|
| 13 |
821351A3 |
HOUSING ASSEMBLY Water Pump Upper
|
1 |
|
| 14 |
8235471 |
SEAL
|
1 |
|
| 15 |
8M0027721 |
WASHER
|
1 |
superseded
|
| 16 |
85119 |
KEY
|
1 |
superseded
|
| 17 |
8M0027721 |
WASHER
|
1 |
superseded
|
| 18 |
822189 |
GASKET Upper Water Pump
|
1 |
|
| 19 |
822217 |
GASKET Lower Water Pump
|
1 |
superseded
|
| 2 |
818226A1 |
SEAL/PLATE KIT
|
1 |
|
| 20 |
8213542 |
FACE PLATE
|
1 |
|
| 21 |
850893 |
IMPELLER
|
1 |
superseded
|
| 22 |
821307A2 |
BASE ASSEMBLY Water Pump
|
1 |
|
| 23 |
821309 |
SEAL
|
1 |
|
| 24 |
821310 |
SEAL
|
1 |
|
| 25 |
821308 |
O-RING (1.421 x .139)
|
1 |
|
| 26 |
822466A1 |
DRIVESHAFT (SHORT)
|
1 |
|
| 26 |
822159A1 |
DRIVESHAFT (LONG)
|
1 |
superseded
|
| 27 |
821311 |
BEARING Ball
|
1 |
|
| 28 |
823548 |
TIE STRAP
|
1 |
superseded
|
| 29 |
822158 |
BOOT
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Plate
|
1 |
|
| 30 |
821827 |
RETAINER
|
1 |
|
| 31 |
26855 |
O-RING (1.609 x .139)
|
1 |
|
| 32 |
85594 |
O-RING (.239 x .174)
|
1 |
|
| 33 |
814803 |
WASHER
|
1 |
|
| 34 |
822453A1 |
SHIFT SHAFT (SHORT)
|
1 |
|
| 34 |
821319A1 |
SHIFT SHAFT (LONG)
|
1 |
|
| 35 |
400212 |
NUT (M6) Stainless Steel (INCLUDED WITH REF #35)
|
1 |
|
| 36 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 37 |
85593 |
PIN (.078 x .437)
|
1 |
|
| 38 |
8213161 |
CAM Shift
|
1 |
|
| 39 |
822369 |
PIN (.125 x .625)
|
1 |
|
| 4 |
79953A2 |
SCREW KIT (.375-16 x .250)
|
1 |
superseded
|
| 5 |
19183 |
WASHER Fiber
|
1 |
superseded
|
| 6 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 7 |
19183 |
WASHER Fiber
|
1 |
superseded
|
| 8 |
55910 |
NUT (.437-20)
|
1 |
|
| 9 |
8221612 |
GEAR Pinion (12 TEETH)
|
1 |
superseded
|
