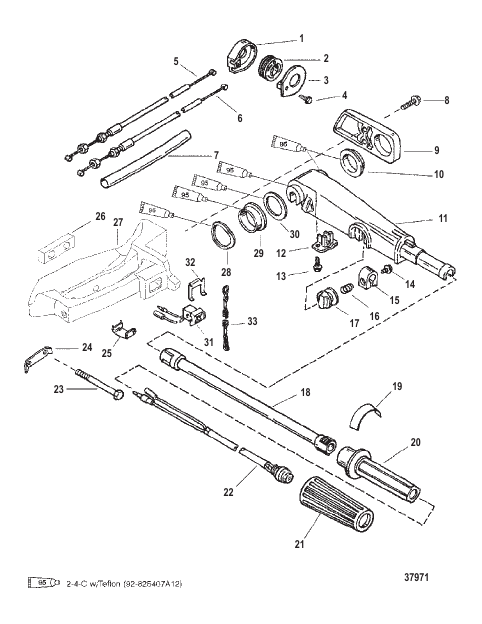

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
822148A7 |
COVER KIT
|
1 |
|
| 10 |
821477 |
BUSHING 1.485-1.475 Inside Diameter
|
1 |
|
| 11 |
828813F1 |
ARM (BLACK)
|
1 |
superseded
|
| 11 |
828813F2 |
ARM Steering Handle (GRAY)
|
1 |
superseded
|
| 12 |
822441 |
RETAINER
|
1 |
|
| 13 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
1 |
|
| 14 |
4000330 |
SCREW (M6 x 25)
|
1 |
superseded
|
| 15 |
821971 |
LOCK Throttle
|
1 |
superseded
|
| 16 |
96203 |
SPRING
|
1 |
|
| 17 |
821972 |
KNOB Throttle
|
1 |
superseded
|
| 18 |
821463A2 |
TILLER TUBE
|
1 |
superseded
|
| 19 |
8242001 |
DECAL (TURTLE/RABBIT)
|
1 |
superseded
|
| 2 |
822150 |
PULLEY
|
1 |
|
| 20 |
821465 |
HANDLE Throttle
|
1 |
|
| 21 |
99589 |
GRIP
|
1 |
superseded
|
| 22 |
823609A13 |
SWITCH ASSEMBLY
|
1 |
superseded
|
| 23 |
824848110 |
SCREW (M10 x 110)
|
2 |
|
| 24 |
816669F1 |
TAB WASHER
|
1 |
superseded
|
| 25 |
823687 |
CLIP
|
1 |
|
| 26 |
828569 |
SPACER
|
1 |
|
| 27 |
821455A4 |
BRACKET Tiller (BLACK)
|
1 |
|
| 27 |
821455A5 |
BRACKET Tiller (GRAY)
|
1 |
disc.
|
| 28 |
826792 |
WAVE WASHER
|
1 |
|
| 29 |
821477 |
BUSHING 1.485-1.475 Inside Diameter
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Case
|
1 |
|
| 30 |
827314 |
WASHER
|
1 |
|
| 31 |
11083A15 |
SWITCH
|
1 |
superseded
|
| 32 |
120441 |
RETAINER Brass
|
1 |
superseded
|
| 33 |
15920A54 |
LANYARD ASSEMBLY
|
1 |
superseded
|
| 4 |
812832 |
SCREW (#10-16 x .500)
|
1 |
superseded
|
| 5 |
4324212 |
CABLE ASSEMBLY Throttle (28.50 Inches)
|
1 |
|
| 6 |
4324213 |
CABLE ASSEMBLY Throttle (30.00 Inches)
|
1 |
|
| 7 |
960099 |
SLEEVE (12.00 Inches)
|
1 |
|
| 8 |
82526225 |
SCREW (M8 x 25 MM)
|
2 |
|
| 9 |
822407F1 |
COVER (BLACK)
|
1 |
superseded
|
| 9 |
822407F2 |
COVER (GRAY)
|
1 |
disc.
|
