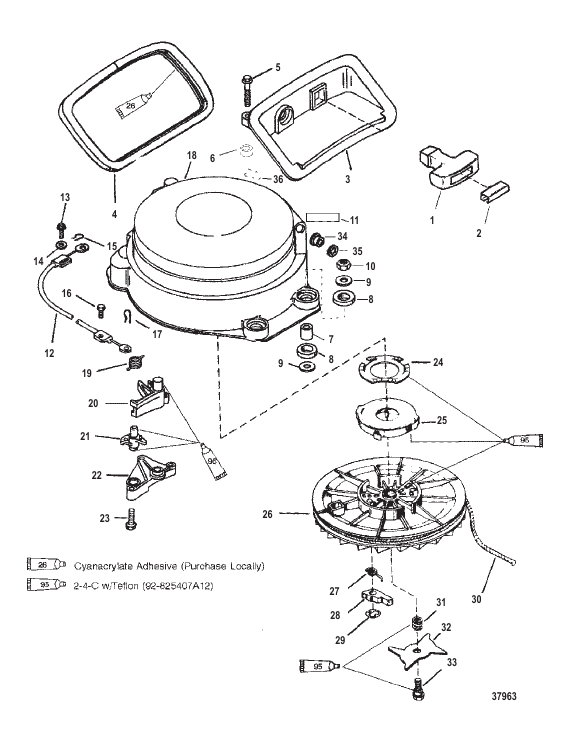

| # | Part Number | Description | Qty | Status |
|---|
| - |
821788A6 |
REST ASSEMBLY Starter Handle
|
1 |
disc.
|
| - |
816728A12 |
STARTER ASSEMBLY Recoil
|
1 |
superseded
|
| 1 |
85174A1 |
HANDLE ASSEMBLY
|
1 |
|
| 10 |
401196 |
NUT (M6)
|
4 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Decal-Timing
|
1 |
|
| 12 |
8167485 |
CABLE Interlock
|
1 |
superseded
|
| 13 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 14 |
73288 |
WASHER (.220 x .500 x .030) Stainless Steel
|
1 |
|
| 15 |
26811 |
COTTER PIN
|
1 |
|
| 16 |
812832 |
SCREW (#10-16 x .500)
|
1 |
superseded
|
| 17 |
27769 |
COTTER PIN
|
1 |
superseded
|
| 18 |
8167285 |
HOUSING
|
1 |
superseded
|
| 19 |
826791 |
SPRING
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Retaomer
|
1 |
|
| 20 |
8166903 |
LEVER
|
1 |
|
| 21 |
8167121 |
CAM
|
1 |
superseded
|
| 22 |
816711 |
RETAINER
|
1 |
|
| 23 |
8182491 |
SCREW (#10-16 x 1.00)
|
3 |
|
| 24 |
826229 |
LOCKWASHER SPRING
|
1 |
|
| 25 |
868571 |
SPRING
|
1 |
superseded
|
| 26 |
825269A1 |
SHEAVE Starter
|
1 |
superseded
|
| 27 |
868511 |
SPRING
|
2 |
superseded
|
| 28 |
868501 |
CAM
|
2 |
|
| 29 |
868491 |
RING Retaining
|
2 |
superseded
|
| 3 |
NSS |
NOT SOLD SEPARATE Rest
|
1 |
|
| 30 |
12066A9 |
ROPE
|
1 |
superseded
|
| 31 |
868521 |
SPRING Cam
|
1 |
superseded
|
| 32 |
868531 |
CAM
|
1 |
superseded
|
| 33 |
826253 |
SCREW (.250-20 x .625)
|
1 |
|
| 34 |
42690 |
BUSHING
|
1 |
superseded
|
| 35 |
818853 |
RING Retaining
|
1 |
|
| 36 |
NSS |
NOT SOLD SEPARATE Decal-Caution-In Gear Idle
|
1 |
|
| 4 |
8249951 |
SEAL
|
1 |
superseded
|
| 5 |
4010630 |
SCREW (M6 x 30) Stainless Steel
|
2 |
|
| 6 |
830190 |
SPACER
|
2 |
|
| 7 |
816086 |
BUSHING
|
4 |
|
| 8 |
815795 |
GROMMET
|
8 |
|
| 9 |
69057 |
WASHER (.281 x .734 x .063)
|
8 |
|
