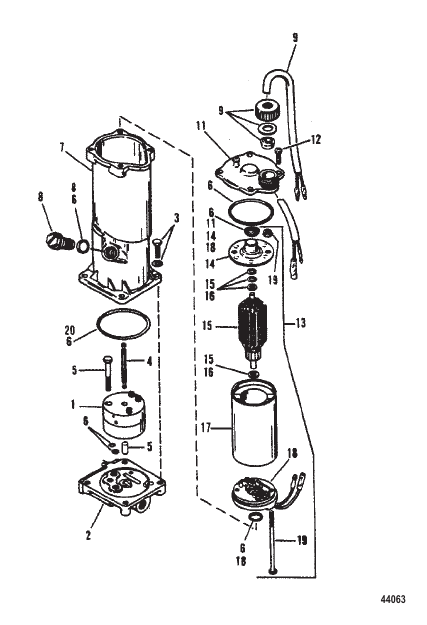

Pump/Motor Assembly
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| -- | 819480A1 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ PUMP/MOTOR ASSEMBLY |
1 | discontinued |
| 1 | 811702 |
КОМПЛЕКТ НАСОСА PUMP KIT |
1 | discontinued |
| 11 | 813445 |
КОМПЛЕКТ КОЛПАЧКА Резервуар CAP KIT Reservoir |
1 | discontinued |
| 12 | 813446 |
ВИНТ (4 шт.) SCREW (4 pcs) |
1 | discontinued |
| 13 | 813447 |
КОМПЛЕКТ ДВИГАТЕЛЯ MOTOR KIT |
1 | discontinued |
| 14 | 813448 |
КОЛПАЧОК END CAP |
1 | discontinued |
| 15 | 813449A1 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 16 | 813450 |
КОМПЛЕКТ УПОРНЫХ ШАЙБ THRUST WASHER KIT |
1 | discontinued |
| 17 | 813451 |
КОМПЛЕКТ КАРКАСА И МАГНИТОВ SHELL AND MAGNET KIT |
1 | discontinued |
| 18 | 813452 |
КОМПЛЕКТ ТОРЦЕВОГО КАРКАСА END FRAME KIT |
1 | discontinued |
| 19 | 813453 |
КОМПЛЕКТ БОЛТОВ И ГАЕК BOLT AND NUT KIT |
1 | discontinued |
| 2 | 823085 |
КОМПЛЕКТ КОЛЛЕКТОРА MANIFOLD KIT |
1 | discontinued |
| 20 | 819638 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 3 | 813436 |
КОМПЛЕКТ ВИНТОВ (4 шт.) SCREW KIT (4 pcs) |
1 | discontinued |
| 4 | 813437 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 5 | 811697 |
КОМПЛЕКТ ВИНТОВ И ШТИФТОВ SCREW AND PIN KIT |
1 | discontinued |
| 6 | 813439A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | superseded |
| 7 | 813434A1 |
РЕЗЕРВУАР RESERVOIR |
1 | discontinued |
| 8 | 813435 |
Комплект пробки PLUG KIT |
1 | superseded |
| 9 | 811698 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
