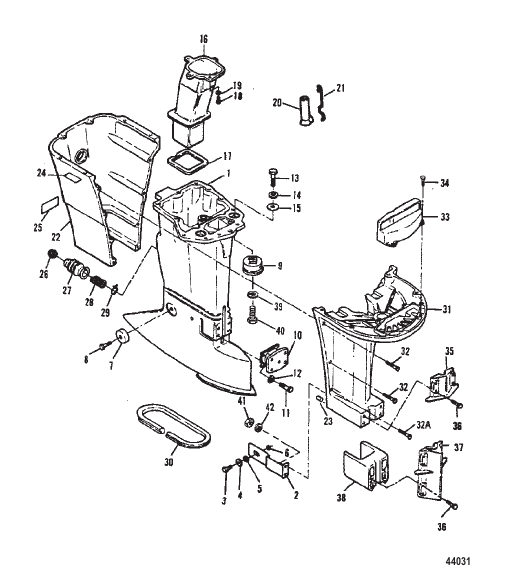

Driveshaft Housing
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 819432A2 |
КОМПЛЕКТ КОРПУСА Карданный вал – 20.00" (Окраш.) HOUSING KIT Driveshaft - 20.00 Inch (Painted) |
1 | discontinued |
| 1 | 819433A2 |
КОМПЛЕКТ КОРПУСА Карданный вал – 25.00" (Окраш.) HOUSING KIT Driveshaft - 25.00 Inch (Painted) |
1 | discontinued |
| 10 | F438346 |
КРЕПЛЕНИЕ АМОРТИЗАТОРА Нижняя часть SHOCK MOUNT Lower |
1 | superseded |
| 11 | F1822 |
ВИНТ (0.312-18 x 0.875) SCREW (.312-18 x .875) |
4 | superseded |
| 12 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
4 | |
| 13 | 19922075 |
ВИНТ (0.375-16 x 0.75) SCREW (.375-16 x .75) |
2 | discontinued |
| 14 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 15 | FA85355-1 |
КОМПЛЕКТ ШАЙБ Крепление верхнего амортизатора WASHER KIT Upper Shock Mount |
2 | discontinued |
| 16 | F85660-1 |
ТРУБА Выхлоп TUBE Exhaust |
1 | discontinued |
| 17 | F439736 |
УПЛОТНЕНИЕ Выхлопная труба SEAL Exhaust Tube |
1 | discontinued |
| 18 | 19934075 |
ВИНТ (0.250-20 x 0.75) SCREW (.250-20 X.75) |
4 | superseded |
| 19 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь (Для винтов без Dri Loc) LOCKWASHER (.250) Stainless Steel (For screws without Dri Loc) |
4 | |
| 2 | F720835-1 |
СКОБА Крепление нижнего амортизатора STRAP Shock Mount Lower |
2 | discontinued |
| 20 | 816515 |
ВОДОЗАБОРНАЯ КОЛОНКА 92A-92C И [0E000001] THRU [0E093699] STANDPIPE 92A THRU 92C & [0E000001] THRU [0E093699] |
2 | discontinued |
| 21 | F686491 |
ЗАЖИМ [0E000001] THRU [0E093699] CLIP [0E000001] THRU [0E093699] |
2 | discontinued |
| 22 | 819317F |
КРЫШКА Задняя часть, окраш. COVER Rear, Painted |
1 | superseded |
| 23 | F1664 |
ШТИФТ Пружина PIN Spring |
2 | discontinued |
| 24 | F717893 |
НАКЛЕЙКА Боковой [0E000001] THRU [0E009499] DECAL Side [0E000001] THRU [0E009499] |
2 | discontinued |
| 25 | F716374 |
НАКЛЕЙКА Задний [0E000001] THRU [0E009499] DECAL Rear [0E000001] THRU [0E009499] |
1 | discontinued |
| 26 | 816513 |
ВСТАВКА Крышка выхлопа холостого хода INSERT Idle Exhaust Boot |
1 | discontinued |
| 27 | F85130 |
ЧЕХОЛ Выхлоп холостого хода BOOT Idle Exhaust |
1 | superseded |
| 28 | F85380 |
ПРУЖИНА Крышка выхлопа холостого хода SPRING Idle Exhaust Boot |
1 | |
| 29 | F85772 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 3 | 826377 |
ВИНТ (.312-18X.75) SCREW (.312-18X.75) |
2 | discontinued |
| 30 | F178323 |
УПЛОТНЕНИЕ Корпус ведущего вала SEAL Driveshaft Housing |
1 | discontinued |
| 31 | FK719135F |
КОМПЛЕКТ КРЫШЕК Передняя часть, окраш. COVER KIT Front, Painted |
1 | discontinued |
| 32 | F2030 |
ВИНТ (0.250-20 x 1.250), нержавеющая сталь SCREW (.250-20 x 1.250) Stainless Steel |
4 | |
| 32A | F2288 |
ВИНТ (0.250-20 x 1.500) SCREW (.250-20 x 1.500) |
2 | discontinued |
| 33 | FK692779 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК Воздухозаборник BAFFLE Air Intake |
1 | discontinued |
| 34 | 41772 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
4 | discontinued |
| 35 | F720606F |
ПРОБКА 20", окраш. CAP 20 Inch, Painted |
1 | discontinued |
| 36 | F2312 |
ВИНТ (5/16-18x2.12) SCREW (5/16-18X2.12) |
4OR8 | discontinued |
| 37 | F721606F |
ПРОБКА 25", окраш. CAP 25 Inch, Painted |
1 | discontinued |
| 38 | F631707F |
КРЫШКА Крепление амортизатора, 25", окраш. COVER Shock Mount, 25 Inch, Painted |
1 | discontinued |
| 39 | F8140 |
СТОПОРНАЯ ШАЙБА (0.50) LOCKWASHER (.50) |
2 | superseded |
| 4 | F513286 |
ШАЙБА WASHER |
2 | discontinued |
| 40 | 826577 |
ВИНТ (.500-13X.875) SCREW (.500-13X.875) |
2 | discontinued |
| 41 | 68292 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 42 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
4 | |
| 5 | 69150 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
2 | |
| 6 | F720201 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 7 | F438962 |
КРЕПЛЕНИЕ АМОРТИЗАТОРА Боковой Нижняя часть SHOCK MOUNT Side Lower |
2 | discontinued |
| 8 | F1263 |
ВИНТ (0.312-18 x 0.562) НЕРЖ SCREW (.312-18 x .562) SS |
2 | discontinued |
| 9 | F699965-1 |
КРЕПЛЕНИЕ Верхний амортизатор MOUNT Shock Upper |
2 | superseded |
