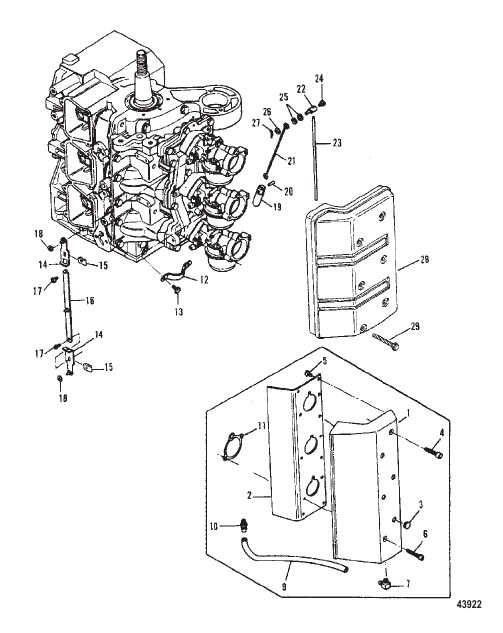

Intake Cover
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | F695861 |
КРЫШКА Впуск [0E000001] THRU [0E065371] COVER Intake [0E000001] THRU [0E065371] |
1 | superseded |
| 10 | FA698801 |
ФИТИНГ (С мерным колпачком) [0E000001] THRU [0E065371] FITTING (W/Metering Cup) [0E000001] THRU [0E065371] |
1 | discontinued |
| 11 | F481836 |
ПРОКЛАДКА Вход карбюратора [0E000001] THRU [0E065371] GASKET Carburetor Intake [0E000001] THRU [0E065371] |
3 | |
| 12 | F85317-3 |
ЗАЖИМ [0E000001] THRU [0E009499] CLAMP [0E000001] THRU [0E009499] |
1 | discontinued |
| 13 | 98253 |
ВИНТ (0.250-20 x 0.500) [0E000001] THRU [0E009499] SCREW (.250-20 x .500) [0E000001] THRU [0E009499] |
2 | |
| 14 | FA85193 |
КОНЦЕВАЯ ЧАСТЬ В СБОРЕ END ASSEMBLY |
2 | discontinued |
| 15 | F1693 |
ГАЙКА (№8-32) NUT (#8-32) |
2 | |
| 16 | FA85511 |
РЫЧАГ В СБОРЕ Дроссельная заслонка BAR ASSEMBLY Throttle |
1 | discontinued |
| 17 | F1064 |
ВИНТ (№8-32 x .375) SCREW (#8-32 x .375) |
2 | |
| 18 | 21058 |
Е-ОБРАЗНОЕ КОЛЬЦО Стопор E RING Retaining |
3 | discontinued |
| 19 | F391926-1 |
ПЛУНЖЕР Электромагнит обогатителя [0E000001] THRU [0E009499] PLUNGER Choke Solenoid [0E000001] THRU [0E009499] |
1 | discontinued |
| 2 | 819772 |
ПЕРЕХОДНИК Крышка впускного отверстия [0E000001] THRU [0E065371] ADAPTER Cover Intake [0E000001] THRU [0E065371] |
1 | discontinued |
| 20 | F2033 |
ШТИФТ Желоб [0E000001] THRU [0E009499] PIN Groove [0E000001] THRU [0E009499] |
1 | discontinued |
| 21 | F85925 |
ШТОК Электромагнит обогатителя [0E000001] THRU [0E009499] ROD Choke Solenoid [0E000001] THRU [0E009499] |
1 | discontinued |
| 22 | F184033-1 |
ШАРНИР Шток обогатителя [0E000001] THRU [0E009499] SWIVEL Choke Rod [0E000001] THRU [0E009499] |
3 | discontinued |
| 23 | F85509-1 |
СОЕДИНИТЕЛЬ Обогатитель [0E000001] THRU [0E009499] LINK Choke [0E000001] THRU [0E009499] |
1 | discontinued |
| 24 | F1059 |
ВИНТ (№6-32 x 0.250) [0E000001] THRU [0E009499] SCREW (#6-32 x .250) [0E000001] THRU [0E009499] |
3 | discontinued |
| 25 | F184579 |
УПЛОТНЕНИЕ [0E000001] THRU [0E009499] SEAL [0E000001] THRU [0E009499] |
6 | superseded |
| 26 | 27882 |
ШАЙБА [0E000001] THRU [0E009499] WASHER [0E000001] THRU [0E009499] |
1 | |
| 27 | 26953 |
ШПЛИНТ [0E000001] THRU [0E009499] COTTER PIN [0E000001] THRU [0E009499] |
1 | |
| 28 | 819987 |
АТТЕНЮАТОР В СБОРЕ [0E065372] THRU [0E093699] ATTENUATOR ASSEMBLY [0E065372] THRU [0E093699] |
1 | discontinued |
| 29 | 19934175 |
ВИНТ (0.250-20 x 1.750) [0E065372] THRU [0E093699] SCREW (.250-20 x 1.750) [0E065372] THRU [0E093699] |
6 | discontinued |
| 3 | F53504 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0E000001] THRU [0E065371] GROMMET [0E000001] THRU [0E065371] |
3 | discontinued |
| 4 | 816742 |
ВИНТ (0.250-20 x 1.250) [0E000001] THRU [0E065371] SCREW (.250-20 x 1.250) [0E000001] THRU [0E065371] |
3 | |
| 5 | F1760 |
ВИНТ (№10-24 x 0.375) [0E000001] THRU [0E065371] SCREW (#10-24 x .375) [0E000001] THRU [0E065371] |
6 | discontinued |
| 6 | F2192 |
ВИНТ (0.250-20 x 1.750) [0E000001] THRU [0E065371] SCREW (.250-20 x 1.750) [0E000001] THRU [0E065371] |
3 | |
| 7 | 8181031 |
КОЛЕНЧАТЫЙ [0E000001] THRU [0E065371] ELBOW [0E000001] THRU [0E065371] |
1 | discontinued |
| 9 | 9912878 |
РУКАВ (0.187) (общая длина 26.00") Обрез. по необходимости [0E000001] THRU [0E065371] HOSE (.187) (26.00 Inches Bulk) Cut as Required [0E000001] THRU [0E065371] |
1 |
