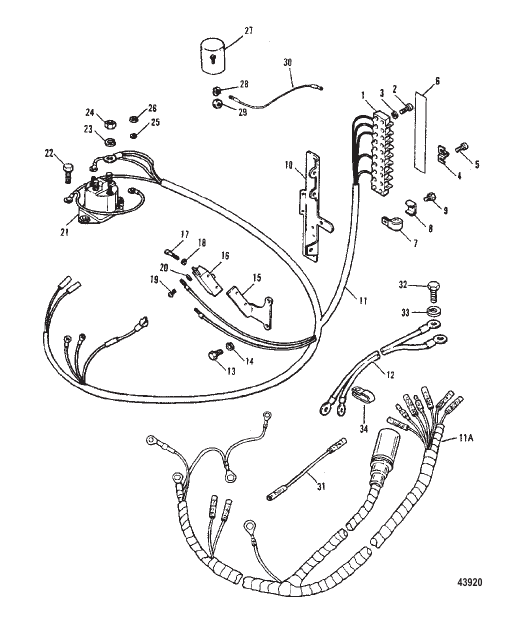

Electrical Components
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| -- | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| -- | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 1 | FA616497 |
БЛОК В СБОРЕ Клемма [0E000001] THRU [0E009499] BLOCK ASSEMBLY Terminal [0E000001] THRU [0E009499] |
1 | discontinued |
| 10 | F438493 |
КРОНШТЕЙН КЛЕММНАЯ КОЛОДКА [0E000001] THRU [0E009499] BRACKET TERMINAL BLOCK [0E000001] THRU [0E009499] |
1 | discontinued |
| 11 | 817459A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ ЭЛЕКТРОПРОВОДКА [0E000001] THRU [0E009499] HARNESS ASSEMBLY WIRING [0E000001] THRU [0E009499] |
1 | discontinued |
| 11A | 823392A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ ЭЛЕКТРОПРОВОДКА [0E009500] THRU [0E093699] HARNESS ASSEMBLY WIRING [0E009500] THRU [0E093699] |
1 | superseded |
| 12 | F381896-4 |
КАБЕЛЬ В СБОРЕ Аккумулятор CABLE ASSEMBLY Battery |
1 | superseded |
| 13 | F1532 |
ВИНТ (0.250-20 x 1.00) [0E000001] THRU [0E009499] SCREW (.250-20 x 1.00) [0E000001] THRU [0E009499] |
2 | superseded |
| 14 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь [0E000001] THRU [0E009499] LOCKWASHER (#10) Stainless Steel [0E000001] THRU [0E009499] |
2 | |
| 15 | F749551-1 |
КРОНШТЕЙН БЛОКИРОВОЧНЫЙ ПЕРЕКЛЮЧАТЕЛЬ [0E000001] THRU [0E009499] BRACKET INTERLOCK SWITCH [0E000001] THRU [0E009499] |
1 | discontinued |
| 16 | F84449 |
ПЕРЕКЛЮЧАТЕЛЬ БЛОКИРОВКА [0E000001] THRU [0E009499] SWITCH INTERLOCK [0E000001] THRU [0E009499] |
1 | discontinued |
| 17 | F2193 |
ВИНТ (№6-32 x 0.875) [0E000001] THRU [0E009499] SCREW (#6-32 x .875) [0E000001] THRU [0E009499] |
2 | discontinued |
| 18 | 27882 |
ШАЙБА [0E000001] THRU [0E009499] WASHER [0E000001] THRU [0E009499] |
2 | |
| 19 | 69080 |
ВИНТ (№6-32 x 0.250) [0E000001] THRU [0E009499] SCREW (#6-32 x .250) [0E000001] THRU [0E009499] |
2 | discontinued |
| 2 | 41069 |
ВИНТ (№10-24 x 0.750) [0E000001] THRU [0E009499] SCREW (#10-24 x .750) [0E000001] THRU [0E009499] |
2 | |
| 20 | F1704 |
ШАЙБА (№6, ВНУТР.) [0E000001] THRU [0E009499] WASHER (#6 INTERNAL) [0E000001] THRU [0E009499] |
2 | discontinued |
| 21 | F460917-1 |
РЕЛЕ СТАРТЕР [0E000001] THRU [0E093699] RELAY STARTER [0E000001] THRU [0E093699] |
1 | superseded |
| 22 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь [0E000001] THRU [0E093699] SCREW (.250-20 x .750) Stainless Steel [0E000001] THRU [0E093699] |
2 | |
| 23 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) [0E000001] THRU [0E093699] LOCKWASHER (.312) [0E000001] THRU [0E093699] |
2 | |
| 24 | 68292 |
ГАЙКА (0.312-18) [0E000001] THRU [0E093699] NUT (.312-18) [0E000001] THRU [0E093699] |
2 | superseded |
| 25 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь [0E000001] THRU [0E093699] LOCKWASHER (#10) Stainless Steel [0E000001] THRU [0E093699] |
2 | |
| 26 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь [0E000001] THRU [0E093699] NUT (#10-32) Stainless Steel [0E000001] THRU [0E093699] |
2 | |
| 27 | F654924-1 |
ЭЛЕКТРОМАГНИТ ОБОГАТИТЕЛЬ [0E000001] THRU [0E009499] SOLENOID CHOKE [0E000001] THRU [0E009499] |
1 | superseded |
| 28 | F8056 |
СТОПОРНАЯ ШАЙБА (№8) [0E000001] THRU [0E009499] LOCKWASHER (#8) [0E000001] THRU [0E009499] |
1 | discontinued |
| 29 | F1647 |
ГАЙКА (№8-32) [0E000001] THRU [0E009499] NUT (#8-32) [0E000001] THRU [0E009499] |
1 | discontinued |
| 3 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь [0E000001] THRU [0E009499] LOCKWASHER (#10) Stainless Steel [0E000001] THRU [0E009499] |
2 | |
| 30 | 819210A1 |
ПРОВОД [0E000001] THRU [0E009499] WIRE [0E000001] THRU [0E009499] |
1 | discontinued |
| 31 | 825275A1 |
КАБЕЛЬ В СБОРЕ (ЧЕРНЫЙ/ЖЕЛТЫЙ) [0E039024] THRU [0E093699] CABLE ASSEMBLY (BLACK/YELLOW) [0E039024] THRU [0E093699] |
1 | discontinued |
| 32 | F2000 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
1 | superseded |
| 33 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) ЗАЗЕМЛЕНИЕ LOCKWASHER (.312) GROUND |
1 | |
| 34 | F407446 |
ЗАЖИМ КАБЕЛЬ АККУМУЛЯТОРА CLAMP BATTERY CABLE |
1 | discontinued |
| 4 | F307317 |
ЗАЖИМ ЗАЗЕМЛЕНИЕ [0E000001] THRU [0E009499] CLIP GROUND [0E000001] THRU [0E009499] |
2 | discontinued |
| 5 | 41069 |
ВИНТ (№10-24 x 0.750) [0E000001] THRU [0E009499] SCREW (#10-24 x .750) [0E000001] THRU [0E009499] |
2 | |
| 6 | F529398-1 |
НАКЛЕЙКА ЭЛЕКТРОПРОВОДКА [0E000001] THRU [0E009499] DECAL WIRING [0E000001] THRU [0E009499] |
1 | discontinued |
| 7 | F289446-1 |
ЗАЖИМ [0E000001] THRU [0E009499] CLAMP [0E000001] THRU [0E009499] |
1 | discontinued |
| 8 | F438668 |
ФИКСАТОР КАБЕЛЬ [0E000001] THRU [0E009499] RETAINER CABLE [0E000001] THRU [0E009499] |
1 | discontinued |
| 9 | 34939 |
ВИНТ (0.250-20 x 0.500) [0E000001] THRU [0E009499] SCREW (.250-20 x .500) [0E000001] THRU [0E009499] |
1 | discontinued |
