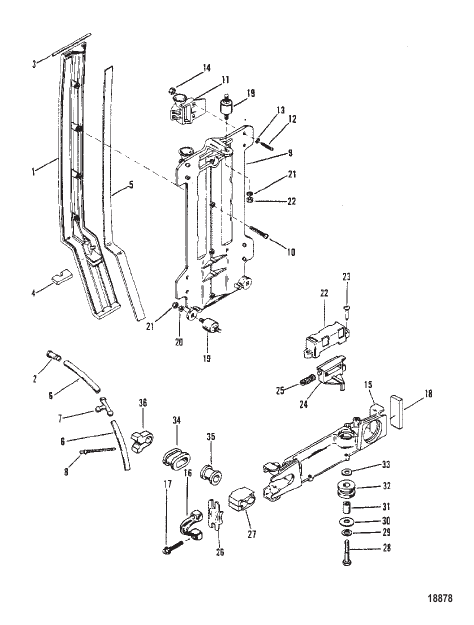

Cowl Mounting Brackets
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 76258A2 |
КРОНШТЕЙН (ЧЕРНЫЙ) BRACKET (BLACK) |
1 | discontinued |
| 1 | 76258A3 |
КРОНШТЕЙН (СЕРЫЙ) BRACKET (GRAY) |
1 | discontinued |
| 1 | 76258A4 |
КРОНШТЕЙН (УСТРИЦА) BRACKET (OYSTER) |
1 | superseded |
| 10 | 66687 |
ВИНТ (#10-32 x 1,50) SCREW (#10-32 x 1.50) |
4 | |
| 11 | 85651 |
ЖИЛЬЕ (ПОРТ) HOUSING (PORT) |
2 | discontinued |
| 11 | 85650 |
КОРПУС (ПРАВЫЙ БОРТ) HOUSING (STARBOARD) |
2 | discontinued |
| 12 | 31294 |
ВИНТ (1 дюйм) SCREW (1") |
8 | superseded |
| 13 | 20583 |
ШАЙБА WASHER |
8 | |
| 14 | 20361 |
ГАЙКА (.250-28) NUT (.250-28) |
8 | superseded |
| 15 | 88623A1 |
КРОНШТЕЙН [USA-5875203/AUS-8072022] и ниже BRACKET [USA-5875203/AUS-8072022] & Below |
1 | discontinued |
| 15 | 92009T |
КРОНШТЕЙН [5875204] ПРОХОДНОЙ [6618750] BRACKET [5875204] THRU [6618750] |
1 | discontinued |
| 15 | 99424 |
КРОНШТЕЙН (черный) [6618751] и выше BRACKET (Black) [6618751] & Up |
1 | discontinued |
| 15 | 99424T6 |
КРОНШТЕЙН (серый) [6618751] и выше BRACKET (Gray) [6618751] & Up |
1 | discontinued |
| 15 | 99424T10 |
КРОНШТЕЙН (Устрица) BRACKET (Oyster) |
1 | superseded |
| 16 | 88621 |
ФИКСАТОР [6618750] и ниже RETAINER [6618750] & Below |
1 | discontinued |
| 16 | 99447T |
ФИКСАТОР [6618751] И выше RETAINER [6618751] & Up |
1 | superseded |
| 17 | 89900 |
ВИНТ (#10-24 x 1,00) SCREW (#10-24 x 1.00) |
2 | discontinued |
| 18 | 67260 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 19 | 90435 |
МОНТАЖ MOUNT |
3 | |
| 2 | 76256 |
НАСАДКА (ЧЕРНО-СЕРАЯ) NOZZLE (BLACK & GRAY) |
1 | discontinued |
| 2 | 762561 |
НАСАДКА (УСТРИЦА) NOZZLE (OYSTER) |
1 | discontinued |
| 2 | 52889 |
ФОРСУНКА (КРЕПЛЕНИЕ ВИНТОМ /10-35519) NOZZLE (SCREW ATTACHING /10-35519) |
1 | discontinued |
| 20 | 21249 |
ШАЙБА WASHER |
6 | |
| 21 | 20361 |
ГАЙКА (.250-28) NUT (.250-28) |
6 | superseded |
| 22 | 67241 |
ЖИЛЬЕ HOUSING |
1 | |
| 23 | 92051 |
ВИНТ (10-16 x 0,75) SCREW (10-16 x .75) |
2 | |
| 24 | 76264 |
ЗАЩЕЛКА [6618750] и ниже LATCH [6618750] & Below |
1 | discontinued |
| 24 | 87608 |
ЗАЩЕЛКА Обтекатель [6618751] и выше LATCH Cowl [6618751] & Up |
1 | discontinued |
| 25 | 60295 |
ВЕСНА SPRING |
1 | discontinued |
| 26 | 88622 |
ТАРЕЛКА PLATE |
1 | discontinued |
| 27 | 99391 |
ФИКСАТОР [6618751] И выше RETAINER [6618751] & Up |
1 | discontinued |
| 28 | 69067 |
ВИНТ (0,250-20 x 1,375) [6618751] и выше SCREW (.250-20 x 1.375) [6618751] & Up |
2 | |
| 29 | 20346 |
ШАЙБА (МАЛАЯ) [6618751] и выше WASHER (SMALL) [6618751] & Up |
4 | superseded |
| 3 | 67984 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 30 | 35280 |
ШАЙБА (0,255 x 0,620 x 0,030) Нержавеющая сталь (БОЛЬШАЯ) [6618751] и выше WASHER (.255 x .620 x .030) Stainless Steel (LARGE) [6618751] & Up |
4 | |
| 31 | 88180 |
ВТУЛКА [6618751] И выше BUSHING [6618751] & Up |
2 | discontinued |
| 32 | 88033 |
ВТУЛКА [6618751] и выше GROMMET [6618751] & Up |
2 | discontinued |
| 33 | 28927 |
ШАЙБА [6618751] и выше WASHER [6618751] & Up |
2 | superseded |
| 34 | 67272 |
ВТУЛКА GROMMET |
2 | discontinued |
| 35 | 87743 |
ВТУЛКА GROMMET |
1 | discontinued |
| 36 | 67739 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 4 | 67228 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 5 | 67999 |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 6 | 99127109 |
ЛИНИЯ (объем 57,00 дюймов) TELL TALE LINE (57.00 Inches Bulk) TELL TALE |
2 | superseded |
| 7 | 90824 |
ТРОЙНИК [USA-5875204/AUS-8072023] и выше TEE [USA-5875204/AUS-8072023] & Up |
1 | superseded |
| 8 | 61990 |
РЕМЕНЬ ДЛЯ СВЯЗИ (14,00 дюймов) TIE STRAP (14.00 Inches) |
2 | |
| 9 | 86386A1 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | discontinued |
