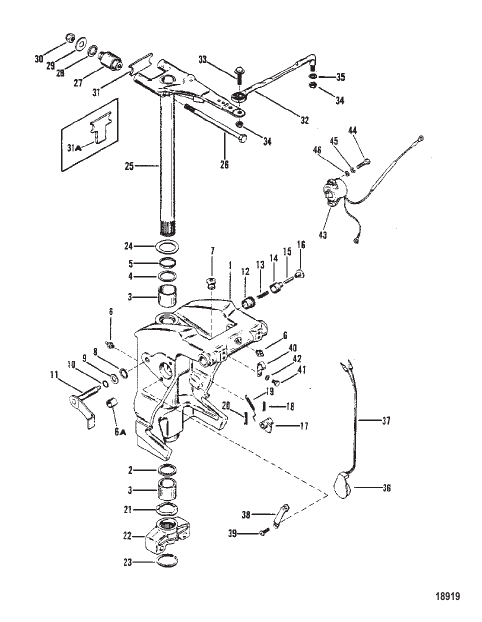

Swivel Bracket and Steering Arm
Parts (61)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК [ME-6042946/MA-6038681] & Up GASKET SET [ME-6042946/MA-6038681] & Up |
1 | discontinued |
| - | 79583A81 |
КОМПЛЕКТ ПРОКЛАДОК [5866777] THRU [6042945] GASKET SET [5866777] THRU [6042945] |
1 | discontinued |
| - | NLA |
Не поставляется Набор прокладок (Сервисный бюллетень 81-8) [ME-5866776/MA-6038680] & Below No Longer Available Gasket Set (Service Bulletin 81-8) [ME-5866776/MA-6038680] & Below |
1 | |
| 1 | 9225A2 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ (Черный) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SWIVEL BRACKET ASSEMBLY (Black) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | superseded |
| 1 | 9225A4 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ (Серый) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SWIVEL BRACKET ASSEMBLY (Gray) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 1 | 8710A20 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ (Черный) [6616991] & Up SWIVEL BRACKET ASSEMBLY (Black) [6616991] & Up |
1 | superseded |
| 1 | 8710A18 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ (Серый) [6616991] & Up SWIVEL BRACKET ASSEMBLY (Gray) [6616991] & Up |
1 | superseded |
| 10 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] O-RING (.364. x .070) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
2 | |
| 11 | 85030A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (Левый борт) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] LEVER ASSEMBLY Tilt Lock (Port) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 11 | 85028A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (Правый борт) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] LEVER ASSEMBLY Tilt Lock (Starboard) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 12 | 86600 |
ВТУЛКА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] BUSHING [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 13 | 85367 |
ПРУЖИНА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SPRING [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 14 | 41052 |
ПЛУНЖЕР [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] PLUNGER [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 15 | 88876 |
ШПИЛЬКА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] STUD [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 16 | 86603 |
РУЧКА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] KNOB [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 17 | 864751 |
СОЕДИНИТЕЛЬНАЯ МУФТА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] COUPLING [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | |
| 18 | 87200 |
ШПЛИНТ [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] COTTER PIN [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
2 | discontinued |
| 19 | 88049 |
ПРУЖИНА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SPRING [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | |
| 2 | 87735 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 20 | 93861 |
ШПЛИНТ [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] COTTER PIN [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 21 | 78854 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 22 | 86580A1 |
ВИЛКА В СБОРЕ Нижняя часть (ЧЕРНЫЙ) YOKE ASSEMBLY Bottom (BLACK) |
1 | discontinued |
| 22 | 86580A2 |
ВИЛКА В СБОРЕ Нижняя часть (СЕРЫЙ) YOKE ASSEMBLY Bottom (GRAY) |
1 | superseded |
| 23 | 67684 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 24 | 67670 |
ШАЙБА WASHER |
1 | discontinued |
| 25 | 67706A46 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (Черный) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SWIVEL PIN ASSEMBLY (Black) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | superseded |
| 25 | 67706A47 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (Серый) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SWIVEL PIN ASSEMBLY (Gray) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | superseded |
| 25 | 67706A35 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (Черный) [6616991] & Up SWIVEL PIN ASSEMBLY (Black) [6616991] & Up |
1 | superseded |
| 25 | 67706A36 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (Серый) [6616991] & Up SWIVEL PIN ASSEMBLY (Gray) [6616991] & Up |
1 | superseded |
| 26 | 78689 |
ВИНТ (0.437-20 x 7.50) SCREW (.437-20 x 7.50) |
2 | superseded |
| 27 | 78687 |
КРЕПЛЕНИЕ (ВЕРХН.) MOUNT (UPPER) |
2 | superseded |
| 28 | 66921 |
ШАЙБА WASHER |
2 | |
| 29 | 814432 |
ШАЙБА WASHER |
2 | superseded |
| 3 | 67669 |
ВТУЛКА BUSHING |
2 | superseded |
| 30 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
2 | superseded |
| 31 | 67754 |
УПОР [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] BUMPER [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 31A | 88882 |
УПОР Верхняя вилка [6616991] & Up BUMPER Top Yoke [6616991] & Up |
1 | |
| 32 | 92876A1 |
СОЕДИНИТЕЛЬ В СБОРЕ Рулевой механизм LINK ASSEMBLY Steering |
1 | superseded |
| 33 | 14000 |
ВИНТ (0.375-24 x 1.25) SCREW (.375-24 x 1.25) |
1 | superseded |
| 34 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
2 | superseded |
| 35 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь WASHER (.406 x .734 x .063) Stainless Steel |
2 | |
| 36 | 86485A5 |
ДАТЧИК В СБОРЕ Дифферент (Гнездо, клеммы) [ME-5503247/MA-5600162] & Up SENDER ASSEMBLY Trim (Female Terminals) [ME-5503247/MA-5600162] & Up |
1 | discontinued |
| 36 | 86485A6 |
ПЕРЕКЛЮЧАТЕЛЬ НАКЛОНА В СБОРЕ (Клеммы, вилка) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] TILT SWITCH ASSEMBLY (Male Terminals) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 37 | 65017A15 |
ЖГУТ ПРОВОДОВ В СБОРЕ (Гнездо, клеммы) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] HARNESS ASSEMBLY (Female Terminals) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 37 | 65017A14 |
ЖГУТ ПРОВОДОВ В СБОРЕ (Клеммы, вилка) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] HARNESS ASSEMBLY (Male Terminals) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | |
| 38 | 88342 |
СКОБА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] STRAP [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
2 | discontinued |
| 39 | 87926 |
ВИНТ (№10-32 x 0.500) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SCREW (#10-32 x .500) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
4 | discontinued |
| 4 | 33466 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 40 | 54457 |
J-ЗАЖИМ [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] J CLIP [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | |
| 41 | 98256 |
ВИНТ (0.250-28 x 0.500) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SCREW (.250-28 x .500) [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | discontinued |
| 42 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] WASHER (.281 x .500 x .060) Stainless Steel [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
1 | superseded |
| 43 | 95164A9 |
ДАТЧИК В СБОРЕ Дифферент [6616991] & Up SENDER ASSEMBLY Trim [6616991] & Up |
1 | superseded |
| 44 | 56682 |
ВИНТ (№10-24 x 0.750) [6616991] & Up SCREW (#10-24 x .750) [6616991] & Up |
2 | superseded |
| 45 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь [6616991] & Up LOCKWASHER (#10) Stainless Steel [6616991] & Up |
2 | |
| 46 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) [6616991] & Up WASHER (.203 x .406 x .040) [6616991] & Up |
2 | |
| 5 | 67668 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 6 | 74036 |
ФИТИНГ Смазка FITTING Grease |
4 | superseded |
| 6A | 99608 |
ВТУЛКА [6616991] & Up BUSHING [6616991] & Up |
1 | superseded |
| 7 | 88341 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] GROMMET [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
2 | discontinued |
| 8 | 85023 |
УПЛОТНЕНИЕ Масло [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] SEAL Oil [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
2 | |
| 9 | 87161 |
ШАЙБА [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] WASHER [ME-5503247/MA-5600162] THRU [ME-6616990/MA-6616990] |
2 |
