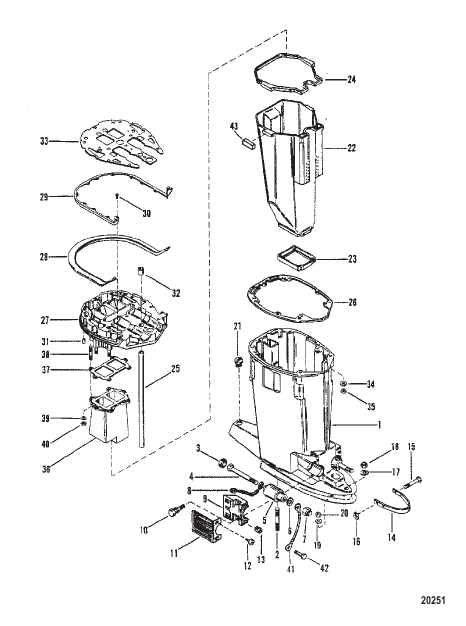

Driveshaft Housing and Exhaust Tube
Parts (56)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78148A1 |
ПРОСТАВКА В СБОРЕ (СВЕРХДЛИННЫЙ ВАЛ, XL) SPACER ASSEMBLY (X-LONG SHAFT) |
1 | discontinued |
| - | 20033 |
ШТИФТ Штифт (СВЕРХДЛИННЫЙ ВАЛ, XL) PIN Dowel (X-LONG SHAFT) |
2 | superseded |
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК [ME-6042946/MA-6038681] & Up GASKET SET [ME-6042946/MA-6038681] & Up |
1 | discontinued |
| - | 79583A81 |
КОМПЛЕКТ ПРОКЛАДОК [5866777] THRU [6042945] GASKET SET [5866777] THRU [6042945] |
1 | discontinued |
| - | NLA |
Не поставляется Набор прокладок (Сервисный бюллетень 81-8) [ME-5866776/MA-6038680] & Below No Longer Available Gasket Set (Service Bulletin 81-8) [ME-5866776/MA-6038680] & Below |
1 | |
| 1 | 7315A7 |
КОРПУС В СБОРЕ Карданный вал (Черный) [ME-5432021] & Below HOUSING ASSEMBLY Driveshaft (Black) [ME-5432021] & Below |
1 | discontinued |
| 1 | 8343A7 |
КОРПУС В СБОРЕ Карданный вал (ЧЕРНЫЙ) [5432022] & Up HOUSING ASSEMBLY Driveshaft (BLACK) [5432022] & Up |
1 | discontinued |
| 1 | 8343A8 |
КОРПУС В СБОРЕ Карданный вал (Серый) HOUSING ASSEMBLY Driveshaft (Gray) |
1 | discontinued |
| 10 | 66727 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
4 | |
| 11 | 67077T |
КРЫШКА Черный (ЧЕРНЫЙ) COVER Black (BLACK) |
2 | superseded |
| 11 | 67077T6 |
КРЫШКА (СЕРЫЙ) COVER (GRAY) |
2 | superseded |
| 12 | 88417 |
ВИНТ (№12-24 x 0.620) SCREW (#12-24 x .620) |
4 | |
| 13 | 35521 |
ГАЙКА NUT |
4 | |
| 14 | 67703 |
СКОБА [6616990] & Below STRAP [6616990] & Below |
1 | discontinued |
| 15 | 67769 |
ВИНТ (0.375-24 x 4.00) [6616990] & Below SCREW (.375-24 x 4.00) [6616990] & Below |
1 | discontinued |
| 16 | 25269 |
ГАЙКА (.375-24) [6616990] & Below NUT (.375-24) [6616990] & Below |
1 | discontinued |
| 17 | 73862 |
ШАЙБА WASHER |
1 | discontinued |
| 18 | 29489 |
ГАЙКА NUT |
1 | discontinued |
| 19 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
2 | |
| 2 | 56295 |
ШПИЛЬКА (0.437 x 2.69) (ДЛИННЫЙ ВАЛ) STUD (.437 x 2.69) (LONG SHAFT) |
2 | |
| 2 | 74732 |
ШПИЛЬКА (СВЕРХДЛИННЫЙ ВАЛ, XL) STUD (X-LONG SHAFT) |
2 | discontinued |
| 20 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
2 | superseded |
| 21 | 64649 |
ПРОБКА PLUG |
1 | |
| 22 | 67075 |
ТРУБА Выхлоп [ME-5432021] & Below TUBE Exhaust [ME-5432021] & Below |
1 | discontinued |
| 22 | 89743 |
ТРУБА Выхлоп [ME-5432022] & Up TUBE Exhaust [ME-5432022] & Up |
1 | discontinued |
| 23 | 66350 |
УПЛОТНЕНИЕ (НИЖНЯЯ ЧАСТЬ) SEAL (LOWER) |
1 | superseded |
| 24 | 86027 |
УПЛОТНЕНИЕ (ВЕРХН.) SEAL (UPPER) |
1 | |
| 25 | 67295 |
ТРУБА Вода (ДЛИННЫЙ ВАЛ) TUBE Water (LONG SHAFT) |
1 | superseded |
| 25 | 74729 |
ТРУБА (СВЕРХДЛИННЫЙ ВАЛ, XL) TUBE (X-LONG SHAFT) |
1 | superseded |
| 26 | 991732 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 27 | 78067A1 |
ПЛАСТИНА В СБОРЕ [ME-5432021] & Below PLATE ASSEMBLY [ME-5432021] & Below |
1 | discontinued |
| 27 | 41945A6 |
ПЛАСТИНА В СБОРЕ [ME-5432022] & Up PLATE ASSEMBLY [ME-5432022] & Up |
1 | discontinued |
| 28 | 707482 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 29 | 68011 |
КРОНШТЕЙН BRACKET |
1 | |
| 3 | 25067 |
УПОР BUMPER |
2 | discontinued |
| 30 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
12 | |
| 31 | 20033 |
ШТИФТ Штифт PIN Dowel |
2 | superseded |
| 32 | 38970 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 33 | 991772 |
ПРОКЛАДКА GASKET |
1 | |
| 34 | 25970 |
ШАЙБА WASHER |
10 | superseded |
| 35 | 69254 |
ГАЙКА NUT |
10 | |
| 36 | 41942 |
УДЛИНИТЕЛЬ EXTENSION |
1 | superseded |
| 37 | 78246 |
ПРОКЛАДКА [6616990] & Below GASKET [6616990] & Below |
1 | superseded |
| 38 | 66021 |
ШПИЛЬКА STUD |
6 | discontinued |
| 39 | 20533 |
ШАЙБА WASHER |
6 | |
| 4 | 63474 |
ВИНТ (0.500-20 x 6.00) SCREW (.500-20 x 6.00) |
2 | superseded |
| 40 | 30506 |
ГАЙКА (0.250-28) NUT (.250-28) |
6 | |
| 41 | 88238A2 |
КАБЕЛЬ В СБОРЕ Заземление [6616991] & Up CABLE ASSEMBLY Ground [6616991] & Up |
1 | superseded |
| 42 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь [6616991] & Up SCREW (.250-20 x .500) Stainless Steel [6616991] & Up |
1 | |
| 43 | 65638 |
ЧЕХОЛ [ME-5432021] & Below BOOT [ME-5432021] & Below |
2 | discontinued |
| 5 | 78249 |
КРЕПЛЕНИЕ MOUNT |
2 | discontinued |
| 5 | 77327 |
КРЕПЛЕНИЕ (УСИЛЕННЫЕ) MOUNT (HEAVY DUTY) |
1 | |
| 6 | 49339 |
ШАЙБА (0.8125) WASHER (.8125) |
2 | |
| 7 | 25096 |
ГАЙКА NUT |
2 | discontinued |
| 8 | 88238A1 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 9 | 67076 |
ЗАЖИМ CLAMP |
2 | superseded |
