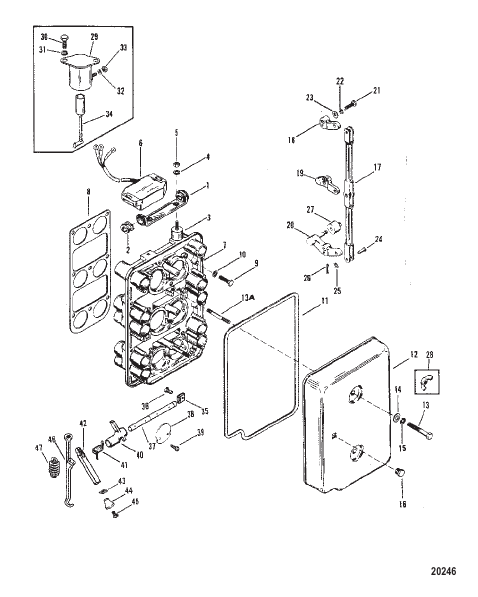

Choke Plate and Throttle Levers
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК [ME-6042946/MA-6038681] & Up GASKET SET [ME-6042946/MA-6038681] & Up |
1 | discontinued |
| - | 79583A81 |
КОМПЛЕКТ ПРОКЛАДОК [5866777] THRU [6042945] GASKET SET [5866777] THRU [6042945] |
1 | discontinued |
| - | NLA |
Не поставляется Набор прокладок (Сервисный бюллетень 81-8) [ME-5866776/MA-6038680] & Below No Longer Available Gasket Set (Service Bulletin 81-8) [ME-5866776/MA-6038680] & Below |
1 | |
| 1 | 67245T |
КРОНШТЕЙН КРОНШТЕЙН КОЖУХА – ВЕРХНИЙ BRACKET COWL MOUNTING - UPPER |
1 | discontinued |
| 10 | 20583 |
ШАЙБА WASHER |
6 | |
| 11 | 672751 |
ПРОКЛАДКА GASKET |
1 | |
| 12 | 67246T |
КРЫШКА COVER |
1 | discontinued |
| 13 | 98255 |
ВИНТ (0.250-20 x 2.25) [ME-6443213/MA-6443818] & Up SCREW (.250-20 x 2.25) [ME-6443213/MA-6443818] & Up |
2 | discontinued |
| 13A | 33071 |
ШПИЛЬКА [ME-6443212/MA-6443817] & Below STUD [ME-6443212/MA-6443817] & Below |
2 | discontinued |
| 14 | 21631 |
ШАЙБА (0.255 x 0.625 x 0.0312) WASHER (.255 x .625 x .0312) |
2 | superseded |
| 15 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 16 | 90585 |
ПРОБКА PLUG |
1 | discontinued |
| 17 | 67760 |
СОЕДИНИТЕЛЬ Дроссельная заслонка LINK Throttle |
1 | discontinued |
| 18 | 67759 |
РЫЧАГ Дроссельная заслонка (ЦЕНТРАЛЬНАЯ/ВЕРХНЯЯ ЧАСТЬ)(БЕЗ ВПРЫСКА МАСЛА) LEVER Throttle (CENTER/UPPER)(NON OIL INJECTION) |
2 | discontinued |
| 18 | 67759 |
РЫЧАГ Дроссельная заслонка (ВЕРХН.) (ВПРЫСК МАСЛА) LEVER Throttle (UPPER)(OIL INJECTION) |
1 | discontinued |
| 19 | 41049 |
РЫЧАГ Дроссельная заслонка (ЦЕНТРАЛЬНАЯ ЧАСТЬ)(ВПРЫСК МАСЛА) LEVER Throttle (CENTER)(OIL INJECTION) |
1 | discontinued |
| 2 | 67272 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 20 | 67749 |
РЫЧАГ Дроссельная заслонка НИЖНЯЯ ЧАСТЬ LEVER Throttle LOWER |
1 | discontinued |
| 21 | 92501 |
ВИНТ (3/4") SCREW (3/4") |
3 | superseded |
| 22 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
3 | |
| 23 | 24676 |
ШАЙБА (0.200 x 0.440 x 0.032) WASHER (.200 x .440 x .032) |
3 | |
| 24 | 67297 |
ШТИФТ Вилка PIN Clevis |
3 | |
| 25 | 27736 |
ШАЙБА WASHER |
3 | superseded |
| 26 | 26953 |
ШПЛИНТ COTTER PIN |
3 | |
| 27 | 67748 |
РОЛИК ROLLER |
1 | |
| 28 | 26001 |
ГАЙКА [ME-6443212/MA-6443817] & Below NUT [ME-6443212/MA-6443817] & Below |
2 | |
| 29 | 54293A10 |
ЭЛЕКТРОМАГНИТНЫЙ КЛАПАН В СБОРЕ Обогатитель [USA-5503246/AUS-8062734] & Below SOLENOID ASSEMBLY Choke [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 3 | 90435 |
КРЕПЛЕНИЕ MOUNT |
2 | |
| 30 | 39349 |
ВИНТ (0.312-18 x 0.750), нержавеющая сталь [USA-5503246/AUS-8062734] & Below SCREW (.312-18 x .750) Stainless Steel [USA-5503246/AUS-8062734] & Below |
2 | |
| 31 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) [USA-5503246/AUS-8062734] & Below LOCKWASHER (.312) [USA-5503246/AUS-8062734] & Below |
2 | superseded |
| 32 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь [USA-5503246/AUS-8062734] & Below LOCKWASHER (#10) Stainless Steel [USA-5503246/AUS-8062734] & Below |
1 | |
| 33 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь [USA-5503246/AUS-8062734] & Below NUT (#10-32) Stainless Steel [USA-5503246/AUS-8062734] & Below |
1 | |
| 34 | 56074A11 |
ПЛУНЖЕР И ТЯГА [USA-5503246/AUS-8062734] & Below PLUNGER AND LINK [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 35 | 89041 |
ФИКСАТОР [USA-5503246/AUS-8062734] & Below RETAINER [USA-5503246/AUS-8062734] & Below |
3 | discontinued |
| 36 | 48408 |
ВИНТ (№10-16 x 0.500) [USA-5503246/AUS-8062734] & Below SCREW (#10-16 x .500) [USA-5503246/AUS-8062734] & Below |
3 | |
| 37 | 73861A1 |
ВАЛ В СБОРЕ Обогатитель [USA-5503246/AUS-8062734] & Below SHAFT ASSEMBLY Choke [USA-5503246/AUS-8062734] & Below |
3 | discontinued |
| 38 | 76040 |
ЗАСЛОНКА Обогатитель [USA-5503246/AUS-8062734] & Below SHUTTER Choke [USA-5503246/AUS-8062734] & Below |
6 | discontinued |
| 39 | 75898 |
ВИНТ [USA-5503246/AUS-8062734] & Below SCREW [USA-5503246/AUS-8062734] & Below |
12 | discontinued |
| 4 | 21249 |
ШАЙБА WASHER |
4 | |
| 40 | 90401 |
РЫЧАГ Вал обогатителя [USA-5503246/AUS-8062734] & Below LEVER Choke Shaft [USA-5503246/AUS-8062734] & Below |
3 | discontinued |
| 41 | 88578 |
ПРУЖИНА [USA-5503246/AUS-8062734] & Below SPRING [USA-5503246/AUS-8062734] & Below |
3 | discontinued |
| 42 | 73860 |
ШТОК Обогатитель – ручной [USA-5503246/AUS-8062734] & Below ROD Choke - Manual [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 43 | 67273 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [USA-5503246/AUS-8062734] & Below GROMMET [USA-5503246/AUS-8062734] & Below |
2 | discontinued |
| 44 | 67247 |
РУЧКА [USA-5503246/AUS-8062734] & Below KNOB [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 45 | 67262 |
ВИНТ [USA-5503246/AUS-8062734] & Below SCREW [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 46 | 67249 |
ШТОК Обогатитель [USA-5503246/AUS-8062734] & Below ROD Choke [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 47 | 88522 |
ПРУЖИНА [USA-5503246/AUS-8062734] & Below SPRING [USA-5503246/AUS-8062734] & Below |
1 | discontinued |
| 5 | 20361 |
ГАЙКА (0.250-28) NUT (.250-28) |
4 | superseded |
| 6 | 87076A4 |
СИСТЕМА РЕГУЛИРОВКИ СКОРОСТИ ХОЛОСТОГО ХОДА В СБОРЕ IDLE SPEED CONTROL ASSEMBLY |
1 | discontinued |
| 7 | 799831 |
ПЛАСТИНА [6616991] & Up PLATE [6616991] & Up |
1 | discontinued |
| 7 | 99390A4 |
ПЛАСТИНА В СБОРЕ Обогатитель [6616990] & Below PLATE ASSEMBLY Choke [6616990] & Below |
1 | discontinued |
| 8 | 672741 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 9 | 68000 |
ВИНТ (0.250-28 x 1.00) SCREW (.250-28 x 1.00) |
6 | discontinued |
