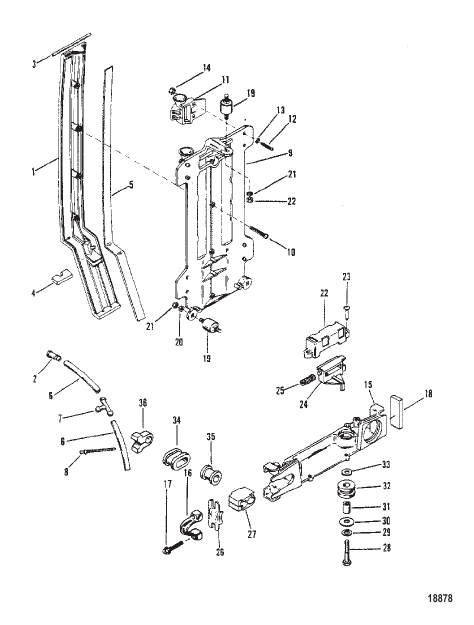

Cowl Mounting Brackets
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 76258A2 |
КРОНШТЕЙН ЗАДНИЙ КОЖУХ (ЧЕРНЫЙ) BRACKET REAR COWL (BLACK) |
1 | discontinued |
| 1 | 76258A3 |
КРОНШТЕЙН ЗАДНИЙ КОЖУХ (СЕРЫЙ) BRACKET REAR COWL (GRAY) |
1 | discontinued |
| 10 | 66687 |
ВИНТ (№10-32 x 1.50) SCREW (#10-32 x 1.50) |
4 | |
| 11 | 85651 |
КОРПУС (ЛЕВЫЙ БОРТ) HOUSING (PORT) |
2 | discontinued |
| 11 | 85650 |
КОРПУС (ПРАВЫЙ БОРТ) HOUSING (STARBOARD) |
2 | discontinued |
| 12 | 31294 |
ВИНТ (1") SCREW (1") |
8 | superseded |
| 13 | 20583 |
ШАЙБА WASHER |
8 | |
| 14 | 20361 |
ГАЙКА (0.250-28) NUT (.250-28) |
8 | superseded |
| 15 | 88623A1 |
КРОНШТЕЙН [ME-5866776/MA-5940580] & Below BRACKET [ME-5866776/MA-5940580] & Below |
1 | discontinued |
| 15 | 92009T |
КРОНШТЕЙН [ME-5866777/MA-5940581] THRU [ME-6443212/MA-6443817] BRACKET [ME-5866777/MA-5940581] THRU [ME-6443212/MA-6443817] |
1 | discontinued |
| 15 | 99424 |
КРОНШТЕЙН [ME-6443213/MA-6443818] & Up BRACKET [ME-6443213/MA-6443818] & Up |
1 | discontinued |
| 16 | 88621 |
ФИКСАТОР [6616990] & Below RETAINER [6616990] & Below |
1 | discontinued |
| 16 | 99447T |
ФИКСАТОР [6616991] & Up RETAINER [6616991] & Up |
1 | superseded |
| 17 | 89900 |
ВИНТ (№10-24 x 1.00) SCREW (#10-24 x 1.00) |
2 | discontinued |
| 18 | 67260 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 19 | 90435 |
КРЕПЛЕНИЕ MOUNT |
3 | |
| 2 | 76256 |
ШТУЦЕР NOZZLE |
1 | discontinued |
| 20 | 21249 |
ШАЙБА WASHER |
6 | |
| 21 | 20361 |
ГАЙКА (0.250-28) NUT (.250-28) |
6 | superseded |
| 22 | 67241 |
КОРПУС HOUSING |
1 | |
| 23 | 92051 |
ВИНТ (10-16 x 0.75) SCREW (10-16 x .75) |
2 | |
| 24 | 76264 |
ЗАЩЕЛКА [ME-6443212/MA-6443817] & Below LATCH [ME-6443212/MA-6443817] & Below |
1 | discontinued |
| 24 | 87608 |
ЗАЩЕЛКА Кожух [ME-6443213/MA-6443818] & Up LATCH Cowl [ME-6443213/MA-6443818] & Up |
1 | discontinued |
| 25 | 60295 |
ПРУЖИНА SPRING |
1 | discontinued |
| 26 | 88622 |
ПЛАСТИНА [ME-5866776/MA-5940580] & Below PLATE [ME-5866776/MA-5940580] & Below |
1 | discontinued |
| 26 | 88622 |
ПЛАСТИНА [ME-6443213/MA-6443818] & Up PLATE [ME-6443213/MA-6443818] & Up |
1 | discontinued |
| 27 | 99391 |
ФИКСАТОР [ME-6443213/MA-6443818] & Up RETAINER [ME-6443213/MA-6443818] & Up |
1 | discontinued |
| 28 | 69067 |
ВИНТ (0.250-20 x 1.375) [ME-6443213/MA-6443818] & Up SCREW (.250-20 x 1.375) [ME-6443213/MA-6443818] & Up |
2 | |
| 29 | 20346 |
ШАЙБА (МАЛЫЙ) [ME-6443213/MA-6443818] & Up WASHER (SMALL) [ME-6443213/MA-6443818] & Up |
4 | superseded |
| 3 | 67984 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 30 | 57427 |
ШАЙБА (БОЛЬШИЕ) [ME-6443213/MA-6443818] & Up WASHER (LARGE) [ME-6443213/MA-6443818] & Up |
4 | superseded |
| 31 | 88180 |
ВТУЛКА [ME-6443213/MA-6443818] & Up BUSHING [ME-6443213/MA-6443818] & Up |
2 | discontinued |
| 32 | 88033 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [ME-6443213/MA-6443818] & Up GROMMET [ME-6443213/MA-6443818] & Up |
2 | discontinued |
| 33 | 28927 |
ШАЙБА [ME-6443213/MA-6443818] & Up WASHER [ME-6443213/MA-6443818] & Up |
2 | superseded |
| 34 | 67272 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [ME-6443212/MA-6443817] & Below GROMMET [ME-6443212/MA-6443817] & Below |
2 | discontinued |
| 35 | 87743 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [ME-5866776/MA-5940580] & Below GROMMET [ME-5866776/MA-5940580] & Below |
1 | discontinued |
| 36 | 67739 |
УПЛОТНЕНИЕ [ME-5432021] & Below SEAL [ME-5432021] & Below |
1 | discontinued |
| 4 | 67228 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 5 | 67999 |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 6 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") КОНТРОЛЬНОЕ УСТРОЙСТВО LINE (57.00 Inches Bulk) TELL TALE |
2 | superseded |
| 7 | 90824 |
ТРОЙНИК [ME-586677/MA-5940581] & Up TEE [ME-586677/MA-5940581] & Up |
1 | superseded |
| 8 | 61990 |
ЛЕНТОЧНЫЙ ХОМУТ (14.00") TIE STRAP (14.00 Inches) |
2 | |
| 9 | 86386A1 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | discontinued |
