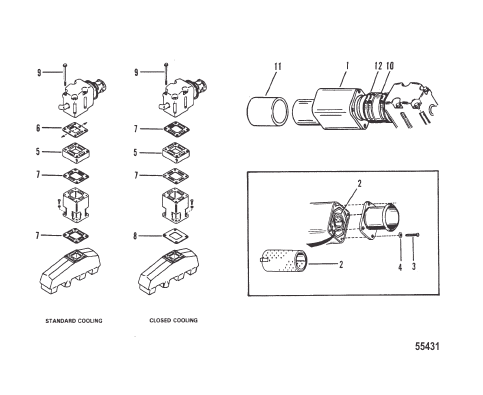

MUFFLER KIT
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 17705A3 |
КОМПЛЕКТ ГЛУШИТЕЛЕЙ MUFFLER KIT |
1 | discontinued |
| - | 17705A4 |
МОНТАЖНЫЙ КОМПЛЕКТ INSTALLATION KIT |
1 | discontinued |
| 1 | 17705A1 |
ГЛУШИТЕЛЬ MUFFLER |
2 | discontinued |
| 10 | 44348 |
ТРУБА TUBE |
2 | superseded |
| 11 | 486594 |
РУКАВ HOSE |
2 | discontinued |
| 12 | 31765 |
ЗАЖИМ CLAMP |
16 | superseded |
| 2 | 17820A1 |
ЭЛЕМЕНТ В СБОРЕ ELEMENT ASSEMBLY |
2 | discontinued |
| 3 | 28667 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь SCREW (.250-20 x 1.00) Stainless Steel |
8 | |
| 4 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
8 | |
| 5 | 17833A1 |
ПОДЪЕМНЫЙ ПАТРУБОК В СБОРЕ RISER ASSEMBLY |
2 | superseded |
| 6 | 41813 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 7 | 871051 |
ПРОКЛАДКА GASKET |
4 | superseded |
| 8 | 41811 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 9 | 813722 |
ВИНТ (0.375-16 x 7.00) (7") SCREW (.375-16 x 7.00) (7") |
8 | discontinued |
| 9 | 813721 |
ВИНТ (8") SCREW (8") |
2 | discontinued |
