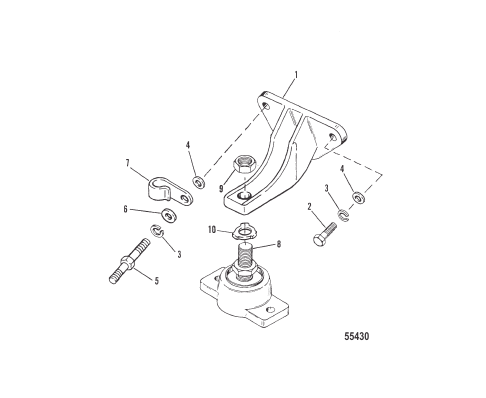

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 79550A1 |
КРОНШТЕЙН MOUNTING - ENGINE (FRONT) BRACKET MOUNTING - ENGINE (FRONT) |
2 | |
| 10 | 12657 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 2 | 68101 |
ВИНТ (0.375-16 x 1.375) BRACKET TO ENGINE (1-3/8") PORT SCREW (.375-16 x 1.375) BRACKET TO ENGINE (1-3/8") PORT |
2 | |
| 2 | 64900 |
БОЛТ BRACKET TO ENGINE (2") PORT BOLT BRACKET TO ENGINE (2") PORT |
1 | superseded |
| 2 | 68101 |
ВИНТ (0.375-16 x 1.375) BRACKET TO ENGINE (1-3/8") STARBOARD SCREW (.375-16 x 1.375) BRACKET TO ENGINE (1-3/8") STARBOARD |
2 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) BRACKET STUD PORT LOCKWASHER (.375) BRACKET STUD PORT |
2 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) BRACKET SCREW/STUD STARBOARD LOCKWASHER (.375) BRACKET SCREW/STUD STARBOARD |
2 | |
| 4 | 46132 |
ШАЙБА BRACKET SCREW PORT WASHER BRACKET SCREW PORT |
2 | |
| 4 | 46132 |
ШАЙБА BRACKET SCREW STARBOARD WASHER BRACKET SCREW STARBOARD |
2 | |
| 5 | 64066 |
ШПИЛЬКА (0.375-16 x 2.750), специальный BRACKET TO ENGINE STARBOARD STUD (.375-16 x 2.750) Special BRACKET TO ENGINE STARBOARD |
1 | superseded |
| 6 | 46132 |
ШАЙБА BRACKET STUD STARBOARD WASHER BRACKET STUD STARBOARD |
1 | |
| 7 | 78945 |
J-ОБРАЗНЫЙ ФИКСАТОР Harness Support J CLAMP Harness Support |
1 | |
| 8 | 814263A1 |
БАЗА В СБОРЕ ENGINE MOUNT BASE ASSEMBLY ENGINE MOUNT |
2 | |
| 9 | 49252 |
ГАЙКА JAM - ENGINE MOUNT BASE NUT JAM - ENGINE MOUNT BASE |
4 | superseded |
