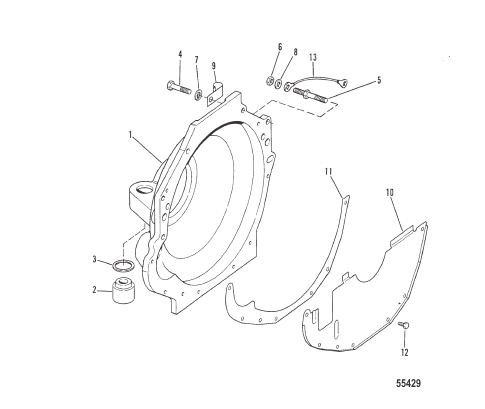

FLYWHEEL HOUSING
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 12675A7 |
КОРПУС В СБОРЕ Маховик HOUSING ASSEMBLY Flywheel |
1 | superseded |
| 10 | 13930A3 |
КРЫШКА (USE WITH 12" STARTER MOTOR) COVER (USE WITH 12" STARTER MOTOR) |
1 | discontinued |
| 10 | 812600A2 |
КРЫШКА В СБОРЕ (USE WITH 8" STARTER MOTOR) COVER ASSEMBLY (USE WITH 8" STARTER MOTOR) |
1 | superseded |
| 11 | 96274 |
ПРОКЛАДКА FLYWHEEL HOUSING SCREW GASKET FLYWHEEL HOUSING SCREW |
1 | discontinued |
| 12 | 32773 |
ВИНТ (0.250-20 x 0.875) COVER TO FLYWHEEL HOUSING SCREW (.250-20 x .875) COVER TO FLYWHEEL HOUSING |
7 | |
| 13 | 62826A6 |
КАБЕЛЬ В СБОРЕ Заземление (13.00"), черный FLYWHEEL HOUSING STUD CABLE ASSEMBLY Ground (13.00 Inches) Black FLYWHEEL HOUSING STUD |
1 | superseded |
| 2 | 88791 |
КРЕПЛЕНИЕ RUBBER - FLYWHEEL HOUSING MOUNT RUBBER - FLYWHEEL HOUSING |
2 | superseded |
| 3 | 99322 |
ПРОСТАВКА RUBBER MOUNT - FLYWHEEL HOUSING SPACER RUBBER MOUNT - FLYWHEEL HOUSING |
2 | |
| 4 | 37612 |
ВИНТ (0.375-16 x 1.250) FLYWHEEL HOUSING ATTACHING (1-1/4") SCREW (.375-16 x 1.250) FLYWHEEL HOUSING ATTACHING (1-1/4") |
4 | |
| 4 | 64900 |
БОЛТ FLYWHEEL HOUSING ATTACHING (2") BOLT FLYWHEEL HOUSING ATTACHING (2") |
1 | superseded |
| 5 | 64066 |
ШПИЛЬКА (0.375-16 x 2.750), специальный FLYWHEEL HOUSING ATTACHING (2-1/4") STUD (.375-16 x 2.750) Special FLYWHEEL HOUSING ATTACHING (2-1/4") |
1 | superseded |
| 6 | 32219 |
ГАЙКА (.375-16) FLYWHEEL HOUSING ATTACHING STUD NUT (.375-16) FLYWHEEL HOUSING ATTACHING STUD |
1 | |
| 7 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) FLYWHEEL HOUSING SCREW (3/8") LOCKWASHER (.375) FLYWHEEL HOUSING SCREW (3/8") |
7 | |
| 8 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) FLYWHEEL HOUSING SCREW - SPECIAL (3/8") WASHER (.390 x .750 x .093) FLYWHEEL HOUSING SCREW - SPECIAL (3/8") |
1 | |
| 9 | 78945 |
J-ОБРАЗНЫЙ ФИКСАТОР Harness Support-FLYWHEEL HOUSING STUD J CLAMP Harness Support-FLYWHEEL HOUSING STUD |
1 | |
| 9 | 92850 |
ЗАЖИМ CLAMP |
2 |
