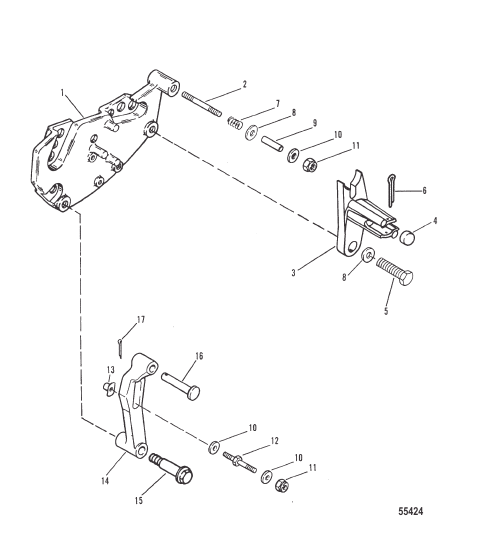

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 99237A10 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | superseded |
| 10 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
4 | |
| 11 | 13438 |
ГАЙКА (0.250-28) NUT (.250-28) |
2 | superseded |
| 12 | 96112 |
ШПИЛЬКА (0.250-28 x 2.00) Throttle Cable Anchor STUD (.250-28 x 2.00) Throttle Cable Anchor |
1 | superseded |
| 13 | 63341 |
ГАЙКА ТРОЙНИКА TEE NUT |
1 | |
| 14 | 138981 |
РЫЧАГ LEVER |
1 | superseded |
| 15 | 13743 |
ВИНТ (0.312-18 x 1.843) Shoulder SCREW (.312-18 x 1.843) Shoulder |
1 | superseded |
| 16 | 68402 |
ШТИФТ (0.250 x 1.13) PIN (.250 x 1.13) |
1 | |
| 17 | 21071 |
ШПЛИНТ COTTER PIN |
1 | superseded |
| 2 | 98798 |
ШПИЛЬКА STUD |
1 | superseded |
| 3 | 123811 |
ФИКСАТОР RETAINER |
1 | superseded |
| 4 | 98828 |
ПРОСТАВКА SPACER |
1 | superseded |
| 5 | 53167 |
ВИНТ (0.312-18 x 0.880) SCREW (.312-18 x .880) |
1 | superseded |
| 6 | 32857 |
ШПЛИНТ COTTER PIN |
1 | superseded |
| 7 | 98880 |
ПРУЖИНА SPRING |
1 | superseded |
| 8 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь WASHER (.330 x .750 x .060) Stainless Steel |
2 | |
| 9 | 98820 |
ПРОСТАВКА SPACER |
1 | disc. |
