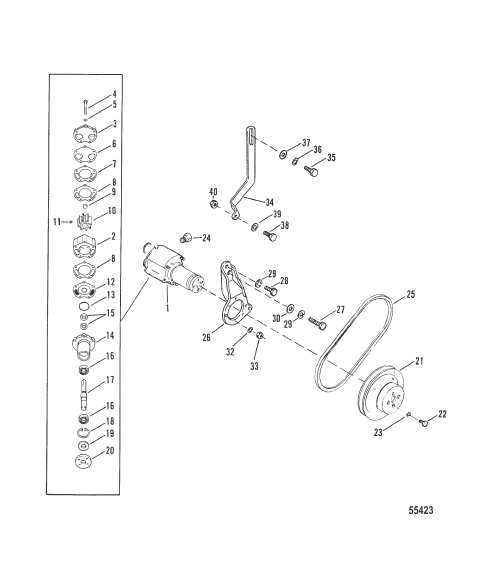

SEA WATER PUMP
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 72774A50 |
НАСОС В СБОРЕ Забортная вода – полный PUMP ASSEMBLY Sea Water - Complete |
1 | superseded |
| 10 | 593621 |
КРЫЛЬЧАТКА (USE W/O KEY) IMPELLER (USE W/O KEY) |
1 | superseded |
| 11 | 56662 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 12 | 94576 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА INNER WEAR PLATE INNER |
1 | superseded |
| 13 | 94288 |
СЧЕТВЕРЕННОЕ КОЛЬЦО PUMP HOUSING QUAD RING PUMP HOUSING |
1 | superseded |
| 14 | 94913A2 |
КОРПУС В СБОРЕ Водяной насос HOUSING ASSEMBLY Water Pump |
1 | |
| 15 | 90562 |
УПЛОТНЕНИЕ (1.254 x 0.312) WATER PUMP SHAFT SEAL (1.254 x .312) WATER PUMP SHAFT |
2 | |
| 16 | 72961 |
ПОДШИПНИК Шарик WATER PUMP SHAFT BEARING Ball WATER PUMP SHAFT |
2 | |
| 17 | 59501A1 |
ВАЛ WATER PUMP SHAFT WATER PUMP |
1 | |
| 18 | 23720 |
КОЛЬЦО Стопор BALL BEARING RETAINING RING Retaining BALL BEARING RETAINING |
1 | |
| 19 | 72785 |
УПЛОТНЕНИЕ WATER PUMP SHAFT SEAL WATER PUMP SHAFT |
1 | |
| 2 | 72774A40 |
КОРПУС В СБОРЕ Забортная вода – полный WATER PUMP BODY ASSEMBLY Sea Water - Complete WATER PUMP |
1 | discontinued |
| 20 | 47530 |
ВТУЛКА WATER PUMP PULLEY HUB WATER PUMP PULLEY |
1 | |
| 21 | 52822T |
ШКИВ WATER PUMP (CAST) PULLEY WATER PUMP (CAST) |
1 | discontinued |
| 22 | 47277 |
ВИНТ (0.312-24 x 0.750) PULLEY (3/4") SCREW (.312-24 x .750) PULLEY (3/4") |
4 | |
| 23 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) PULLEY SCREW LOCKWASHER (.312-24) PULLEY SCREW |
4 | |
| 24 | 32802 |
ПРОБКА Труба (0.125-27) PIPE (FOR WATER PUMP BODY) PLUG Pipe (.125-27) PIPE (FOR WATER PUMP BODY) |
1 | superseded |
| 25 | 13457T |
РЕМЕНЬ WATER PUMP (30") BELT WATER PUMP (30") |
1 | superseded |
| 26 | 15295T |
КРОНШТЕЙН WATER PUMP (STAMPED) BRACKET WATER PUMP (STAMPED) |
1 | |
| 27 | 47461 |
ВИНТ (0.437-14 x 1.00) WATER PUMP BRACKET (1") SCREW (.437-14 x 1.00) WATER PUMP BRACKET (1") |
1 | |
| 28 | 17965 |
ВИНТ (0.437-14 x 0.70) WATER PUMP BRACKET SCREW (.437-14 x .70) WATER PUMP BRACKET |
1 | discontinued |
| 29 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) BRACKET SCREW LOCKWASHER (.437) BRACKET SCREW |
1 | |
| 3 | 87631A1 |
КРЫШКА WATER PUMP COVER WATER PUMP |
1 | superseded |
| 30 | 27025 |
ШАЙБА BRACKET SCREW WASHER BRACKET SCREW |
1 | |
| 32 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
3 | |
| 33 | 21908 |
ГАЙКА (0.312-18), с кадмиевым покрытием NUT (.312-18) Cad Plated |
3 | |
| 34 | 15751T |
СКОБА WATER PUMP BRACE WATER PUMP |
1 | discontinued |
| 35 | 47461 |
ВИНТ (0.437-14 x 1.00) BRACE TO ENGINE (1") SCREW (.437-14 x 1.00) BRACE TO ENGINE (1") |
1 | |
| 36 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) BRACE SCREW LOCKWASHER (.437) BRACE SCREW |
1 | |
| 37 | 30315 |
ШАЙБА BRACE SCREW WASHER BRACE SCREW |
1 | superseded |
| 38 | 35786 |
ВИНТ (0.375-24 x 1.00) WATER PUMP BRACE (1") SCREW (.375-24 x 1.00) WATER PUMP BRACE (1") |
1 | |
| 39 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) BRACE SCREW LOCKWASHER (.375) BRACE SCREW |
1 | |
| 4 | 73275 |
ВИНТ (0.312-18 x 2.88) WATER PUMP (3") SCREW (.312-18 x 2.88) WATER PUMP (3") |
2 | |
| 4 | 99347 |
ВИНТ (0.312-18 x 3.75) WATER PUMP (3-3/4") SCREW (.312-18 x 3.75) WATER PUMP (3-3/4") |
3 | |
| 40 | 46335 |
ГАЙКА (.375-24) BRACE SCREW NUT (.375-24) BRACE SCREW |
1 | |
| 5 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) COVER SCREW WASHER (.328 x .562 x .062) COVER SCREW |
5 | |
| 6 | 94915 |
ПРОКЛАДКА COVER TO OUTER WEAR PLATE GASKET COVER TO OUTER WEAR PLATE |
1 | superseded |
| 7 | 94916 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА OUTER WEAR PLATE OUTER |
1 | |
| 8 | 94914 |
ПРОКЛАДКА BODY TO WEAR PLATE GASKET BODY TO WEAR PLATE |
2 | |
| 9 | 59504 |
ПРОБКА IMPELLER PLUG IMPELLER |
1 |
