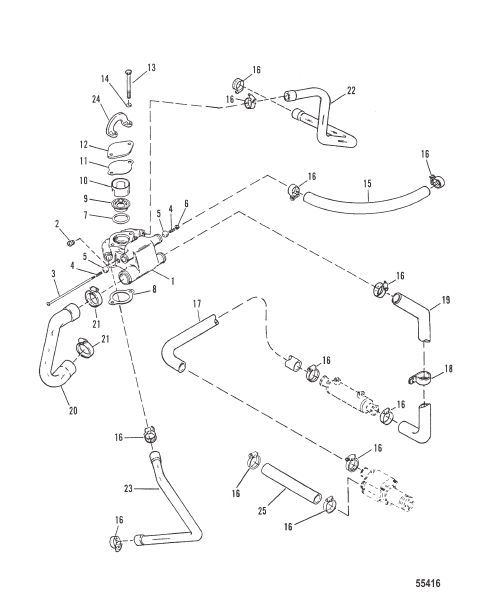

THERMOSTAT HOUSING NEW DESIGN
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 16413A3 |
КОРПУС В СБОРЕ Термостат HOUSING ASSEMBLY Thermostat |
1 | discontinued |
| 10 | 17495 |
РУКАВ SLEEVE |
1 | superseded |
| 11 | 331792 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 12 | 17494A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
1 | |
| 13 | 60410 |
ВИНТ (0.375-16 x 4.250) SCREW (.375-16 x 4.250) |
2 | |
| 14 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 15 | 3322070 |
РУКАВ (Общая длина 48.00") (STARBOARD/PORT) HOSE (48.00 Inches Bulk) (STARBOARD/PORT) |
2 | superseded |
| 15 | 3322070 |
РУКАВ (Общая длина 48.00") (STARBOARD) HOSE (48.00 Inches Bulk) (STARBOARD) |
1 | superseded |
| 15 | 817433 |
РУКАВ (MOLDED - PORT) HOSE (MOLDED - PORT) |
1 | discontinued |
| 16 | 32780 |
ЗАЖИМ CLAMP |
AR | superseded |
| 17 | 18320 |
РУКАВ OIL COOLER TO SEA PUMP HOSE OIL COOLER TO SEA PUMP |
1 | |
| 18 | 47715 |
ЗАЖИМ CLIP |
2 | discontinued |
| 19 | 160111 |
РУКАВ THERMOSTAT HOUSING TO OIL COOLER HOSE THERMOSTAT HOUSING TO OIL COOLER |
1 | discontinued |
| 2 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
1 | superseded |
| 20 | 89718 |
РУКАВ THERMOSTAT HOUSING TO WATER PUMP HOSE THERMOSTAT HOUSING TO WATER PUMP |
1 | superseded |
| 21 | 87268 |
ЗАЖИМ CLAMP |
2 | superseded |
| 22 | 897491 |
РУКАВ THERMOSTAT COVER (PORT) HOSE THERMOSTAT COVER (PORT) |
1 | |
| 23 | 897301 |
РУКАВ THERMOSTAT COVER (STARBOARD) HOSE THERMOSTAT COVER (STARBOARD) |
1 | |
| 24 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 25 | 1743570 |
РУКАВ (Общая длина 48.00") SEA PUMP TO DRIVE UNIT HOSE (48.00 Inches Bulk) SEA PUMP TO DRIVE UNIT |
1 | superseded |
| 3 | 17989 |
ВИНТ (№10-32 x 8.600) SCREW (#10-32 x 8.600) |
1 | |
| 4 | 75533 |
ПРУЖИНА SPRING |
2 | |
| 5 | 98475 |
ШАРИК Нейлон BALL Nylon |
2 | |
| 6 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | superseded |
| 7 | 30224 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.859 x 0.139) O-RING (1.859 x .139) |
1 | superseded |
| 8 | 530451 |
ПРОКЛАДКА GASKET |
1 | |
| 9 | 59137 |
ТЕРМОСТАТ (140 градусов) (143 ) THERMOSTAT (140 Degrees) (143 ) |
1 | superseded |
