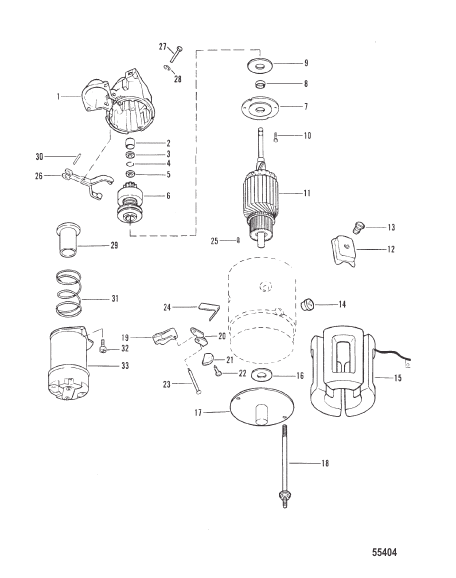

STARTER MOTOR 12
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 99418A2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 1 | 75666 |
КОРПУС HOUSING |
1 | discontinued |
| 10 | 79209 |
ВИНТ BEARING PLATE SCREW BEARING PLATE |
2 | discontinued |
| 11 | 75665 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 12 | N.S.S. |
Не продается отдельно POLE -FIELD COIL (DELCO REMY #810601) Not Sold Separate POLE -FIELD COIL (DELCO REMY #810601) |
4 | |
| 13 | N.S.S. |
Не продается отдельно POLE SHOE TO FIELD COIL (DELCO REMY #1968396) Not Sold Separate POLE SHOE TO FIELD COIL (DELCO REMY #1968396) |
4 | |
| 14 | N.S.S. |
Не продается отдельно FIELD COIL (DELCO REMY #1846097) Not Sold Separate FIELD COIL (DELCO REMY #1846097) |
1 | |
| 15 | 75664 |
КАТУШКА В СБОРЕ COIL ASSEMBLY |
1 | discontinued |
| 16 | 33258 |
ШАЙБА Кожа LEATHER - COMMUTATOR END FRAME WASHER Leather LEATHER - COMMUTATOR END FRAME |
1 | discontinued |
| 17 | 79211 |
РАМА COMMUTATOR END FRAME COMMUTATOR END |
1 | discontinued |
| 18 | N.S.S. |
Не продается отдельно THRU (DELCO REMY #1941111) Not Sold Separate THRU (DELCO REMY #1941111) |
1 | |
| 18 | N.S.S. |
Не продается отдельно THRU (DELCO REMY #1939970) Not Sold Separate THRU (DELCO REMY #1939970) |
1 | |
| 19 | 33284 |
ДЕРЖАТЕЛЬ INSULATED - FIELD FRAME BRUSH) HOLDER INSULATED - FIELD FRAME BRUSH) |
2 | discontinued |
| 2 | 33369 |
ВТУЛКА DRIVE END HOUSING BUSHING DRIVE END HOUSING |
1 | discontinued |
| 20 | 33283 |
ДЕРЖАТЕЛЬ FIELD FRAME BRUSH GROUND HOLDER FIELD FRAME BRUSH GROUND |
2 | discontinued |
| 21 | 33270 |
ЩЕТКА FIELD FRAME BRUSH FIELD FRAME |
4 | |
| 22 | N.S.S. |
Не продается отдельно BRUSH LEAD (DELCO REMY #1967747) Not Sold Separate BRUSH LEAD (DELCO REMY #1967747) |
2 | |
| 22 | N.S.S. |
Не продается отдельно BRUSH LEAD (DELCO REMY #443527) Not Sold Separate BRUSH LEAD (DELCO REMY #443527) |
2 | |
| 23 | 33294 |
ОПОРА GROUND AND INSULATED HOLDERS SUPPORT GROUND AND INSULATED HOLDERS |
2 | discontinued |
| 24 | 33285 |
ПРУЖИНА FIELD FRAME BRUSH SPRING FIELD FRAME BRUSH |
4 | discontinued |
| 25 | N.S.S. |
Не продается отдельно DOWEL - FIELD FRAME (DELCO REMY #1985696) Not Sold Separate DOWEL - FIELD FRAME (DELCO REMY #1985696) |
1 | |
| 26 | 71698 |
РЫЧАГ SHIFT LEVER SHIFT |
1 | discontinued |
| 27 | N.S.S. |
Не продается отдельно SHIFT LEVER (DELCO REMY #1945804) Not Sold Separate SHIFT LEVER (DELCO REMY #1945804) |
1 | |
| 28 | 33354 |
КОЛЬЦО Стопор STUD RING Retaining STUD |
1 | discontinued |
| 29 | 33317 |
ПЛУНЖЕР SHIFT LEVER PLUNGER SHIFT LEVER |
1 | discontinued |
| 3 | 33292 |
ВТУЛКА THRUST COLLAR THRUST |
1 | superseded |
| 30 | 79207 |
ШТИФТ PLUNGER TO SHIFT LEVER PIN PLUNGER TO SHIFT LEVER |
1 | discontinued |
| 31 | 46889 |
ПРУЖИНА PLUNGER RETURN SPRING PLUNGER RETURN |
1 | discontinued |
| 32 | N.S.S. |
Не продается отдельно SOLENOID SWITCH (DELCO REMY #9413260) Not Sold Separate SOLENOID SWITCH (DELCO REMY #9413260) |
2 | |
| 33 | 18080 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ (3.625) SOLENOID SWITCH (3.625) |
1 | discontinued |
| 4 | 33290 |
КОЛЬЦО Стопор RETAINING - PINION STOP COLLAR RING Retaining RETAINING - PINION STOP COLLAR |
1 | discontinued |
| 5 | 33291 |
ВТУЛКА PINION STOP COLLAR PINION STOP |
1 | discontinued |
| 6 | 79205 |
ПРИВОД В СБОРЕ CLUTCH DRIVE ASSEMBLY CLUTCH |
1 | superseded |
| 7 | 79396 |
ПЛАСТИНА BEARING PLATE BEARING |
1 | discontinued |
| 8 | 71694 |
ВТУЛКА BEARING PLATE BUSHING BEARING PLATE |
1 | discontinued |
| 9 | 68614 |
ШАЙБА BEARING PLATE WASHER BEARING PLATE |
1 | discontinued |
