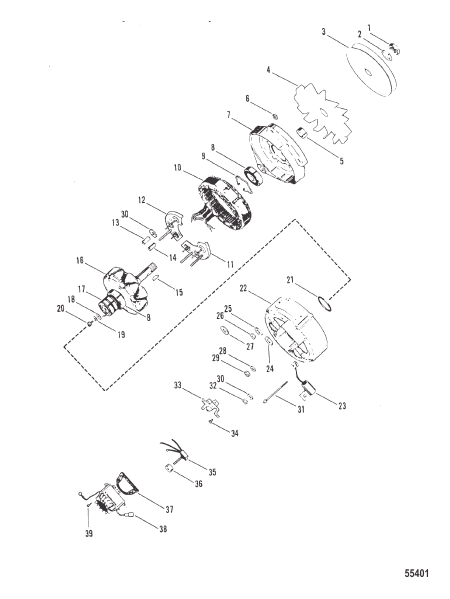

ALTERNATOR (MOTOROLA) MOTOROLA #8MR2039K
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) (55 AMP) ALTERNATOR ASSEMBLY (55 Ampere) (55 AMP) |
1 | superseded |
| 1 | 7027 |
ГАЙКА FAN AND PULLEY TO ROTOR NUT FAN AND PULLEY TO ROTOR |
1 | discontinued |
| 10 | 8636 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | discontinued |
| 11 | 7009 |
ДИОД NEGATIVE DIODE NEGATIVE |
1 | discontinued |
| 12 | 7010 |
ТЕПЛОПОГЛОЩАЮЩИЙ POSITIVE HEAT SINK POSITIVE |
1 | discontinued |
| 13 | 7020 |
РУКАВ INSULATOR SLEEVE INSULATOR |
1 | discontinued |
| 14 | 7018 |
РУКАВ INSULATOR SLEEVE INSULATOR |
1 | discontinued |
| 15 | 7034 |
КЛЮЧ ROTOR KEY ROTOR |
1 | discontinued |
| 16 | 8635 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 17 | 7014 |
ТОКОСОБИРАТЕЛЬНОЕ КОЛЬЦО SLIP RING |
1 | discontinued |
| 18 | 7206 |
ШАЙБА ROTOR SCREW WASHER ROTOR SCREW |
1 | discontinued |
| 19 | 7207 |
СТОПОРНАЯ ШАЙБА ROTOR SCREW LOCKWASHER ROTOR SCREW |
1 | discontinued |
| 2 | 7033 |
СТОПОРНАЯ ШАЙБА FAN AND PULLEY NUT LOCKWASHER FAN AND PULLEY NUT |
1 | discontinued |
| 20 | 7029 |
ВИНТ (5/8") ROTOR SHAFT (5/8") SCREW (5/8 In.) ROTOR SHAFT (5/8") |
1 | discontinued |
| 21 | 7007 |
ФИКСАТОР ROTOR SHAFT BEARING RETAINER ROTOR SHAFT BEARING |
1 | discontinued |
| 22 | 7003 |
КОРПУС REAR HOUSING REAR |
1 | discontinued |
| 23 | 7035 |
КОНДЕНСАТОР CONDENSER |
1 | superseded |
| 24 | 7023 |
РАЗЪЕДИНИТЕЛЬ REGULATOR TERMINAL STUD INSULATOR REGULATOR TERMINAL STUD |
1 | discontinued |
| 25 | 7024 |
ШАЙБА CONDENSER TERMINAL STUD WASHER CONDENSER TERMINAL STUD |
1 | discontinued |
| 26 | 7025 |
ГАЙКА TERMINAL STUD NUT TERMINAL STUD |
1 | discontinued |
| 27 | 7208 |
ШАЙБА TERMINAL STUD WASHER TERMINAL STUD |
1 | discontinued |
| 28 | 7032 |
СТОПОРНАЯ ШАЙБА TERMINAL STUD LOCKWASHER TERMINAL STUD |
2 | discontinued |
| 29 | 7026 |
ГАЙКА TERMINAL ATTACHING NUT TERMINAL ATTACHING |
1 | discontinued |
| 3 | 8637 |
ШКИВ DRIVE END FRAME PULLEY DRIVE END FRAME |
1 | discontinued |
| 30 | 7022 |
ШАЙБА CONDENSER TERMINAL STUD WASHER CONDENSER TERMINAL STUD |
1 | discontinued |
| 31 | 8638 |
СКВОЗНОЙ БОЛТ THRU BOLT |
4 | discontinued |
| 32 | 7021 |
ГАЙКА CONDENSER TERMINAL ATTACHING NUT CONDENSER TERMINAL ATTACHING |
1 | discontinued |
| 33 | 7011 |
ДЕРЖАТЕЛЬ В СБОРЕ Щетка HOLDER ASSEMBLY Brush |
1 | discontinued |
| 34 | 7030 |
ВИНТ (1/2") BRUSH HOLDER (1/2") SCREW (1/2 In.) BRUSH HOLDER (1/2") |
2 | discontinued |
| 35 | 7008 |
ДИОДНАЯ ТРИАДА DIODE TRIO |
1 | discontinued |
| 36 | 7019 |
ПРОСТАВКА DIODE TRIO SPACER DIODE TRIO |
1 | discontinued |
| 37 | 7013 |
ПРОКЛАДКА VOLTAGE REGULATOR GASKET VOLTAGE REGULATOR |
1 | discontinued |
| 38 | 7036 |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | superseded |
| 39 | 7015 |
ВИНТ VOLTAGE REGULATOR ATTACHING SCREW VOLTAGE REGULATOR ATTACHING |
4 | discontinued |
| 4 | 7004 |
ВЕНТИЛЯТОР DRIVE END FRAME FAN DRIVE END FRAME |
1 | discontinued |
| 5 | 813969 |
ПРОСТАВКА FAN TO DRIVE END FRAME SPACER FAN TO DRIVE END FRAME |
1 | discontinued |
| 6 | 7028 |
ГАЙКА THRU BOLT ATTACHING NUT THRU BOLT ATTACHING |
4 | discontinued |
| 7 | 7000 |
КРЫШКА В СБОРЕ FRONT COVER ASSEMBLY FRONT |
1 | discontinued |
| 8 | 7005 |
ПОДШИПНИК Шарик DRIVE END BEARING Ball DRIVE END |
2 | discontinued |
| 9 | 7006 |
КОЛЬЦО DRIVE END BALL BEARING RING DRIVE END BALL BEARING |
1 | discontinued |
