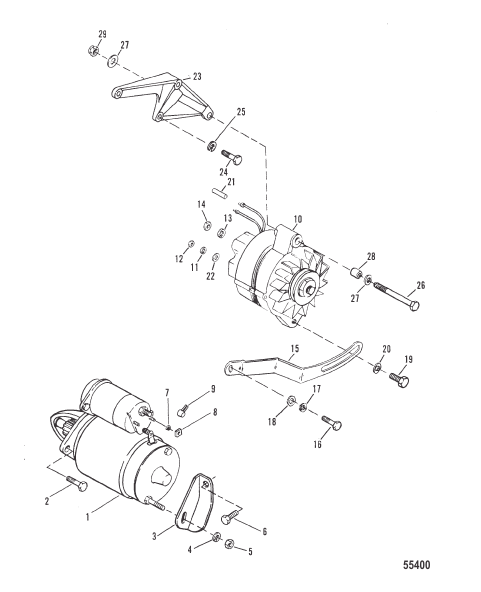

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 99418A2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 1 | 812428A3 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 10 | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) ALTERNATOR ASSEMBLY (55 Ampere) |
1 | superseded |
| 11 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь ALTERNATOR TERMINAL LOCKWASHER (#10) Stainless Steel ALTERNATOR TERMINAL |
1 | |
| 12 | 79989 |
ГАЙКА (№10-24), нержавеющая сталь ALTERNATOR TERMINAL (10-24) NUT (#10-24) Stainless Steel ALTERNATOR TERMINAL (10-24) |
1 | |
| 13 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь ALTERNATOR TERMINAL LOCKWASHER (.250) Stainless Steel ALTERNATOR TERMINAL |
1 | |
| 14 | 64015 |
ГАЙКА (0.250-20) ALTERNATOR TERMINAL (1/4-20) NUT (.250-20) ALTERNATOR TERMINAL (1/4-20) |
1 | |
| 15 | 85013T |
СКОБА ALTERNATOR ADJUSTING BRACE ALTERNATOR ADJUSTING |
1 | |
| 16 | 47462 |
ВИНТ (0.437-14 x 1.250) ALTERNATOR BRACE SCREW (.437-14 x 1.250) ALTERNATOR BRACE |
1 | |
| 17 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) ALTERNATOR BRACE LOCKWASHER (.437) ALTERNATOR BRACE |
1 | |
| 18 | 31263 |
ШАЙБА ALTERNATOR BRACE SCREW WASHER ALTERNATOR BRACE SCREW |
1 | |
| 19 | 29198 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.875) ALTERNATOR BRACE (7/8") SCREW AND LOCKWASHER (.312-18 x .875) ALTERNATOR BRACE (7/8") |
1 | |
| 2 | 94435 |
БОЛТ (0.375-16 x 4.600) STARTER MOTOR (4-21/32") 12" STARTER MOTOR BOLT (.375-16 x 4.600) STARTER MOTOR (4-21/32") 12" STARTER MOTOR |
2 | superseded |
| 2 | 813642 |
ВИНТ SCREW |
2 | superseded |
| 20 | 26168 |
ШАЙБА ALTERNATOR BRACE SCREW WASHER ALTERNATOR BRACE SCREW |
1 | |
| 21 | 5790811 |
РУКАВ (Общая длина 10.00") ALTERNATOR LEADS SLEEVE (10.00 Inches Bulk) ALTERNATOR LEADS |
2 | |
| 22 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) ALTERNATOR TERMINAL WASHER Phenolic (.27 x .81 x .062) ALTERNATOR TERMINAL |
1 | |
| 23 | 96116A1 |
КРОНШТЕЙН ALTERNATOR BRACKET ALTERNATOR |
1 | superseded |
| 24 | 37612 |
ВИНТ (0.375-16 x 1.250) ALTERNATOR BRACKET (1-1/4") SCREW (.375-16 x 1.250) ALTERNATOR BRACKET (1-1/4") |
1 | |
| 24 | 34354 |
ВИНТ (0.375-16 x 1.50) ALTERNATOR BRACKET (1-1/2") SCREW (.375-16 x 1.50) ALTERNATOR BRACKET (1-1/2") |
2 | |
| 25 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) ALTERNATOR BRACKET SCREW LOCKWASHER (.375) ALTERNATOR BRACKET SCREW |
3 | |
| 26 | 48308 |
ВИНТ (0.375-24 x 3.750) ALTERNATOR (3-3/4") SCREW (.375-24 x 3.750) ALTERNATOR (3-3/4") |
1 | |
| 27 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) ALTERNATOR BRACKET SCREW WASHER (.406 x .734 x .063) ALTERNATOR BRACKET SCREW |
2 | |
| 28 | 33186 |
ВТУЛКА ALTERNATOR BRACKET SCREW BUSHING ALTERNATOR BRACKET SCREW |
1 | |
| 29 | 23161 |
ГАЙКА (.375-24) ALTERNATOR BRACKET SCREW NUT (.375-24) ALTERNATOR BRACKET SCREW |
1 | |
| 3 | 89057 |
СКОБА STARTER MOTOR 12" STARTER MOTOR BRACE STARTER MOTOR 12" STARTER MOTOR |
1 | disc. |
| 4 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь STARTER MOTOR STUD 12" STARTER MOTOR WASHER (.281 x .500 x .060) Stainless Steel STARTER MOTOR STUD 12" STARTER MOTOR |
2 | superseded |
| 5 | 72008 |
ГАЙКА (0.250-20) BATTERY TERMINAL (1/4-20) 12" STARTER MOTOR NUT (.250-20) BATTERY TERMINAL (1/4-20) 12" STARTER MOTOR |
1 | superseded |
| 5 | 15874 |
ГАЙКА (M10) BATTERY TERMINAL (10MM) 12" STARTER MOTOR NUT (M10) BATTERY TERMINAL (10MM) 12" STARTER MOTOR |
1 | |
| 5 | 15874 |
ГАЙКА (M10) BATTERY TERMINAL (10MM) 8" STARTER MOTOR NUT (M10) BATTERY TERMINAL (10MM) 8" STARTER MOTOR |
1 | |
| 6 | 35765A1 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.625) BRACE TO ENGINE (5/8") 12" STARTER MOTOR SCREW AND LOCKWASHER (.312-18 x .625) BRACE TO ENGINE (5/8") 12" STARTER MOTOR |
1 | disc. |
| 7 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь STARTER TERMINAL (#8) 12" STARTER MOTOR LOCKWASHER (#8) Stainless Steel STARTER TERMINAL (#8) 12" STARTER MOTOR |
2 | |
| 8 | 26419 |
ГАЙКА (№8-32), латунь STARTER SWITCH TERMINAL (8-32) 12" STARTER MOTOR NUT (#8-32) Brass STARTER SWITCH TERMINAL (8-32) 12" STARTER MOTOR |
1 | |
| 8 | 400211 |
ГАЙКА (M5), нержавеющая сталь STARTER SWITCH TERMINAL (5MM) 12" STARTER MOTOR NUT (M5) Stainless Steel STARTER SWITCH TERMINAL (5MM) 12" STARTER MOTOR |
2 | |
| 8 | 400211 |
ГАЙКА (M5), нержавеющая сталь STARTER SWITCH TERMINAL (5MM) 8" STARTER MOTOR NUT (M5) Stainless Steel STARTER SWITCH TERMINAL (5MM) 8" STARTER MOTOR |
2 | |
| 9 | 79695 |
ЧЕХОЛ Изолятор – черный INSULATOR - STARTER TERMINAL BOOT Insulator - Black INSULATOR - STARTER TERMINAL |
1 | superseded |
