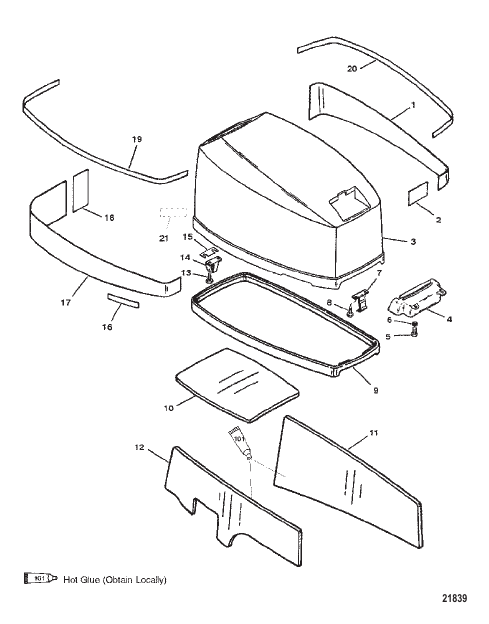

Top Cowl
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Component of Decal Set NOT SOLD SEPARATE Decal - Component of Decal Set |
1 | |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Sound Blanket-Top-Part of Reference #12 NOT SOLD SEPARATE Sound Blanket-Top-Part of Reference #12 |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Sound Blanket-Port-Part of Reference #12 NOT SOLD SEPARATE Sound Blanket-Port-Part of Reference #12 |
1 | |
| 12 | 815625A1 |
КОМПЛЕКТ ЗВУКОПОГЛОТИТЕЛЯ SOUND BLANKET KIT |
1 | superseded |
| 13 | 400033 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
2 | |
| 14 | 812413A1 |
КРОНШТЕЙН В СБОРЕ Ролик BRACKET ASSEMBLY Roller |
1 | |
| 15 | 18517 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Защелка кожуха SHIM Cowl Latch |
AR | |
| 16 | 111851 |
НАКЛЕЙКА РЕВЕРСА (Use where Applicable) (BLACK) SHIFT DECAL (Use where Applicable) (BLACK) |
1 | |
| 16 | 82408812 |
НАКЛЕЙКА Переключение передач (Use where Applicable) (GRAY) DECAL Shift (Use where Applicable) (GRAY) |
1 | discontinued |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Component of Decal Set NOT SOLD SEPARATE Decal - Component of Decal Set |
1 | |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Component of Decal Set NOT SOLD SEPARATE Decal - Component of Decal Set |
1 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Bottom Stripe (MARINER) NOT SOLD SEPARATE Decal-Bottom Stripe (MARINER) |
1 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Component of Decal Set NOT SOLD SEPARATE Decal - Component of Decal Set |
1 | |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Top Stripe (MARINER) NOT SOLD SEPARATE Decal-Top Stripe (MARINER) |
1 | |
| 21 | 8555775 |
НАКЛЕЙКА Данные сертификата EPA (INSIDE TOP COWL) (1998 - USA) DECAL EPA Label Information (INSIDE TOP COWL) (1998 - USA) |
1 | superseded |
| 21 | 855920 |
НАКЛЕЙКА Данные сертификата EPA (INSIDE TOP COWL) (1998 - EXPORT) DECAL EPA Label Information (INSIDE TOP COWL) (1998 - EXPORT) |
1 | discontinued |
| 3 | 9163A19 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (BLACK) TOP COWL ASSEMBLY (BLACK) |
1 | superseded |
| 3 | 9163A21 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (SILVER) TOP COWL ASSEMBLY (SILVER) |
1 | superseded |
| 3 | 9163A20 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (GRAPHITE GRAY) TOP COWL ASSEMBLY (GRAPHITE GRAY) |
1 | superseded |
| 4 | 44311F3 |
ЭКРАН (REAR) (BLACK) SHIELD (REAR) (BLACK) |
1 | |
| 4 | 44311F2 |
ЭКРАН (REAR) (GRAY) SHIELD (REAR) (GRAY) |
1 | discontinued |
| 4 | 44311F5 |
ЭКРАН (REAR) (SILVER) SHIELD (REAR) (SILVER) |
1 | discontinued |
| 4 | 44311F4 |
ЭКРАН (REAR) (GRAPHITE GRAY) SHIELD (REAR) (GRAPHITE GRAY) |
1 | discontinued |
| 5 | 400018 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
2 | |
| 6 | 73288 |
ШАЙБА (0.220 x 0.500 x 0.030), нержавеющая сталь WASHER (.220 x .500 x .030) Stainless Steel |
2 | |
| 7 | 17221 |
ЗАЩЕЛКА Кожух LATCH Cowl |
1 | |
| 8 | 400033 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
2 | |
| 9 | 17773A2 |
УПЛОТНЕНИЕ Кожух SEAL Cowl |
1 | discontinued |
