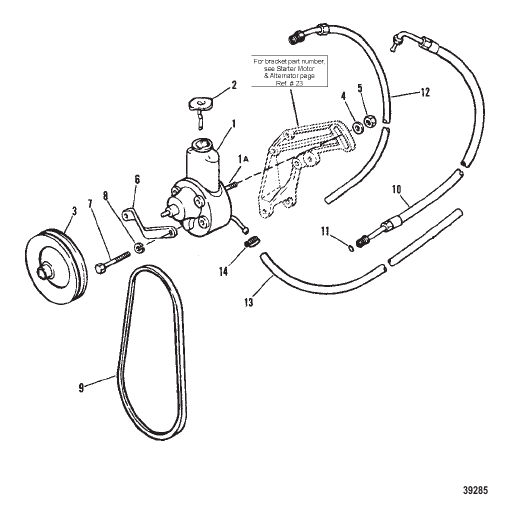

POWER STEERING COMPONENTS CAST MOUNTING BRACKET
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 90496A5 |
НАСОС В СБОРЕ POWER STEERING PUMP ASSEMBLY POWER STEERING |
1 | superseded |
| 10 | 90494 |
РУКАВ PRESSURE (FITTINGS ON BOTH ENDS) HOSE PRESSURE (FITTINGS ON BOTH ENDS) |
1 | |
| 11 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) PRESSURE HOSE END O-RING (.301 x .064) PRESSURE HOSE END |
1 | |
| 12 | 9884339 |
ШЛАНГ В СБОРЕ (Общая длина 72.00") RETURN (FITTINGS ON ONE END) HOSE ASSEMBLY (72.00 Inches Bulk) RETURN (FITTINGS ON ONE END) |
1 | |
| 13 | 5251914 |
РУКАВ (Общая длина 53.00") PUMP TO OIL COOLER HOSE (53.00 Inches Bulk) PUMP TO OIL COOLER |
1 | superseded |
| 14 | 35830 |
ЗАЖИМ HOSE ATTACHING CLAMP HOSE ATTACHING |
3 | superseded |
| 1A | 41877 |
ШПИЛЬКА (M10) POWER STEERING PUMP STUD (M10) POWER STEERING PUMP |
1 | discontinued |
| 2 | 95805 |
ПРОБКА POWER STEERING PUMP CAP POWER STEERING PUMP |
1 | |
| 3 | 73873A1 |
ШКИВ POWER STEERING PUMP PULLEY POWER STEERING PUMP |
1 | |
| 4 | 34567 |
ШАЙБА PUMP STUD (BRACE SLOT) WASHER PUMP STUD (BRACE SLOT) |
1 | |
| 5 | 90517 |
ГАЙКА (M10) MOUNTING STUD NUT (M10) MOUNTING STUD |
2 | |
| 6 | 98644A1 |
СКОБА PUMP MOUNTING BRACE PUMP MOUNTING |
1 | discontinued |
| 7 | 40001188 |
ВИНТ (M10 x 20) PUMP MOUNTING BRACE SCREW (M10 x 20) PUMP MOUNTING BRACE |
1 | discontinued |
| 8 | 400248 |
СТОПОРНАЯ ШАЙБА (M10) BRACE SCREW LOCKWASHER (M10) BRACE SCREW |
1 | |
| 9 | 37619T |
КЛИНОВОЙ РЕМЕНЬ POWER STEERING PUMP (52") V BELT POWER STEERING PUMP (52") |
1 | superseded |
